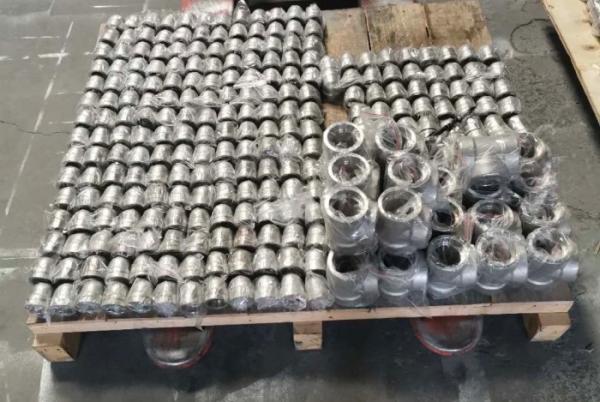

F316 F316H Stainless Steel Pipe Fittings Forged Pipe Flanges For Construction
F316 F316H Stainless Steel Pipe Fittings Forged Pipe Flanges For Construction
F316 F316H Stainless Steel Pipe Fittings Forged Pipe Flanges For Construction
F316 F316H Stainless Steel Pipe Fittings Forged Pipe Flanges For Construction
F316 F316H Stainless Steel Pipe Fittings Forged Pipe Flanges For Construction
F316 F316H Stainless Steel Pipe Fittings Forged Pipe Flanges For Construction
Specifications
Brand Name :
ZZ
Model Number :
1/8''-4''
Certification :
API/CE/ISO/TUV/ABS
Place of Origin :
CHINA
MOQ :
1 Piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000 PCS / Month
Delivery Time :
7 working days or negotiation
Packaging Details :
Wooden Cases and Pallaets, or as per customer demand
Material :
Stainless Steel,SS316L
Shape :
Equal,,Union,Reducing,Round
Surface treatment :
Solution Treatment,Polishing,Acid Pickling,rust-proof oil
Type :
Elbow,Cross,Coupling,Tee, Cap, Plug
Application :
Oil,Petroleum,Chemical,Construction,Connect Pipes
Packing :
wooden case,Bags,Bundles,Carton /Wooden Box /Poly Wood Box
Description

ASTM A182 F316 / 316L / F316H Stainless Steel Forged Pipe Fittings & Flanges

ASTM A182 F316 / 316L /316H is the specifcation for stainless steel forged fittings and flanges, it is representative grade in Stainless steel material. ASTM A182 is used in pressure system of pipeline, it include flanges, fittings and similar parts to specificed dimensions or to dimensional standards, such as the ASME specificaiton.

Markings on Stainless Steel Forged Fittings

  • Size
  • Rating
  • Material Grade
  • Heat Number
  • Customer Logo

Specification of Stainless Steel Socket Weld Fittings

Specification

ASTM A182 & ASME SA182/ ANSI/ASME B16.11 / MSS-SP-43/79/83

Size Range

1/8" NB to 4"NB in Class 3000lb, 6000lb, 9000lb

Type

Threaded Elbow, Tee, Cross, Coupling, Cap, Lateral Tee, Union
Grades ASTM A182 F304/304L/304H, F316/316L/316H, F321/321H, F347/347H, F51, F53, F55, F56, F60
Thread Type NPT, PT, BSPP, BSPT

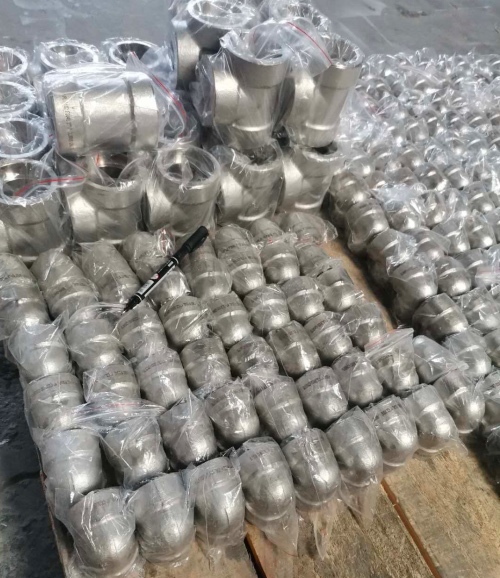

F316 F316H Stainless Steel Pipe Fittings Forged Pipe Flanges For Construction

Standard for Stainless Steel Forged Pipe Fittings

ASME B16.11

This Standard covers ratings, dimensions, tolerances, marking and material requirements for socket-welding and Threaded Forged Fittings.

ASTM A182 / A182M

Standard Specification for Forged Fittings, and Parts for High-Temperature Service

MSS SP-83

Class 3000 and 6000 Pipe Unions, Socket Welding and Threaded

MSS SP-95

This Standard Practice covers dimensions, finish, tolerances, marking, and material for carbon steel and alloy steel Swaged Nipples (male end reducing fittings), NPS 1/4 through NPS 12 and Bull Plugs (hollow or solid male closures) NPS 1/8 through NPS 12.

ASTM A182 F316 Chemical Composition

Grade C Si Mn P S Cr Ni Mo
F316 0.08 1.0 2.0 0.045 0.03 16.0 - 18.0 10.0 - 14.0 2.0 - 3.0
F316H 0.04 - 0.1 1.0 2.0 0.045 0.03 16.0 - 18.0 10.0 - 14.0 2.0 - 3.0
F316L 0.03 1.0 2.0 0.045 0.03 16.0 - 18.0 10.0 - 15.0 2.0 - 3.0

ASTM A182 F316 Mechnical Properties

Grade Tensile Strength(Mpa) Yield Tensile (Mpa) Elongation (%) Hardness (HB)
F316 515 205 30 -
F316H 515 205 30 -
F316L 485 170 30 -

SS Threaded Fittings Features

  1. Corrosion Resistant
  2. Hgh Pressure
  3. High Temperature
  4. Rust Proof Finish
  5. Smooth
  6. Excellent Stress
