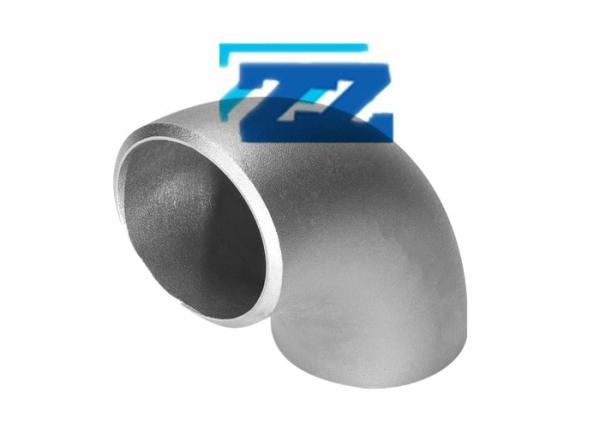

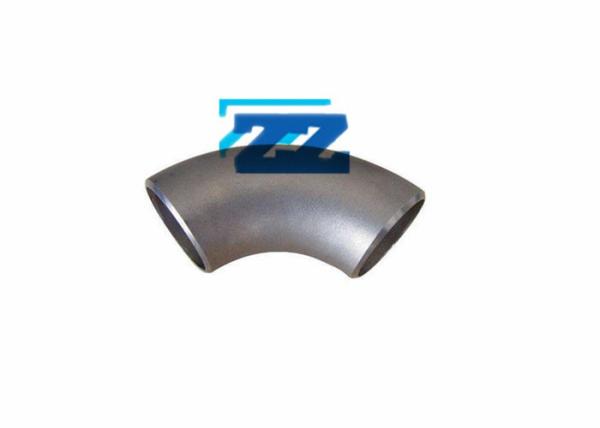

Buttweld SS304 6×4 Sch10S 90 Degree Weld Elbows Sch 10S
Buttweld SS304 6×4 Sch10S 90 Degree Weld Elbows Sch 10S
Buttweld SS304 6×4 Sch10S 90 Degree Weld Elbows Sch 10S
Buttweld SS304 6×4 Sch10S 90 Degree Weld Elbows Sch 10S
Buttweld SS304 6×4 Sch10S 90 Degree Weld Elbows Sch 10S
Buttweld SS304 6×4 Sch10S 90 Degree Weld Elbows Sch 10S
Specifications
Brand Name :
ZZ
Model Number :
ASTM A403 WP304
Certification :
ISO,CE
Place of Origin :
CHINA
MOQ :
1 Piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50000 PCS Per Month
Delivery Time :
5-20 Days
Packaging Details :
Wooden Case & Pallet
Material :
Stainless Steel 304
Standard :
ANSI, DIN, ASME B16.9
Degree :
45 and 90 Degree
Size :
1/2"-60
Thickness :
Sch 10s, 20, 40, STD, XS, 80, 100, 120, 140, 160, XXS
Type :
Seamless and Welded
Package :
Wooden Cases and Pallet
Description

Reducing Elbow Buttweld ASME B16.9 Steel Pipe Elbow 6 x 4 " Sch 10S SS 304

Reducing Elbow Buttweld Fittings

Zizi offers complete products types of steel pipe fittings and exports Reducing Elbow Buttweld ASME B16.9 Steel Pipe Elbow 6 x 4 " Sch 10S SS 304 to Saudi Arabia.

Buttweld elbow has extensive dimension ranges and it suits for different induries with high and moderate pressure and temperature. The diameter of the two end could be same or different to connect pipes.

90 Degree Elbow Dimensions

Size NPS 1/2″ to 48″
Thickness Sch 10s, 20, STD, 40, 60, XS, 80, 100, 120,140, 160, XXS
Standard DL/T515, SY5257, ASME B16.9 or customer’s technical drawings
Bend Angle 15°, 30°, 45°, 60°, 90°, 135°, 180° or at customer’s option
Straight Length L Usually between 300mm and 1500mm
Carbon Steel ASTM A234 WPB, A860 WPHY42, WHPY52, WPHY60, WHPY65, WPHY70
Stainless Steel ASTM A403 WP304/304L, WP304H, WP316/316L, WP310, WP317
Alloy Steel ASTM A234 WP1, WP5, WP9, WP11, WP12, WP22, WP91
Duplex Steel ASTM A815 UNS S31803, S32205, S32550, S32750, S32760
Low Temp Carbon Steel ASTM A420 WPL3,WPL6, WPL9

ASTM A403 WP304 Chemical Composition

C Mn P S Si Ni Cr
0.08 2 0.045 0.03 1 8-11

18-20

ASTM A403 WP304 Mechanical Properties

Tensile Strength Yield Strength Elongation
515 (Mpa) 205 (Mpa) 30 (%)

How to Calculate Pipe Elbow Weight

W=0.0387 * S( D – S ) * R / 1000

W = Weight (kg/piece).

S = Thickness Schedule.

D = Nominal Diameter.

R= Radius.

Package of 6" x 4" Reducing Elbow

  • Wrapped pipe fittings with plastic foam.
  • Packed reducing elbows under 16" into wooden cases.
  • Tagged labers on the outside of the package for easy indentification.

Inspection of Reducing Elbow ASME B16.9

  • Visual check the surface to remove fittings with dents, die marks, porosity and undercuts.
  • Check the marking. Such as size, material grade, pressure, heat no.
  • Measure the sizes and check the value according to ASME B16.9.

Advantage of Steel Pipe Elbow

  • Reasonable Price
  • High Quality
  • Safe Package
  • Reliable Shipment
