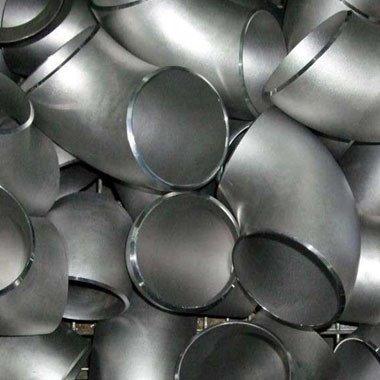

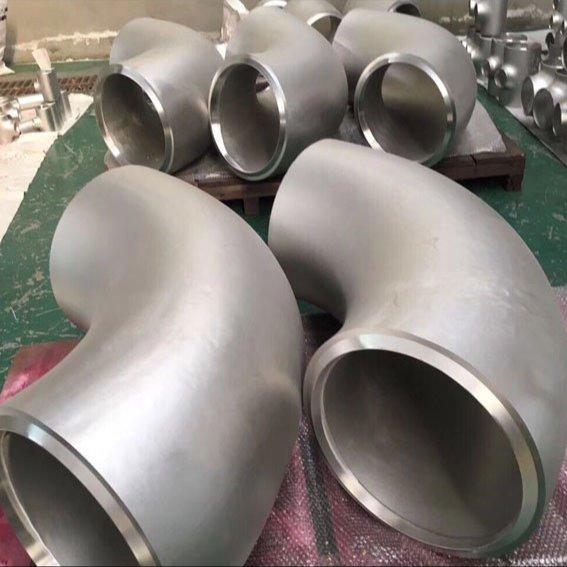

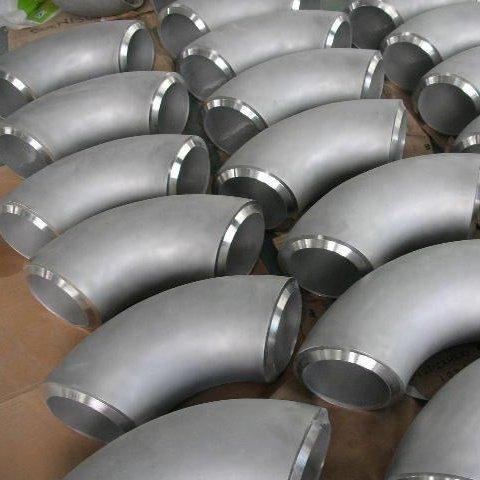

ASTM A403 Seamless Cold Forming SS304 Butt Weld Elbow
ASTM A403 Seamless Cold Forming SS304 Butt Weld Elbow
ASTM A403 Seamless Cold Forming SS304 Butt Weld Elbow
ASTM A403 Seamless Cold Forming SS304 Butt Weld Elbow
ASTM A403 Seamless Cold Forming SS304 Butt Weld Elbow
ASTM A403 Seamless Cold Forming SS304 Butt Weld Elbow
Specifications
Brand Name :
ZZ
Model Number :
1/2''-80''
Certification :
API/ISO/CE/TUV/ABS
Place of Origin :
CHINA
MOQ :
1 PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000 ton per year
Delivery Time :
7 working days
Packaging Details :
Wooden Case & Pallet
Material :
WP304 / 316 / 317 / 310S / 321
Size :
1/2''-80"
Shape :
Equal,Reducing
Packing :
Wooden Case, Pallet
Technics :
Butt weld,Cold Forming
Surface treatment :
Solution Treatment,Polishing,Acid Pickling
Description

Stainless steel butt welding elbow can be made by seamless pipes and steel plates, the common grades are ASTM A403 WP 304 and 316. They are mostly used for pressure piping applications. Our stainless steel pipe fittings limit types of localized corrosion and are indispensable to applicatons requiring compact but flexible seals. Restraining deformities and cracks under high temperatures.

Zizi Engineering is one of the top manufacturer, exporter and supplier of steel pipe fittings & flanges which are available in various sizes, dimension and shapes according to our client’s requirement. We are at the forefront of innocation in both product lines and after seals services. That's why we constantly upgrade our pipe fittings and services to meet market expecations and demands, We re reputed as an execllent quality ASTM A403 WP304 and 316 fittings suppliers in the industry.

Specification of Stainless Steel Butt Welding Elbow

Standard

ASTM A403, ASME B16.9

Size

1/2” NB to 80” NB / DN 15 to 2000

Schedule

Sch 10S, 20, 30, STD, 40S, 60, XS, 80S, 100,120,140,160S,XXS
Type Seamless or Welded
Grade ASTM A403 WP304, 304H, 304L, 316, 316L,316H,321,321H,347,347H

Type of Stainless Steel Butt Welding Fittings

ASTM A403 Seamless Cold Forming SS304 Butt Weld Elbow

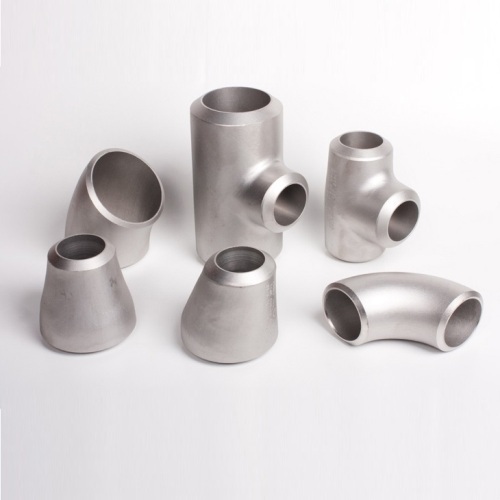

Stainless steel butt welding fittings are including bends, elbows, reducers, tees, caps, cross and stub end.They can be seamless and ERW pipe fittings, seamless fittings are made from seamless steel pipes, ERW fittings are made by ERW steel pipes while welded large diameter fittings are produced by steel plates.

Stainless Steel Pipe Elbow Chemical Composition

Grade C Si Mn P S Cr Ni Mo
WP304 0.08 1.0 2.0 0.045 0.03 18 - 20 8.0 - 11.0 -
WP304H 0.04 - 0.1 1.0 2.0 0.045 0.03 18 - 20 8.0 - 11.0 -
WP304L 0.03 1.0 2.0 0.045 0.03 18 - 20 8.0 - 12.0 -
WP316 0.08 1.0 2.0 0.045 0.03 16.0 - 18.0 10.0 - 14.0 2.0 - 3.0
WP316H 0.04 - 0.1 1.0 2.0 0.045 0.03 16.0 - 18.0 10.0 - 14.0 2.0 - 3.0
WP316L 0.03 1.0 2.0 0.045 0.03 16.0 - 18.0 10.0 - 15.0 2.0 - 3.0
WP321 0.08 1.0 2.0 0.045 0.03 17.0 - 19.0 9.0 - 12.0 -
WP321H 0.04 - 0.1 1.0 2.0 0.045 0.03 17.0 - 19.0 9.0 - 12.0 -
WP347 0.08 1.0 2.0 0.045 0.03 17.0 - 20.0 9.0 - 13.0 -
WP347H 0.04 - 0.1 1.0 2.0 0.045 0.03 17.0 - 20.0 9.0 - 13.0 -

Stainless Steel Pipe Elbow Mechnical Properties

Grade Tensile Strength (Mpa) Yield Tensile (Mpa) Elongation (%) Hardness (HB)
WP304 515 205 28 -
WP304H 515 205 28 -
WP304L 485 170 28 -
WP316 515 205 28 -
WP316H 515 205 28 -
WP316L 485 170 28 -
WP321 515 205 28 -
WP321H 515 205 28 -
WP347 515 205 28 -
WP347H 515 205 28 -

Delivery

Within 15 days or asap if we have stock.

Types of Packing

Wooden Case

Crates ( Steel/Wooden)

Features

End of butt weld fittings are protected by plastic caps.

Bundles strapped with plastic strips

Packing list laminated with case/crate.

Application Industries

  • Off-Shore Oil Drilling Companies
  • Power Generation
  • Petrochemicals
  • Sea Water Equipment
  • Heat Exchangers
  • Condensers
  • Gas Processing
  • Specialty Chemicals
  • Pharmaceuticals
  • Pharmaceutical Equipment
  • Chemical Equipment
  • Pulp and Paper Industry
