Stainless Steel Industrial Juicer Machine / Industrial Juicing Equipment
Stainless Steel Industrial Juicer Machine / Industrial Juicing Equipment
Stainless Steel Industrial Juicer Machine / Industrial Juicing Equipment
Stainless Steel Industrial Juicer Machine / Industrial Juicing Equipment
Stainless Steel Industrial Juicer Machine / Industrial Juicing Equipment
Stainless Steel Industrial Juicer Machine / Industrial Juicing Equipment
Specifications
Model Number :
FR
Certification :
ISO/CE
MOQ :
One Set
Price :
NEGOTIABLE
Payment Terms :
T/T,L/C,Western Union,Trade Assurance
Supply Ability :
100SET PER MONTH
Delivery Time :
WITHIN 7-10 WORK DAYS
Packaging Details :
Sea worthy Wooden Case
Name :
FR-1.5 waste dewatering machine
capacity :
1.5tons per hour
main power :
5.5kw
voltage :
380v/50hz/3phase other voltage can be customized
shredder power :
7.5kw
material :
304 stainless steel for the suspension contacts part,add fee can customized to be whole stainless steel
weight :
1200kg
dimension :
2200*1080*1600mm
Description

Waste vegetable dewater machine/Vegetable market garbage dewatering machine

Application

(1) This dewater machine have two functions,it can crush the large size raw material first,then extract to be juice,it is suitable for extracting juice from grape, tomato, fruits and vegetables. separating residues and juice.Also suit for cassava residue( Vietnam cassava residue), coffee extraction residue, wheat bran, soybean residue, corncob residue, corn residue, vegetable market food waste,kitchen waste,beer residue ,wheat grass,ect

(2) Its range of extracting ratio is very wide. The space between screw stem and cylinder can be adjusted according to different material extracted.

Stainless Steel Industrial Juicer Machine / Industrial Juicing Equipment

Features of dewatering machine

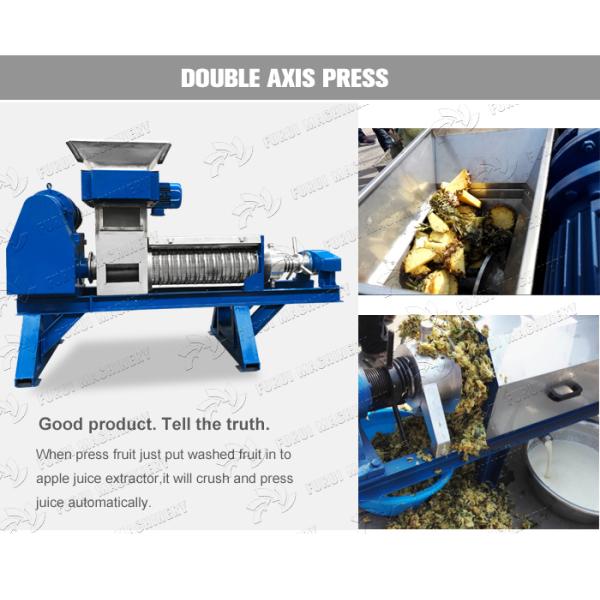

The Double Screw fruit and vegetable juice extractor is made of high-quality acid-proof stainless steel . The machine consists of double shaft shredder,frame, transmission, feed section, juice section, hydraulic systems and electrical control section and the shroud and other components. Press screw rotates together with the spindle, material handling screw set screw on the spindle and press for reverse rotation, the material of the press force of the uniform, taphole cone by the Night cylinder control oil pressure can be varied to adjust the material pressure effect, thereby adjusting the juice yield, the effect will be some differences due to different materials.

Technical parameter of dewatering machine

Model FX-P0.5 FX-P1.5 FX-P3 FX-P5 FX-P10
Specification 0.5T 1.5T 3T 5T 10T
Power 3kw 5.5kw 7.5kw 11kw 18.5KW

Mesh size

(mm)

1mm

(adjustable)

1mm

(adjustable)

1mm

(adjustable)

1mm

(adjustable)

1mm

(adjustable)
Material 304 stainless steel for the suspension contacts part,add fee can customized to be whole stainless steel
Voltage 380V/220V 380V/220V 380V/220V 380V/220V 380V/220V
Weight 850kg 1200kg 1800kg 2550kg 2950kg

Dimension

(mm)

 1600*800*1000 2200*1080*1600 3050*1280*1800 3580*1100*1900 3900*1400*2100

Stainless Steel Industrial Juicer Machine / Industrial Juicing Equipment
