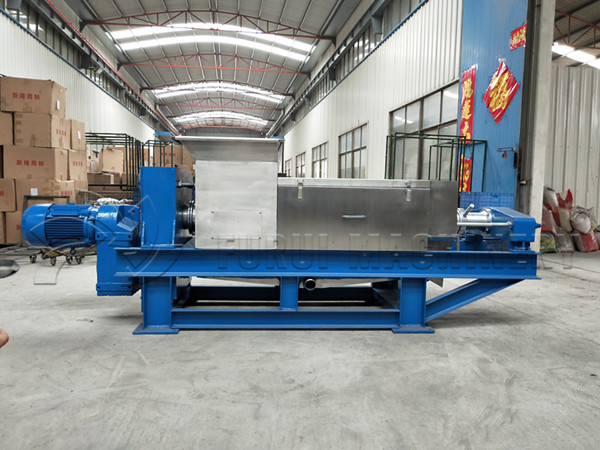

Horizontal Screw Press Industrial Fruit And Vegetable Juicer 200-500 Kg/H Capacity
Horizontal Screw Press Industrial Fruit And Vegetable Juicer 200-500 Kg/H Capacity
Specifications
Model Number :
FR
Certification :
ISO/CE
MOQ :
One Set
Price :
NEGOTIABLE
Payment Terms :
T/T,L/C,Western Union,Trade Assurance
Supply Ability :
100SET PER MONTH
Delivery Time :
WITHIN 7-10 WORK DAYS
Packaging Details :
Sea worthy Wooden Case
Main Power :
3Kw
Capacity :
200-500kg/h
Vol. :
380V
Mesh size (mm) :
1mm adjustable
Machine size :
1700*500*800mm
Weight :
550Kg
Material :
304 stainless steel for the suspension contacts part
Type :
double screw press
Description

380V 3kw Dewatering Screw Press Machine Food Waste Disposing Machine

Features :

Press screw rotates together with the spindle, material handling screw set screw on the spindle and press for reverse rotation, the material of the press force of the uniform, taphole cone by the Night cylinder control oil pressure can be varied to adjust the material pressure effect, thereby adjusting the juice yield, the effect will be some differences due to different materials.

Technical parameter:

Model FR-180 FR-260 FR-350 FR-420 FR-500 FR-600
Production(T/H) 0.2-0.5T 1T-1.5T 1.5T-3T 3T-5T 6T-10T 10t-15t
Main Power 3kw 5.5kw 7.5kw 11kw 18.5KW 22KW
Diameter of screw 180mm 260mm 350mm 420mm 500mm

600mm
Speed 5-15r/min 5-15r/min 5-15r/min 5-15r/min 5-15r/min 5-15r/min
Adjustment method Spring adjustment Spring adjustment Spring adjustment

Hydraulic

adjustment

Hydraulic

adjustment

Hydraulic

adjustment

Mesh size

(mm)

1mm

(adjustable)

1mm

(adjustable)

1mm

(adjustable)

1mm

(adjustable)

1mm

(adjustable)

1mm

(adjustable)
Material 304 stainless steel for the suspension contacts part, add fee can customized to be whole stainless steel
Voltage 380V/220V 380V/220V 380V/220V 380V/220V 380V/220V 380V/220V
Weight 550kg 900kg 1300kg 26000kg 3050kg 4300kg

Horizontal Screw Press Industrial Fruit And Vegetable Juicer 200-500 Kg/H Capacity
