PLC Control Automatic Coil Winding Machine With Length Counter For Cable
PLC Control Automatic Coil Winding Machine With Length Counter For Cable
Specifications
Brand Name :
Zhutang
Model Number :
FRJ350
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
100 sets per year
Delivery Time :
30-35 days
Packaging Details :
Seaworthy wooden case packing
Center height :
900mm
Motor power :
2.2kw
Servo motor power :
750w
Rotating speed :
0-160rpm
Usage :
rewinding cable
Colour :
customizable
Cable Diameter :
1.5 - 6.0 mm
Transverse width :
100mm
Description

PLC Control Automatic Coil Winding Machine With Length Counter For Cable

Description

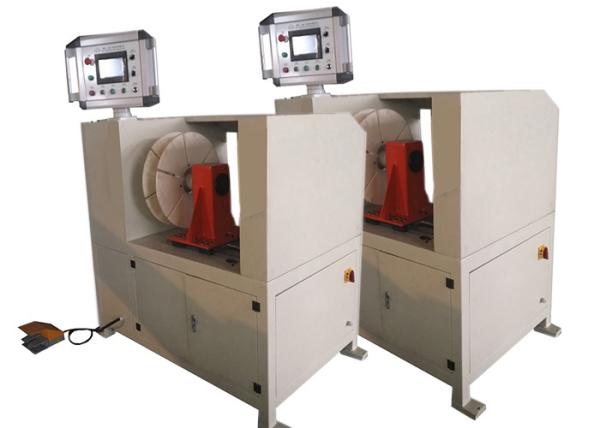

PLC Control Automatic Coil Winding Machine With Length Counter For Cable FRJ350 is a special winding machine to rewind cable, it is provided with winding motor, servo motor, length counter, cutter and so on. When finished winding, the cutter will cut the cable automatically, the cutter is driven by pneumatic. Length counter will show the length of the wound cable. It is easy to operate.

Main Components

1. Main frame

2. Winding unit, 2.2kw motor provides big pulling force

3. Automatic wire laying unit

4. PLC based control system

5. Pneumatic system

6. Foot pedal

Main Parameters

Typical standard specifications of FRJ350 are shown below, however these can be easily modified as requested.

Center Height: 950mm
Platform Height: 600mm
Winding Motor Power: 2.2kw
Servo Motor Power: 750w
Winding Speed: 0-160 rpm
Speed Regulation: Variable frequency and stepless speed regulation
Control system: PLC
Number of Wire Displacement Unit: 2 sets
Cable Dia.: 1.5-6mm
Finished Coil ID: 150mm
Finished Coil OD: 350mm
Finished Coil Height: 100mm
Metering Range: 0 - 9999.99 meter
