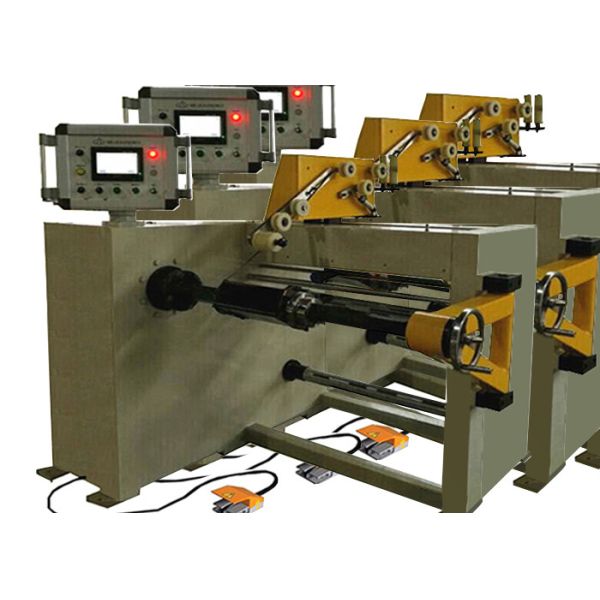

Oil Type Automatic Transformer Coil Winding Machine Full Function Smooth Running
Oil Type Automatic Transformer Coil Winding Machine Full Function Smooth Running
Specifications
Brand Name :
Zhutang
Model Number :
ZPX1200
Certification :
SGS, Main parts with CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
100 sets per year
Delivery Time :
30-35days
Packaging Details :
seaworthy packing
Center height from floor :
900mm
Application :
winding transformer coil
Material :
copper or aluminium wire
Max. finished coil height :
1200mm
Winding Motor power :
5.5kw
Rotating speed :
0-100rpm
Round wire :
0.3-5.0mm
Flat wire size :
5x12mm
Description

Oil Transformer Automatic Coil Winding Machine With Copper Or Aluminium Wire

Product Description

Oil Transformer Automatic Coil Winding Machine With Copper Or Aluminium Wire ZPX1200 is a special winding machine to wind different specification of coils, these coils can be used in transformers, reactors and other similar products. The coil shape depends on molds, it can be circle, oval and rectangular. The material can be copper or aluminium flat or round wire. As per the preset parameters, this machine can lay the wire automatically when winding. Moreover, this winding machine can spread pitch, the mini pitch is 0.01mm between turns. User interface and high automation guarantees the easy operation.

Main Features

  • slow starting
  • smooth running
  • full function
  • high automation
  • easy operation

Main Parameters

Center Height: 900mm
Winding Shaft Size: 40x40x1500mm
Shaft Mounting Mode: Welding on flange or demountable or 4-jaw chuck (optional)
Transverse Width Max.: 1200mm
Main Motor Power: 5.5kw
Winding Speed: 0-100 rpm
Regulating Speed: Variable frequency and stepless speed regulation
Max. Flat Wire Size: 5X12mm
Round Wire Diameter: 0.3-5.0mm
Finished Coil OD. Max.: 1000mm
Max. Loading Capacity: 1000kg
Spread Pitch: Min 0.01mm
Counting: 5-digit counting
Max. Preset Numbers of Turns: 9999.9
Counting Range: 0 - 9999.9
