Copper Or Aluminium Wire Coil Winding Machine , Electric Motor Coil Winding Machine
Copper Or Aluminium Wire Coil Winding Machine , Electric Motor Coil Winding Machine
Specifications
Brand Name :
Zhutang
Model Number :
MW-0.5T
Certification :
CE, SGS
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
100 sets per year
Delivery Time :
20-25 days
Packaging Details :
Seaworthy wooden case packing
Machine color :
customized
Machine height :
1400mm
Motor power :
2.2kw
Winding speed :
0-400rpm
Loading capacity :
500kg
Wire material :
copper or aluminium
Wire type :
flat or round wire
Quality warranty :
12 months
Description

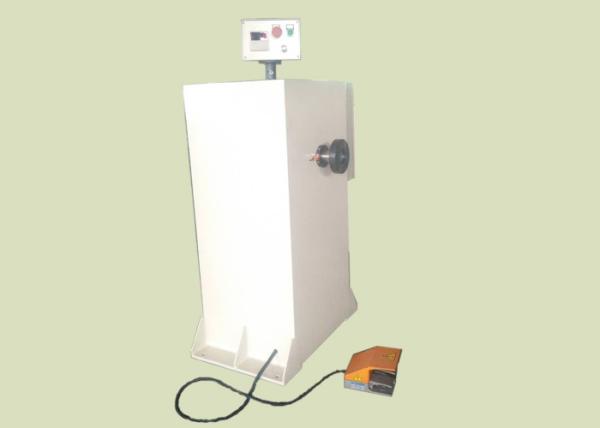

Semi Automatic Copper Or Aluminium Wire Coil Winding Machine For Electric Motor

General Information

Semi Automatic Copper Or Aluminium Wire Coil Winding Machine For Electric Motor MW-0.5T is a special winding machine for winding motor coil and other similar products. This winding machine is provided with:

  • Main steel frame, steel welded frame is very strong
  • Flange, to fix the mould for motor coil
  • Foot pedal, can be used to switch the rotating direction
  • Counter, counting and reverse counting the numbers of turns
  • Control board, can preset some parameters through it
  • Winding motor, 2.2kw motor provides big torque
  • Gear box, several gears to transmit the torque
  • Electrical cabinet, in the cabinet, there are some electric component

Main Features

  • Slow starting, at the beginning of the rotating, the winding speed is very slow
  • Smooth running, during the machine running, it is very stable
  • Easy operating, operating this winding machine is very easy and simple

Main Parameters

Typical standard specifications of MW-0.5T are shown below, however these can be easily modified as requested.

Machine Height: 1400mm
Flange Diameter: 350mm (optional)
Rotating Speed: 0-400rpm
Counting Range: 0-9999.9
Max. Loading Capacity: 500KG
Main motor Power: 2.2KW
Colour: customized
Machine Dimension(L*W*H): 900*700*1400mm
