Fire Alarm Emergency Start Stop Push Button Station
Fire Alarm Emergency Start Stop Push Button Station
Fire Alarm Emergency Start Stop Push Button Station
Fire Alarm Emergency Start Stop Push Button Station
Fire Alarm Emergency Start Stop Push Button Station
Fire Alarm Emergency Start Stop Push Button Station
Fire Alarm Emergency Start Stop Push Button Station
Fire Alarm Emergency Start Stop Push Button Station
Fire Alarm Emergency Start Stop Push Button Station
Fire Alarm Emergency Start Stop Push Button Station
Fire Alarm Emergency Start Stop Push Button Station
Fire Alarm Emergency Start Stop Push Button Station
Specifications
MOQ :
100 set system
Delivery Time :
15-20days
Minimum Oeder Quantity :
1set
Maintenance :
Monthly Testing Recommended
Power :
Battery
Model Number :
J-SAP-JBF4121A
Bus Voltage :
DC 14V ~ DC 24V
Alarm Concentration :
0.65～15.5%FT
Brand Name :
XINGJIN
Indicated Light :
Red (Alarm/Failed), Green (Running)
Light Intensity :
135cd
Certification :
CCC;GB/T 3836.1-2021;GB/T 3836.4-2021;GB 19880-2005
Price :
USD3-4/pc
Installation :
Wall mounting
Usage :
Fire alarm display and alarming
Place of Origin :
Guangzhou,China
Operatingtemperaturerange :
-10°C to 50°C
Packaging Details :
Wooden Box Or Plywood Outer Box With Bubble Bag Or Paper
Nominal Diameter :
15mm, 20mm
Power Voltage :
DC 24V
Payment Terms :
T/T,L/C
Temperature :
-10℃ to +55℃
Working Voltage :
DC19-28V
Supply Ability :
300000 sets per month
Poe :
Optional
Description

Products Description

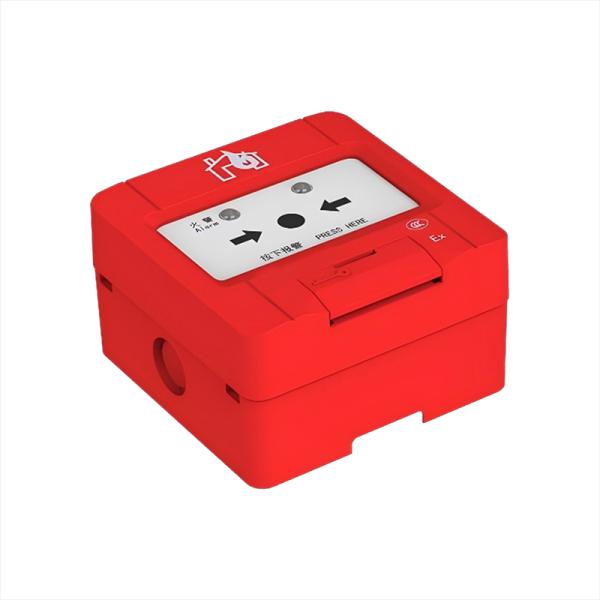

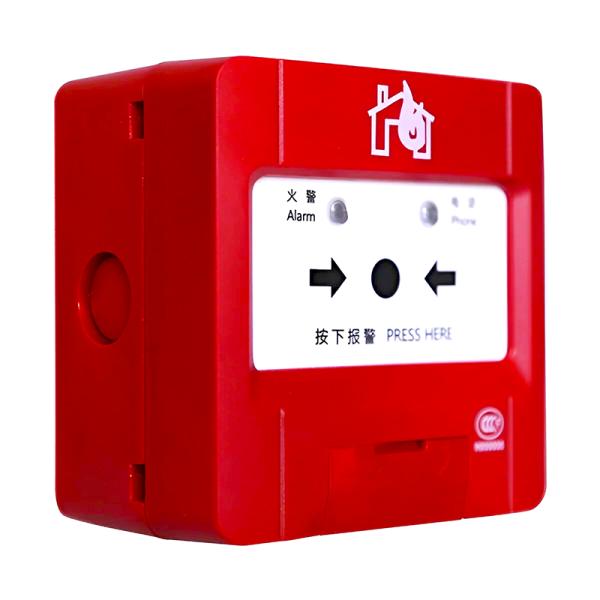

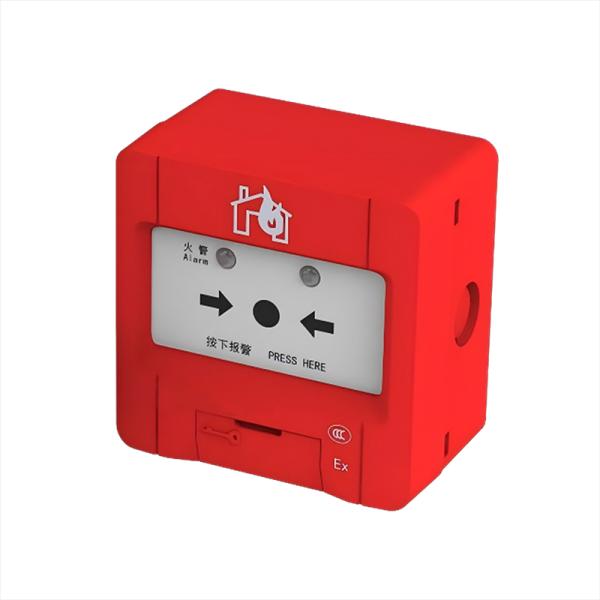

The J-SAP-JBF4121A-Ex is a microprocessor‑based intrinsically safe manual fire alarm button designed for use in hazardous areas requiring explosion‑proof protection. It is suitable for connection to addressable fire alarm control panels via a non‑polarised two‑bus system, offering reliable manual alarm initiation with low power consumption and extended communication range.

Product Advantages

Fire Alarm Emergency Start Stop Push Button Station

Microprocessor‑Based Design

Built around a dedicated microprocessor, the device ensures stable performance and fast response. The use of SMT surface‑mount technology enhances reliability and product consistency across all units.

Non‑Polarised Two‑Bus Communication

The unit operates on a non‑polarised two‑bus system, which eliminates the need to distinguish between positive and negative terminals during wiring. This design simplifies installation, reduces the risk of connection errors, and supports communication distances of up to 1000 metres while maintaining low current consumption.

Intrinsically Safe Explosion‑Proof Construction

The device is of intrinsically safe type and must be used in conjunction with a certified safety barrier. It is suitable for installation in hazardous environments where explosive gases or vapours may be present.

Electronic Addressing

Address assignment is carried out using a dedicated electronic encoder, enabling fast and accurate on‑site configuration. The coding method supports straightforward system commissioning and re‑addressing when required.

Simple and Secure Operation

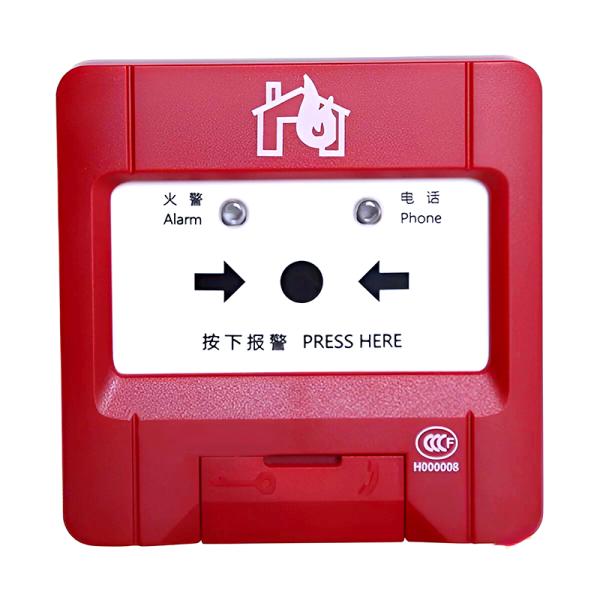

To activate an alarm, the operator presses the front panel. The button mechanism is designed for ease of use, ensuring quick manual fire reporting. After activation, the panel can only be reset using the matching special key, preventing unauthorised or accidental reset.

Plug‑In Structure for Easy Maintenance

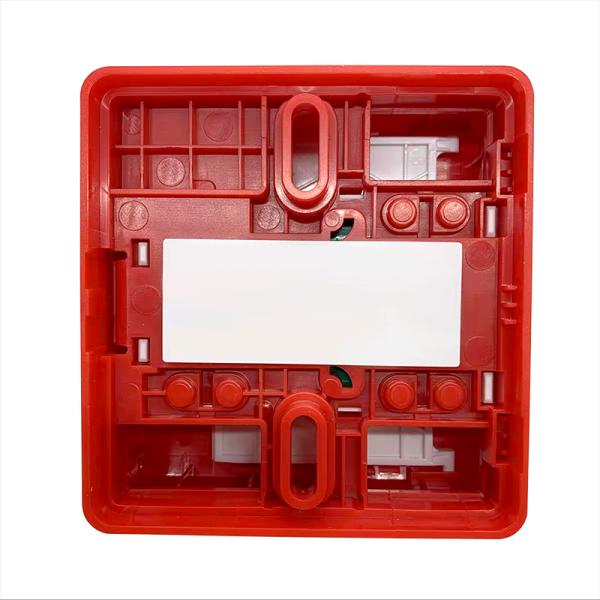

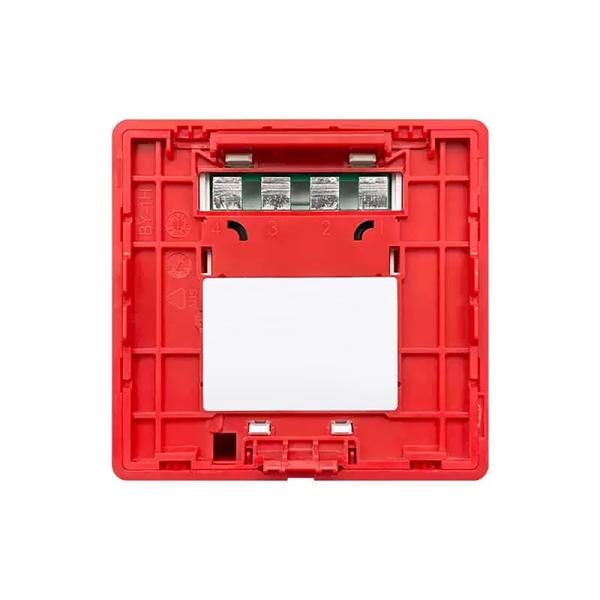

The unit features a plug‑in mechanical design, allowing the button assembly to be easily inserted into or removed from its base. This simplifies initial installation, routine maintenance, and future replacement, reducing on‑site labour time and effort.


Products Parameters

Fire Alarm Emergency Start Stop Push Button Station
Operating environmental conditions
Operating temperature -10 to +55°C
Storage temperature -30 to +75°C
Relative humidity ≤ 95% RH (40 ± 2°C)



Parameter Technical Specification
Operating Voltage DC 18-28V, modulated type provided by controller (must use safety barrier)
Standby Current ≤0.3mA (24V)
Alarm Current ≤1mA (24V)
Explosion-proof Mark Ex ib IIC T6 Gb
Addressing Method Electronic encoder addressing
Addressing Range 1-200
Indicator Light Fire indicator flashes momentarily in standby mode; stays steady red when pressed and in alarm
Dimensions 90mm (L) × 90mm (W) × 52mm (H)
Wiring System Two-wire bus, non-polarity
