Product Overview

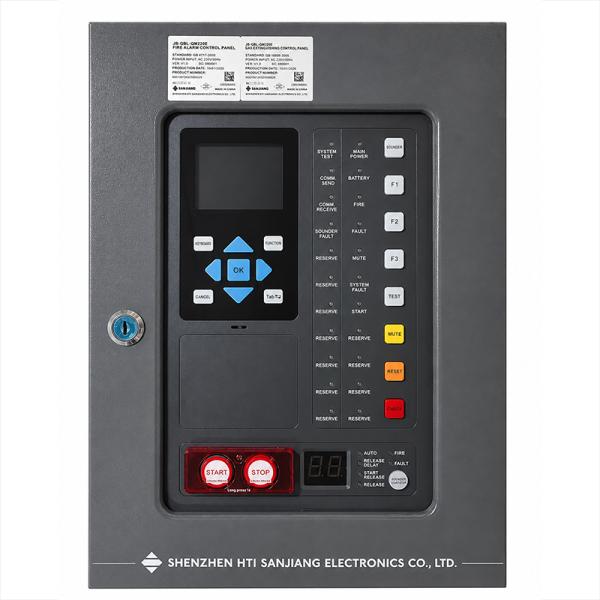

The JB-QBL-A106 fire alarm control panel (integrated) is an intelligent fire alarm and linkage control system designed for commercial buildings and industrial facilities. Featuring non-polarized two-bus technology, it supports up to 324 addressable devices per loop and integrates advanced fire-fighting linkage functions. Equipped with a color LCD display and CAN/Ethernet communication interfaces, the panel supports networking for centralized management. It is ideal for hotels, shopping malls, office buildings, schools, hospitals, and factories, providing comprehensive fire detection and emergency control.

Applications

• Commercial complexes, supermarkets, shopping malls

• Hotels, conference centers, banquet halls

• Hospitals, schools, libraries, museums

• Office buildings, government facilities, business parks

• Factory workshops, warehouses, electrical rooms

• Airport terminals, subway stations, passenger transport hubs

Key Advantages

1. High-Performance Processing

Powered by a next-generation high-speed processor, the system delivers 100x faster data processing and 1000x greater storage capacity, ensuring stable operation under heavy loads.

2. Flexible Expansion

Supports up to 324 devices per loop and multi-loop configurations, easily scaling to meet the needs of medium to large projects.

3. Non-Polarized Two-Bus Technology

Supports both two-wire and four-wire configurations, simplifying installation, reducing costs, and preventing wiring errors.

4. Color LCD Display

Available with a 10-inch or 4.3-inch color LCD, providing a clear interface and intuitive operation with mouse, keyboard, or panel key support.

5. Integrated Linkage Control

Combines alarm, control, and gas extinguishing functions in a modular design, supporting networking for centralized monitoring and unified management.

6. Multiple Communication Interfaces

Supports CAN and Ethernet protocols for seamless integration with graphic display units, building automation systems, and remote monitoring platforms.

Technical Specifications

Commercial Value

• Reduces system cost through integrated design and simplified wiring

• Improves installation efficiency with non-polarized two-bus technology

• Enhances reliability with robust communication protection

• Supports future expansion via modular and multi-loop architecture

Installation & Usage

• Install in dry, well-ventilated indoor environments

• Use RVS twisted pair with cross-section ≥1.0mm² for bus wiring

• Ensure all field devices are properly encoded and registered before commissioning

• Multi-line control points can be set to momentary or continuous output modes

• Supports on-site programming via USB keyboard or mouse
