YAK6 Series Temperature Controller with Non-volatile Memory, ±0.5%FS Accuracy, and 48×48 Panel Size
YAK6 Series Temperature Controller with Non-volatile Memory, ±0.5%FS Accuracy, and 48×48 Panel Size
YAK6 Series Temperature Controller with Non-volatile Memory, ±0.5%FS Accuracy, and 48×48 Panel Size
YAK6 Series Temperature Controller with Non-volatile Memory, ±0.5%FS Accuracy, and 48×48 Panel Size
YAK6 Series Temperature Controller with Non-volatile Memory, ±0.5%FS Accuracy, and 48×48 Panel Size
YAK6 Series Temperature Controller with Non-volatile Memory, ±0.5%FS Accuracy, and 48×48 Panel Size
YAK6 Series Temperature Controller with Non-volatile Memory, ±0.5%FS Accuracy, and 48×48 Panel Size
YAK6 Series Temperature Controller with Non-volatile Memory, ±0.5%FS Accuracy, and 48×48 Panel Size
YAK6 Series Temperature Controller with Non-volatile Memory, ±0.5%FS Accuracy, and 48×48 Panel Size
YAK6 Series Temperature Controller with Non-volatile Memory, ±0.5%FS Accuracy, and 48×48 Panel Size
Specifications
Brand Name :
KACISE
Model Number :
AK6
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Power Consumption :
≤5VA
Rated Voltage :
180V–240V AC, 50Hz
Data Retention :
Non-volatile memory
Storage Temperature :
-25°C–65°C (no condensation or frost)
Resolution :
1°C, 0.1°C (optional)
Wiring Method :
Terminal connection
Measurement Accuracy :
±0.5%FS
Description
YAK6 Series Temperature Controller
Electrical Specifications
Item Specification
Rated Voltage 180V-240V AC, 50Hz
Power Consumption ≤5VA
Operating Environment Ambient temperature: 0-50°C
Relative humidity: 35%-85% RH (non-condensing)
Storage Temperature -25°C-65°C (no condensation or frost)
Resolution 1°C, 0.1°C (optional)
Wiring Method Terminal connection
Measurement Accuracy ±0.5%FS
Data Retention Non-volatile memory
Installation Environment Indoor installation, free from corrosive gases
Relay Output Relay control output: AC220V/DC30V, 3A
Analog Output (Optional) DC12V: 0-5V/1-5V; DC0-5V/1-5V; Output current: ≤30mA; Load resistance ≥1kΩ
Product Model Selection
Please refer to the following code description to confirm whether the delivered product model matches the selected one.
YAK6 Series Temperature Controller with Non-volatile Memory, ±0.5%FS Accuracy, and 48×48 Panel Size
  • ① Front Size: A: 48×48 B: 48×96 C: 96×48 D: 72×72 E: 96×96
  • ② Input Signal: K, E, J, N, Wre3-25, Wre5-26, Pt100, Cu50
  • ③ Power Supply: A: AC power supply D: DC power supply S: Battery test
  • ④ Output Function: 1: Relay output 2: Analog output 3: Logic level output
  • ⑤ Control Mode: 0: Single setpoint control (heating) 1: Dual setpoint control (heating/cooling) 2: Time proportional control 3: On/off control 4: PID control
  • ⑥ Additional Functions: 0: None 1: Communication function (RS485) 2: Timer function 3: Programmable segment control function
  • ⑦ Custom Code: Custom product, defined based on specific order requirements
Appearance and Mounting Dimensions
YAK6 Series Temperature Controller with Non-volatile Memory, ±0.5%FS Accuracy, and 48×48 Panel Size
Unit: mm
Model Panel Size (mm) Overall Dimensions (L × W × H, mm) Mounting Hole Size (mm)
AK6-A 48 × 48 76 × 45 × 45 46 × 46
AK6-B 48 × 96 72 × 44 × 90 45 × 91
AK6-D 72 × 72 72 × 66 × 66 67 × 67

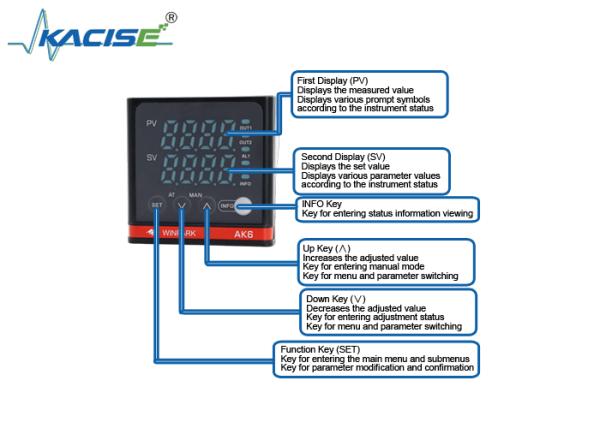

Operation Panel Function Description
YAK6 Series Temperature Controller with Non-volatile Memory, ±0.5%FS Accuracy, and 48×48 Panel Size
