AK6-APL110-C007R Series Temperature Controller with 48×48 Panel Size RS485 Communication and Non-Volatile Memory
AK6-APL110-C007R Series Temperature Controller with 48×48 Panel Size RS485 Communication and Non-Volatile Memory
AK6-APL110-C007R Series Temperature Controller with 48×48 Panel Size RS485 Communication and Non-Volatile Memory
AK6-APL110-C007R Series Temperature Controller with 48×48 Panel Size RS485 Communication and Non-Volatile Memory
AK6-APL110-C007R Series Temperature Controller with 48×48 Panel Size RS485 Communication and Non-Volatile Memory
AK6-APL110-C007R Series Temperature Controller with 48×48 Panel Size RS485 Communication and Non-Volatile Memory
Specifications
Model Number :
AK6-APL110-C007R
Certification :
ce
Place of Origin :
china
MOQ :
1pcs
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Data Retention :
Non-volatile memory
Storage Temperature :
-25°C–65°C (no condensation or frost)
Resolution :
1°C, 0.1°C (optional)
Wiring Method :
Terminal connection
Measurement Accuracy :
±0.5%FS
Description

1.Electrical Specifications

Item

Specification

Rated Voltage

180V–240V AC, 50Hz

Power Consumption

≤5VA

Operating Environment

Ambient temperature: 0–50°C

Relative humidity: 35%–85% RH (non-condensing)

Storage Temperature

-25°C–65°C (no condensation or frost)

Resolution

1°C, 0.1°C (optional)

Wiring Method

Terminal connection

Measurement Accuracy

±0.5%FS

Data Retention

Non-volatile memory

Installation Environment

Indoor installation, free from corrosive gases

Relay Output

Relay control output: AC220V/DC30V, 3A

Analog Output

(Optional) DC12V: 0–5V/1–5V; DC0–5V/1–5V; Output current: ≤30mA; Load resistance ≥1kΩ

2.Product Model Selection

Please refer to the following code description to confirm whether the delivered product model matches the selected one.

AK6-APL110-C007R Series Temperature Controller with 48×48 Panel Size RS485 Communication and Non-Volatile Memory

① Front Size A: 48×48 B: 48×96 C: 96×48 D: 72×72 E: 96×96

② Input Signal K, E, J, N, Wre3–25, Wre5–26, Pt100, Cu50

③ Power Supply A: AC power supply D: DC power supply S: Battery test

④ Output Function 1: Relay output 2: Analog output 3: Logic level output

⑤ Control Mode 0: Single setpoint control (heating)

1: Dual setpoint control (heating/cooling)

2: Time proportional control

3: On/off control

4: PID control

⑥ Additional Functions 0: None 1: Communication function (RS485) 2: Timer function 3: Programmable segment control function

⑦ Custom Code Custom product, defined based on specific order requirements

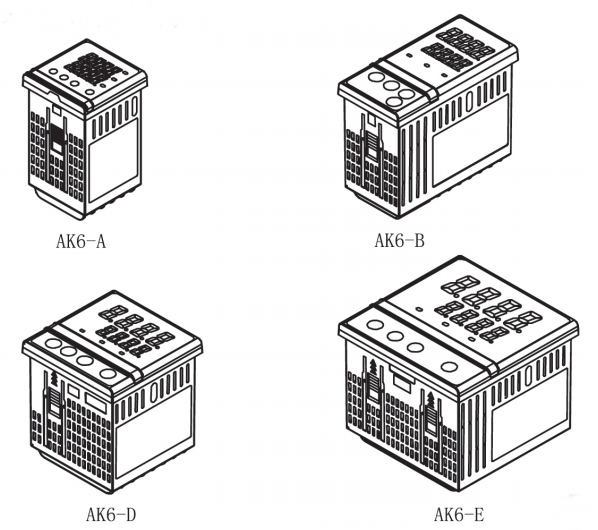

3.UAppearance and Mounting Dimensions

AK6-APL110-C007R Series Temperature Controller with 48×48 Panel Size RS485 Communication and Non-Volatile Memory

Unit: mm

Model

Panel Size (mm)

Overall Dimensions (L × W × H, mm)

Mounting Hole Size (mm)

AK6-A

48 × 48

76 × 45 × 45

46 × 46

AK6-B

48 × 96

72 × 44 × 90

45 × 91

AK6-D

72 × 72

72 × 66 × 66

67 × 67

4.Operation Panel Function Description

AK6-APL110-C007R Series Temperature Controller with 48×48 Panel Size RS485 Communication and Non-Volatile Memory
