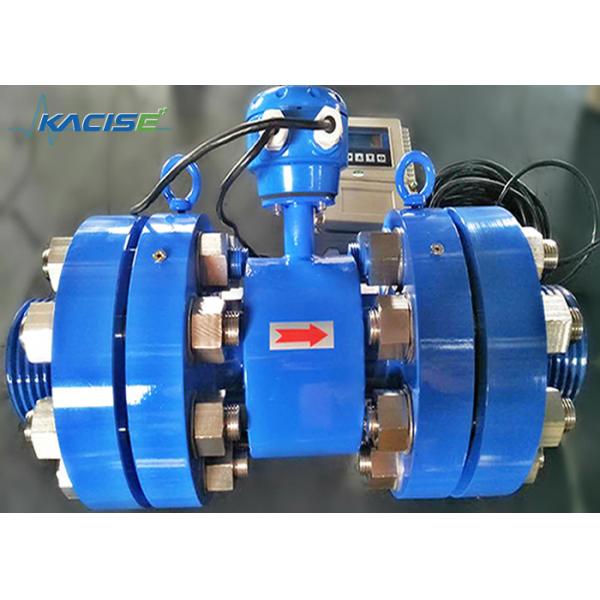

High Pressure Corrosion Resistant Electromagnetic Flow Meter for Slurry and Brine with DN2600 Diameter
High Pressure Corrosion Resistant Electromagnetic Flow Meter for Slurry and Brine with DN2600 Diameter
High Pressure Corrosion Resistant Electromagnetic Flow Meter for Slurry and Brine with DN2600 Diameter
High Pressure Corrosion Resistant Electromagnetic Flow Meter for Slurry and Brine with DN2600 Diameter
Specifications
Brand Name :
KACISE
Model Number :
KEF Series
Certification :
ISO / CE
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Delivery Time :
7 Working days
Packaging Details :
Carton / Wooden box
Supply Ability :
1000 Piece/Pieces per Week negotiable
Pressure :
1.6 Mpa ,2.5Mpa ,4.0Mpa (Special)
Diameter :
DN10 ~ DN2600
Temperature :
-20°C - +160 °C
Power Supply :
24VDC, 220VAC
Communication :
RS-485 / MODBUS , HART
Accuracy :
±0.2% (Customize), ±0..5% （Standard）
Electrode :
SUS316,HC,HB,Titanium, Tantalum, etc.
Output signal :
4~20mA / Pulse / 0~10V
Installation :
Flange, Clamp on, Thread
Protection Class :
IP65, IP68(optional)
Description
High Pressure Electromagnetic Flow Meter Corrosion Resistance For Slurry / Brine
Product Overview

Electromagnetic Flow Meter is an induction instrument designed using Faraday's law of electromagnetic induction to measure flow of conductive media in tubes. It features single-chip digital excitation technology and CAN local fieldbus capability.

This flow meter provides local indication and outputs 4-20mA electrical current signals for recording, adjustment, and control applications. Widely used in chemical, environmental protection, metallurgy, pharmaceutical, paper manufacturing, water supply, and wastewater treatment industries.

Beyond measuring general conductive liquids, this electromagnetic flow meter can handle liquid-solid mixed fluids, high-viscosity fluids, salts, strong acids, and strong alkalis.

Key Features
  • Simple, robust construction with no moving parts for long operational life (1-year guarantee)
  • No flow obstruction components, eliminating pressure loss and fluid clogging
  • No mechanical inertia for quick response and excellent stability in automatic examination, adjustment, and control systems
  • Measuring accuracy unaffected by physical parameters such as fluid type, temperature, viscosity, density, and pressure
  • Available in multiple configurations including inline type and insertion type
  • EEPROM memory for secure and reliable data storage
  • Integral type and remote type flow meter options
  • High-contrast LCD back light display (LED back light display available as option)
Technical Specifications
Pipe Diameter DN6~DN2600
Accuracy 0.3% (Option), 0.5%, 1.0% of F.S.
Repeatability Below 0.25%
Power Supply AC: 220V, 50-60Hz; DC: +24V (Option)
Output Signals 4~20mA, Pulse, 0~5V
Conduit Connection M20 * 1.5 Thread
Communication Interface RS-232; RS-485; HART
Operation Pressure 1.0MPa, 1.6MPa, 4.0MPa, 16MPa (Special)
Fluid Temperature -20°C~80°C, 80°C~130°C, 130°C~180°C (Depending on Lining Material)
Ambient Temperature Sensor -40°C~80°C, Transducer -15°C~50°C
Ambient Humidity ≤ 85%RH (at 20°C)
Cable Outlet Size M20×1.5
Power Supply Options 220VAC±10%, 50-60Hz±1Hz, 24VDC±10%, Battery power (3-5 years)
Power Consumption ≤ 15W
Protection Ratings Remote type: sensor IP68, transducer IP65
Materials & Construction
Electrode Materials 316L (stainless steel), Hastelloy C, Hastelloy B, Titanium, Tantalum, etc.
Liner Materials PTFE, Soft rubber, Hard rubber, F46, FS, PUR
Measuring Tube SS 304, Carbon steel
Flange Materials Carbon Steel, SS304
Ground Ring Materials 316L (stainless steel), HC, Ti, Ta, Cu
Flange Connection Standards National Standard GB9119-88 (DIN2051, BS4504), JIS, ANSI, Screw, Tri-clamp for sanitary application, Insertion type
Certifications & Safety

Explosion-proof Protection: Exde ib ii BT2

Quality Control: ISO9001-2008, CE Certified

Model Selection Guide
High Pressure Corrosion Resistant Electromagnetic Flow Meter for Slurry and Brine with DN2600 Diameter
Application Examples
High Pressure Corrosion Resistant Electromagnetic Flow Meter for Slurry and Brine with DN2600 Diameter
