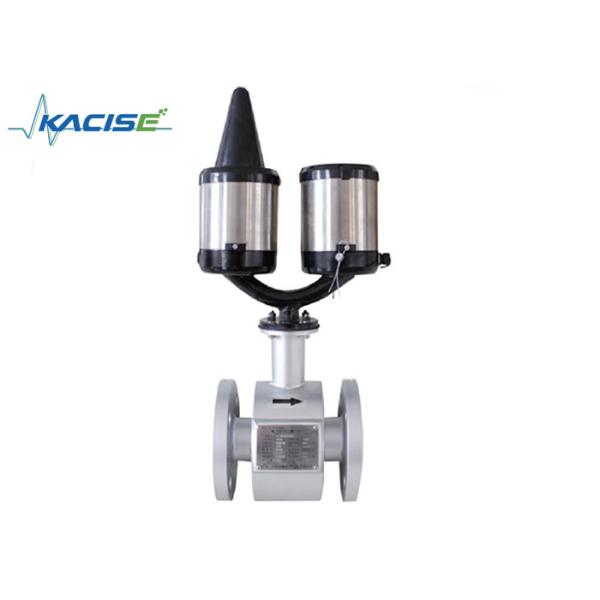

GPRS Wireless Remote IP68 Electromagnetic Flow Meter with 3.6V Lithium Battery Supply for Ammonia and Irrigation
GPRS Wireless Remote IP68 Electromagnetic Flow Meter with 3.6V Lithium Battery Supply for Ammonia and Irrigation
GPRS Wireless Remote IP68 Electromagnetic Flow Meter with 3.6V Lithium Battery Supply for Ammonia and Irrigation
GPRS Wireless Remote IP68 Electromagnetic Flow Meter with 3.6V Lithium Battery Supply for Ammonia and Irrigation
Specifications
Brand Name :
KACISE
Model Number :
KEF Series
Certification :
ISO / CE
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Delivery Time :
7 Working days
Packaging Details :
Carton / Wooden box
Pressure :
1.6 Mpa ,2.5Mpa ,4.0Mpa (Special)
Diameter :
DN10 ~ DN2600
Temperature :
-20°C - +160 °C
Power Supply :
24VDC, 220VAC
Communication :
RS-485 / MODBUS , HART
Accuracy :
±0.2% (Customize), ±0..5% （Standard）
Output signal :
4~20mA / Pulse / 0~10V
Installation :
Flange, Clamp on, Thread
Protection Class :
IP65, IP68(optional)
Color :
Blue, Red, Orange (Customized)
Description
GPRS Wireless Remote Electromagnetic Flow Meter IP68 For Ammonia / Irrigation
Product Overview

GPRS Wireless Remote IP65 IP68 Electromagnetic Flow Meter with 3.6V Lithium Battery Supply designed for ammonia and irrigation applications.

Key Features
  • Simple, firm structure with no movable parts and long operation life (1-year guarantee)
  • No intercepting fluid parts, no pressure loss, and no fluid clogging
  • No mechanical inertia, quick response, and good stability for automatic examination, adjustment & control
  • Measuring accuracy not influenced by physical parameters such as style, temperature, viscosity, density and pressure
  • Multiple flow meter styles available including inline type and insertion type
  • EEPROM memory for safe and reliable data measurement and storage

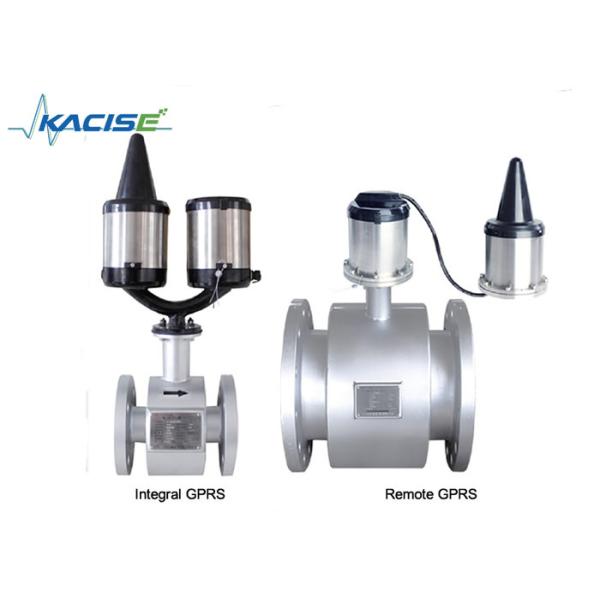

  • Available in integral type and remote type configurations
  • LCD back light display with high clearness (LED back light display optional)
Technical Description

This electromagnetic flow meter is an induction instrument designed using Faraday's law of electromagnetic induction to measure flow of conductive media in tubes. It incorporates single chip technology for digital excitation and employs CAN local fieldbus.

The flow meter provides local indication and outputs 4-20mA electrical current signals for recording, adjustment and control. Widely used in industrial sectors including chemical, environmental protection, metallurgy, pharmaceutical, paper manufacturing, water supply and removal.

In addition to measuring flow of general conductive liquids, it can measure liquid-solid mixed fluids, high-viscosity fluids, salt, strong acids and strong alkalis.

Technical Parameters
Parameter Specifications
Pipe Diameter DN6~DN2600
Accuracy 0.3% (Option), 0.5%, 1.0% of F.S.
Repeatability Below 0.25%
Power AC: 220V, 50-60Hz; DC: +24V (Option)
Output Signals 4~20mA, Pulse, 0~5V
Conduit Connection M20 * 1.5 Thread
Communication Interface RS-232; RS-485; HART
Operation Pressure 1.0MPa, 1.6MPa, 4.0MPa, 16MPa (Special)
Fluid Temperature -20°C~80°C, 80°C~130°C, 130°C~180°C (Depending on Lining Material)
Ambient Temperature Sensor -40°C~80°C, Transducer -15°C~50°C
Ambient Humidity ≤ 85%RH (at 20°C)
Cable Outlet Size M20×1.5
Power Supply 220VAC±10%, 50-60Hz±1Hz, 24VDC±10%, Battery power (3-5 years)
Power Consumption ≤ 15W
Protection Ratings Remote type: Sensor IP68, Transducer IP65
Materials - Electrode 316L (stainless steel), Hastelloy C, Hastelloy B, Titanium, Tantalum, etc.
Materials - Liner PTFE, Soft rubber, Hard rubber, F46, FS, PUR
Measuring Tube SS 304, Carbon Steel
Flange Carbon Steel, SS304
Ground Ring 316L (stainless steel), HC, Ti, Ta, Cu
Connection of Flange National Standard GB9119-88 (DIN2051, BS4504), JIS, ANSI, Screw, Tri-clamp for sanitary application, Insertion type
EX-proof Protection Exde ib ii BT2
Quality Control ISO9001-2008, CE
Model Selection
GPRS Wireless Remote IP68 Electromagnetic Flow Meter with 3.6V Lithium Battery Supply for Ammonia and Irrigation
