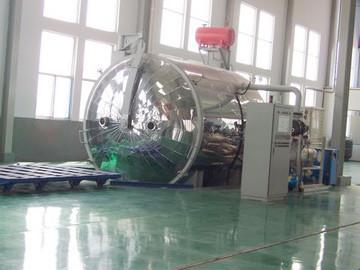

Pressure-Changed Vacuum Drying oven for dry type transformer
Pressure-Changed Vacuum Drying oven for dry type transformer
Specifications
Brand Name :
FULITE
Certification :
ISO9001,CE
Place of Origin :
China
MOQ :
1
Price :
Based on the price of the day
Payment Terms :
L/C, T/T
Supply Ability :
Spot adequacy
Delivery Time :
Based on the product
Packaging Details :
Wooden packing
MTBF :
>10000 hours
Sealing life of the cavity :
≥ 500000 times of opening and closing
Emergency drainage :
5-second rapid emptying mechanism
Material Standard :
ASME VIII Div.1 Pressure Vessel Certification
Description

Safety design:

Triple vacuum leak protection (accuracy 0.1Pa/s), over temperature self cutting system (millisecond response), IP65 protection level control cabinet, certified with SIL2 functional safety.

Reliability parameters:

MTBF (Mean Time Between Failures):>10000 hours

Sealing life of the cavity: ≥ 500000 times of opening and closing

Emergency drainage: 5-second rapid emptying mechanism

Material Standard: ASME VIII Div.1 Pressure Vessel Certification

High risk scenarios:


Special working conditions such as drying of solvent containing materials (real-time monitoring of LEL concentration), dust explosion environment (nitrogen inerting system), radioactive material treatment (lead shielding optional), etc.

Specification

1 Round chamber

Dimension

mm

Ultimate vacuum

Leakage rate

 Operating temp. Temp. accuracy Control mode
Ф2200×3000 ≤50Pa (unload) ≤100Pa.L/S 115±5℃ ±5℃ Auto control by HMI
Ф2400×3000

≤50Pa (unload)

 ≤100Pa.L/S 115±5℃ ±5℃ Auto control by HMI
Ф2600×3000

≤50Pa (unload)

 ≤100Pa.L/S 115±5℃ ±5℃ Auto control by HMI
Ф2800×3000 ≤50Pa (unload) ≤100Pa.L/S 115±5℃ ±5℃ Auto control by HMI
Ф3000×3500 ≤50Pa (unload) ≤100Pa.L/S 115±5℃ ±5℃ Auto control by HMI
Ф3200×3500 ≤50Pa (unload) ≤100Pa.L/S 115±5℃ ±5℃ Auto control by HMI
Ф3200×4000 ≤50Pa (unload) ≤100Pa.L/S 115±5℃ ±5℃ Auto control by HMI
Ф3600×8000 ≤50Pa (unload) ≤100Pa.L/S 115±5℃ ±5℃ Auto control by HMI
Ф4200×8000 ≤50Pa (unload) ≤100Pa.L/S 115±5℃ ±5℃ Auto control by HMI

2 , Rectangular chamber

Dimension

mm

Ultimate vacuum

Leakage rate

 Operating temp. Temp. accuracy

Control mode
4000×2500×2500 ≤50Pa (unload) ≤500Pa.L/S 115±5℃ ±5℃ Auto control by HMI
4000×3000×3000

≤50Pa (unload)

 ≤500Pa.L/S 115±5℃ ±5℃ Auto control by HMI
5000×3000×3000

≤10Pa

≤10Pa (unload)

 ≤500Pa.L/S 115±5℃ ±5℃

Auto control by HMI
5000×3000×3500

≤10Pa

≤10Pa (unload)

 ≤500Pa.L/S 115±5℃ ±5℃ Auto control by HMI
