Unwinding Roll To Roll Die Cutting Machine 380V 3 Phase 4 Wire
Unwinding Roll To Roll Die Cutting Machine 380V 3 Phase 4 Wire
Unwinding Roll To Roll Die Cutting Machine 380V 3 Phase 4 Wire
Unwinding Roll To Roll Die Cutting Machine 380V 3 Phase 4 Wire
Unwinding Roll To Roll Die Cutting Machine 380V 3 Phase 4 Wire
Unwinding Roll To Roll Die Cutting Machine 380V 3 Phase 4 Wire
Unwinding Roll To Roll Die Cutting Machine 380V 3 Phase 4 Wire
Unwinding Roll To Roll Die Cutting Machine 380V 3 Phase 4 Wire
Unwinding Roll To Roll Die Cutting Machine 380V 3 Phase 4 Wire
Unwinding Roll To Roll Die Cutting Machine 380V 3 Phase 4 Wire
Specifications
Brand Name :
ruiting
Model Number :
RTRY-330
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 days
Delivery Time :
20 working days
Packaging Details :
wooden case
Warranty :
1 Year
Voltage :
380V 3 phase 4 wire(can make as your request)
cut speed :
300Cycles/Min
color :
white (can make as your request)
Dimension(l*w*h) :
3400mm×1100mm×1500mm
Weight :
About 2800kg
Max feeding width :
330mm
Unwinding/rewinding diameter :
700mm
Accuracy of Cutting :
±0.15mm
Name :
rotary die cutting machine
Description

Title

Roll To Roll Die Cutting Machine And Rotary Die Cutting Equipment

Product Description

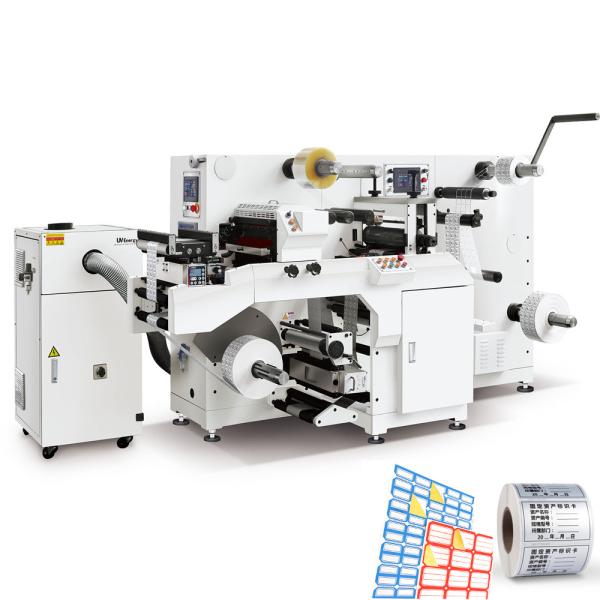

RTRY-330 double stations die cutter is suitable for complicated concerting requests for the adhesive labels,is able to register cutting in front layer and release layer,or some process need several cuttings in front layer.The two stations is movable design with adjustment in the range of certain plate length,meanwhile,the inner system is easy shift between rotary and semi-rotary,it’s the optimal solution for many different industry special requires.
Can add printing unit,according to your require add hot stamping ,laminating,slitting etc.
As full servo driven,the two stations is works in register way,support 2nd times register,fit for language tags.

Main features

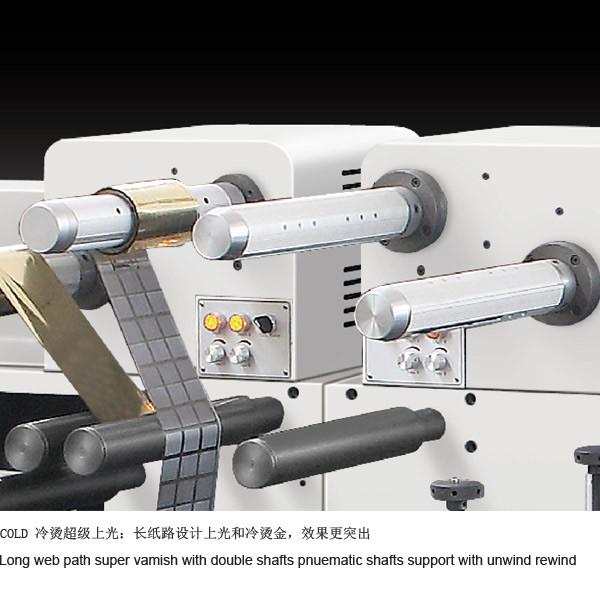

A:Unwinding

B:Web Guider

C:120teeth/381mm magnetic cylinder.(15inch cylinder)---Also can make the cylinder according your request

D:Servo motors

E:Touch screen operating system

F:Rewinder&Waste matrix mandrels.

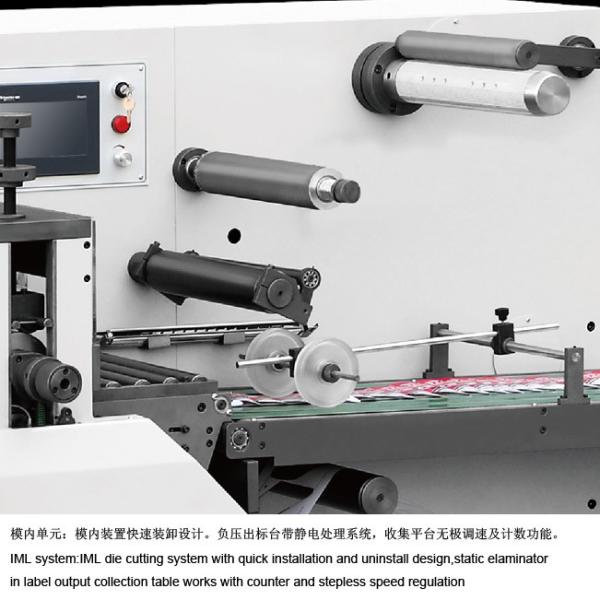

G:IML conveyor&Manual collection table

Main Technical Specification:

Max Die Cutting Speed 300Cycles/Min
Accuracy of Cutting ±0.15mm
Max Die Cutting Area 330mmx320mm(LxW)
Paper Width 80mm~330mm
Max Unwinding Dia. 700mm(≈2000meters)
Max Rewinding Dia. 700mm(≈2000meters)
Repeat Length of Die Cutting 50mm~330mm
MOTOR Power 10kw
Overall Diameter(L×W×H) 2950×1400×1700mm
Weight 3000KGS

Material details:

material
paper label, foam tape, PVC label
cutting mould
made by wooden

Unwinding Roll To Roll Die Cutting Machine 380V 3 Phase 4 WireUnwinding Roll To Roll Die Cutting Machine 380V 3 Phase 4 WireUnwinding Roll To Roll Die Cutting Machine 380V 3 Phase 4 WireUnwinding Roll To Roll Die Cutting Machine 380V 3 Phase 4 WireUnwinding Roll To Roll Die Cutting Machine 380V 3 Phase 4 Wire

FQA

1.Are you factory or trading company?


We are factory.


2.What is your after service?


We offer customer a lifetime service.


3.Do you have CE certificate?

Yes, we have CE certificate of our machines.

4.What is the shipping time?


Around 15-30 days, depend on different model.


5.What can I do if machine stop work?
You can email us, call us or online video calls, face to face solve problem.
If the spare parts or something broken, in the warranty time,
we offer free.
