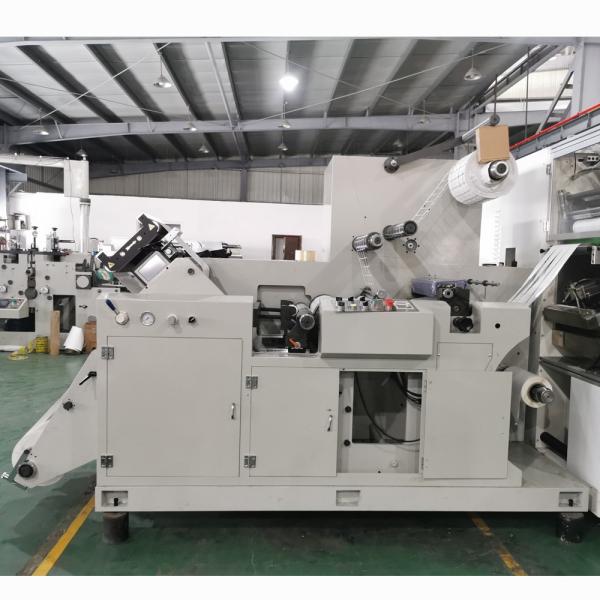

Side Push Rotary Die Cutting Machine For Paper Label Sticker
Side Push Rotary Die Cutting Machine For Paper Label Sticker
Side Push Rotary Die Cutting Machine For Paper Label Sticker
Side Push Rotary Die Cutting Machine For Paper Label Sticker
Side Push Rotary Die Cutting Machine For Paper Label Sticker
Side Push Rotary Die Cutting Machine For Paper Label Sticker
Side Push Rotary Die Cutting Machine For Paper Label Sticker
Side Push Rotary Die Cutting Machine For Paper Label Sticker
Side Push Rotary Die Cutting Machine For Paper Label Sticker
Side Push Rotary Die Cutting Machine For Paper Label Sticker
Side Push Rotary Die Cutting Machine For Paper Label Sticker
Side Push Rotary Die Cutting Machine For Paper Label Sticker
Specifications
Brand Name :
ruiting
Model Number :
RTMQ-320
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
25 sets/month
Delivery Time :
45 working days
Packaging Details :
wooden case
Warranty :
1 Year
Voltage :
380v (can make as your request)
cut speed :
150m/min
After-sales service provided :
Online operation video guidance and other
Computerized :
Yes
Dimension(l*w*h) :
2.5m*1.30m*1.65m
Type :
rotary die cutting machine
Weight :
About 1000kg
Power(w) :
3.3kw
Position accuracy :
±0.1mm
Max feeding width :
320mm
Unwinding/rewinding diameter :
500mm
Description

Title

Paper Label Sticker Side Push Rotary Die Cutting Machine For Sale

Main features

Horizontal side push type magnetic cylinder structure

The unwinding and rewind use magnetic powder

With meter and number counting

10.Th

Product Description

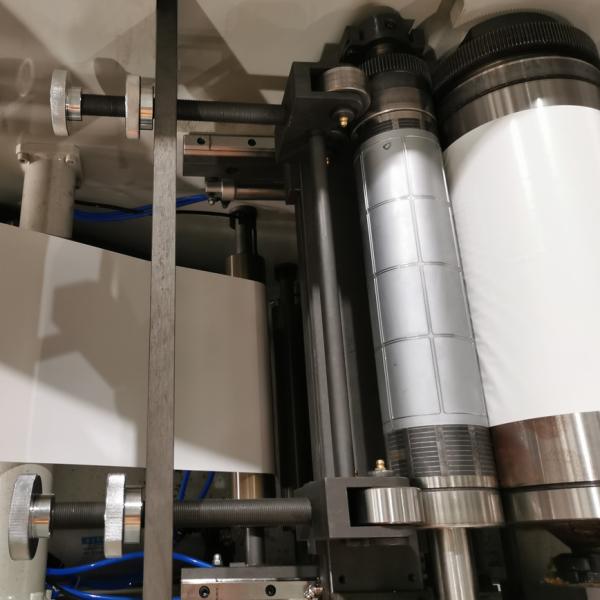

The design of this model makes it easy for the operator to replace the magnetic roller

Main Technical Specification:

Slitting speed 150m/min
Max. web width 320mm
Max.cutting width 310mm
Die-cutting length 178mm-476mm
Max. unwinding diameter 500mm
Max. rewinding diameter 500mm
Cutting precision ±0.1mm
Power voltage 380V,3 Phase
Overall dimensions 2.5m*1.30m*1.65m(L*W*H)
Machine weight 1000kg

Material details:

material
paper label, foam tape, PVC label
cutting mould
made by wooden

Side Push Rotary Die Cutting Machine For Paper Label StickerSide Push Rotary Die Cutting Machine For Paper Label StickerSide Push Rotary Die Cutting Machine For Paper Label StickerSide Push Rotary Die Cutting Machine For Paper Label Sticker

FQA

1.Are you factory or trading company?


We are factory.


2.What is your after service?


We offer customer a lifetime service.


3.Do you have CE certificate?

Yes, we have CE certificate of our machines.

4.What is the shipping time?


Around 15-30 days, depend on different model.


5.What can I do if machine stop work?
You can email us, call us or online video calls, face to face solve problem.
If the spare parts or something broken, in the warranty time,
we offer free.
