Specifications
Brand Name :
ruiting
Model Number :
RTZH-130B
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
25 sets per month
Delivery Time :
30 working days
Packaging Details :
wooden case
Voltage :
380V
Automatic grade :
Automatic
After-sales service provided :
Engineers available to service machinery overseas
Packaging type :
Cartons
Weight :
2800KGS
Dimension(l*w*h) :
3500*1650*1650MM
Product name :

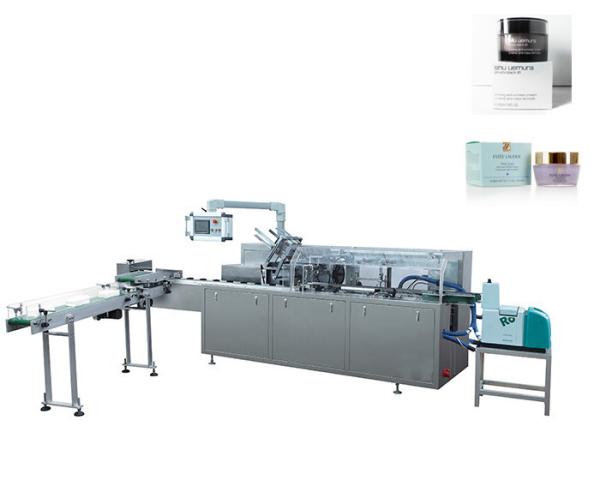

130B Cream Bottle Automatic Cartoning Machine
Condition :
New
Description

Product Description

160A Medicine Oral Liquid Carton Box Packing Machine

-Continuous mechanical feeding materials and carton packing, and working of each functional part is harmony, stable and reliable.
-When materials do not reach correct position, the pusher has an alarm and halt facility for that, in order to ensure good quality of carton packaging and safety in peroration effectively.
-Constantly moving carton-opening mechanism and pulling carton-opening mechanism are more stable and reliable.
-Vibrating material categorizing and feeding mechanism is stable and reliable.
-Halt facility for air pressure and vacuum protection, when caster opened, the halt facility will be checked automatically for operating safety of the machine.
-It is easy, convenient and quick to change and adjust product size by hand wheel on instrument panel.
-Variable frequency speed regulation, PLC automatic control, operating on touch screen, words and numeric display, easy to opera tem staked coeddicients in operation.
-Overload protection for principal driving, indication of failure diagnosis, and automatic halt of failure.

Main features

1)International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.

2)Adopt human-machine operation system.

3)Automatically stop when machine is overload.

4)Automatically reject lacking of package product and leaflet.

5)Automatically display trouble, Alarm and count finished products.

6)Stable performance,operation is easy.

Main technical specification:

Cartoning speed 30-120Box/min
Dimension range(L×W×H) L(160-200)*W(100-160)*H(10-70)mm

Leafle

 Thickness requirement 55-65g/㎡
Voltage 220/380V, 50HZ( can make according to your request)
Box size (Max.) 260*190mm
Box size(Min.) 100*100mm
Power 1.5KW
Machine size L3300*W1350*H1650MM
Weight 1300KGS
Compressed air ≥0.6mpa, 20m³/H

Widely usage:Pharmaceuticals, food,cosmetics, daily necessities, toys and other industries

Material details:

carton box thickness 250-450gsm
