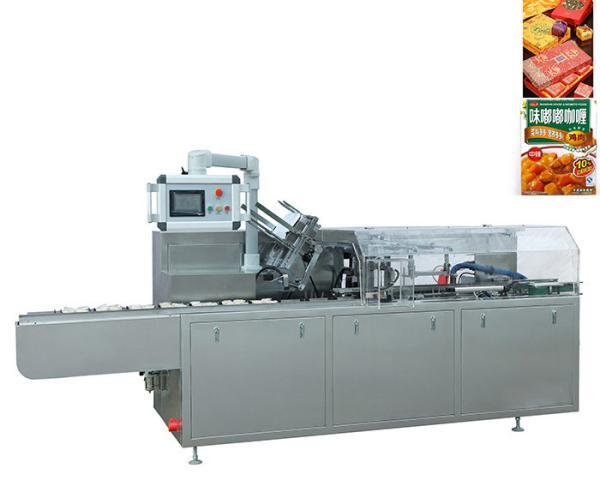

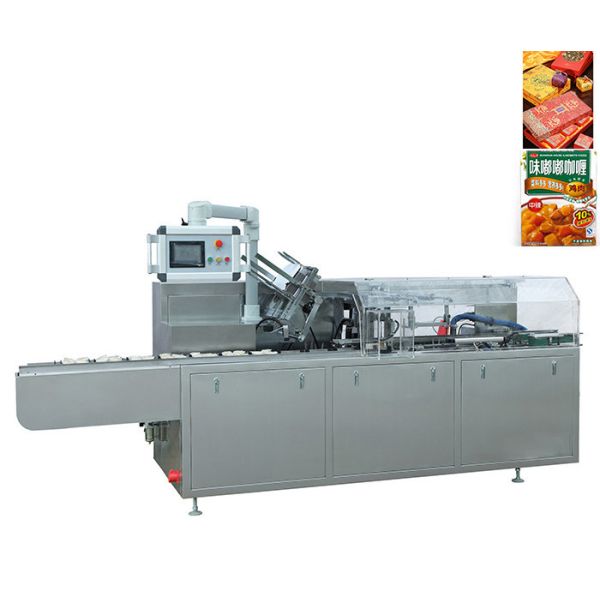

CE Pharmaceutical Cartoning Machine , PLC Touch Biscuit Packing Machine 1200KGS
CE Pharmaceutical Cartoning Machine , PLC Touch Biscuit Packing Machine 1200KGS
CE Pharmaceutical Cartoning Machine , PLC Touch Biscuit Packing Machine 1200KGS
CE Pharmaceutical Cartoning Machine , PLC Touch Biscuit Packing Machine 1200KGS
CE Pharmaceutical Cartoning Machine , PLC Touch Biscuit Packing Machine 1200KGS
CE Pharmaceutical Cartoning Machine , PLC Touch Biscuit Packing Machine 1200KGS
CE Pharmaceutical Cartoning Machine , PLC Touch Biscuit Packing Machine 1200KGS
CE Pharmaceutical Cartoning Machine , PLC Touch Biscuit Packing Machine 1200KGS
Specifications
Brand Name :
ruiting
Model Number :
RTZH-200B
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
25 sets per month
Delivery Time :
30 working days
Packaging Details :
wooden case
Voltage :
380V
Automatic grade :
Automatic
After-sales service provided :
Engineers available to service machinery overseas
Packaging type :
Cartons
Weight :
1200KGS
Dimension(l*w*h) :
4300*1600*1900MM
Product name :
200B Automatic Carton Packing Machine For Biscuits
Condition :
New
Description

Product Description

200B Automatic Carton Packing Machine For Biscuits

-Continuous mechanical feeding materials and carton packing, and working of each functional part is harmony, stable and reliable.
-When materials do not reach correct position, the pusher has an alarm and halt facility for that, in order to ensure good quality of carton packaging and safety in peroration effectively.
-Constantly moving carton-opening mechanism and pulling carton-opening mechanism are more stable and reliable.
-Vibrating material categorizing and feeding mechanism is stable and reliable.
-Halt facility for air pressure and vacuum protection, when caster opened, the halt facility will be checked automatically for operating safety of the machine.
-It is easy, convenient and quick to change and adjust product size by hand wheel on instrument panel.
-Variable frequency speed regulation, PLC automatic control, operating on touch screen, words and numeric display, easy to opera tem staked coeddicients in operation.
-Overload protection for principal driving, indication of failure diagnosis, and automatic halt of failure.

Main features

1) International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.

2) Adopt human-machine operation system.

3) Automatically stop when machine is overload.

4) Automatically reject lacking of package product and leaflet.

5) Automatically display trouble, Alarm and count finished products.

6) Stable performance,operation is easy.

Main technical specification:

Cartoning speed 30-70Box/min
Box Dimension range(L×W×H) L(70-320)*W(50-250)*H(20-90)mm

Leafle

 Thickness requirement 55-65g/㎡
Voltage 220/380V, 50HZ( can make according to your request)
Power 1.5KW
Machine size L4300*W1600*H1900MM
Weight 1200KGS
Compressed air ≥0.6mpa, 20m³/H

Widely usage:Pharmaceuticals, food,cosmetics, daily necessities, toys and other industries

Material details:

carton box thickness 250-450gsm
