EN 854 3TE Low Pressure Hydraulic Rubber Hose with Oil & Weather Resistant Cover and Two Braids of High Tensile Fiber for -40C to +100C
EN 854 3TE Low Pressure Hydraulic Rubber Hose with Oil & Weather Resistant Cover and Two Braids of High Tensile Fiber for -40C to +100C
EN 854 3TE Low Pressure Hydraulic Rubber Hose with Oil & Weather Resistant Cover and Two Braids of High Tensile Fiber for -40C to +100C
EN 854 3TE Low Pressure Hydraulic Rubber Hose with Oil & Weather Resistant Cover and Two Braids of High Tensile Fiber for -40C to +100C
EN 854 3TE Low Pressure Hydraulic Rubber Hose with Oil & Weather Resistant Cover and Two Braids of High Tensile Fiber for -40C to +100C
EN 854 3TE Low Pressure Hydraulic Rubber Hose with Oil & Weather Resistant Cover and Two Braids of High Tensile Fiber for -40C to +100C
EN 854 3TE Low Pressure Hydraulic Rubber Hose with Oil & Weather Resistant Cover and Two Braids of High Tensile Fiber for -40C to +100C
EN 854 3TE Low Pressure Hydraulic Rubber Hose with Oil & Weather Resistant Cover and Two Braids of High Tensile Fiber for -40C to +100C
EN 854 3TE Low Pressure Hydraulic Rubber Hose with Oil & Weather Resistant Cover and Two Braids of High Tensile Fiber for -40C to +100C
EN 854 3TE Low Pressure Hydraulic Rubber Hose with Oil & Weather Resistant Cover and Two Braids of High Tensile Fiber for -40C to +100C
EN 854 3TE Low Pressure Hydraulic Rubber Hose with Oil & Weather Resistant Cover and Two Braids of High Tensile Fiber for -40C to +100C
EN 854 3TE Low Pressure Hydraulic Rubber Hose with Oil & Weather Resistant Cover and Two Braids of High Tensile Fiber for -40C to +100C
Specifications
Brand Name :
PASSIONCOHOSE
Model Number :
P3TE
Certification :
REACH, RoHS, CE
Place of Origin :
China
MOQ :
500m
Price :
negotiation
Payment Terms :
T/T,L/C
Supply Ability :
200, 000meters/Month
Delivery Time :
20 to 30 working days
Packaging Details :
rolls, cartons, pallets, etc.
Description
EN 854 3TE Low Pressure Hydraulic Rubber Hose
EN 854 3TE Hydraulic Hose designed for reliable performance in low-pressure hydraulic applications.
EN 854 3TE Low Pressure Hydraulic Rubber Hose with Oil & Weather Resistant Cover and Two Braids of High Tensile Fiber for -40C to +100C

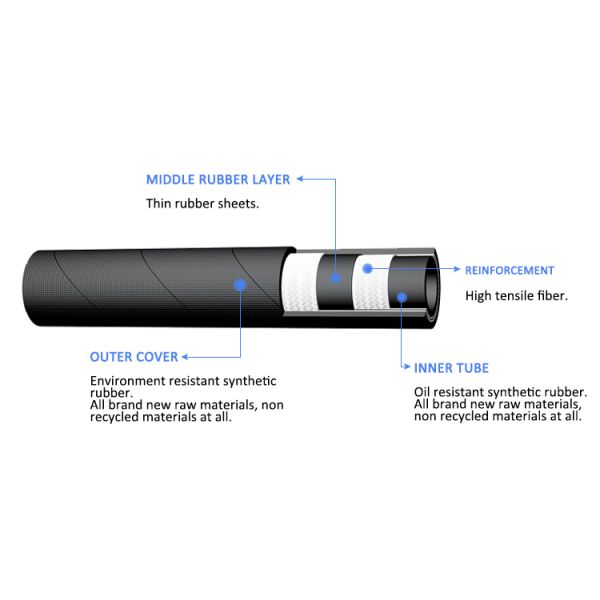

Construction & Specifications
  • Inner Tube: Synthetic Rubber
  • Reinforcement: Two Braids of High Tensile Fiber
  • Outer Cover: Oil & Weather Resistant Synthetic Rubber
  • Temperature Range: -40°C to +100°C (-40°F to +212°F)
  • Standard: EN 854 3TE
  • Options: Smooth Cover / Wrapped Cover
Technical Specifications
Part Number I.D. (inch) I.D. (mm) O.D. (mm) W.P. (MPa) B.P. (MPa) Min. Bend Radius (mm)
P3TE-03 3/16" 5.0 12.7 16.0 64.0 40
P3TE-04 1/4" 6.5 14.3 14.5 58.0 45
P3TE-05 5/16" 8.0 17.0 13.0 52.0 55
P3TE-06 3/8" 9.8 18.5 11.0 44.0 70
P3TE-08 1/2" 12.8 22.1 9.3 37.2 85
P3TE-10 5/8" 16.0 25.9 8.0 32.0 105
P3TE-12 3/4" 19.0 29.4 7.0 28.0 130
P3TE-16 1" 25.4 36.2 5.5 22.0 150
P3TE-20 1 1/4" 32.0 43.2 4.5 18.0 190
P3TE-24 1 1/2" 38.1 50.0 4.0 16.0 240
P3TE-32 2" 51.0 63.2 3.3 13.2 300
Application Range
Suitable for EN 854 1TE/2TE/3TE hydraulic systems. Ideal for various industrial applications requiring reliable low-pressure hydraulic hose solutions with excellent oil and weather resistance properties.
EN 854 3TE Low Pressure Hydraulic Rubber Hose with Oil & Weather Resistant Cover and Two Braids of High Tensile Fiber for -40C to +100C EN 854 3TE Low Pressure Hydraulic Rubber Hose with Oil & Weather Resistant Cover and Two Braids of High Tensile Fiber for -40C to +100C
