UL3068 High Temperature Resistance 300V 150C Silicone Fiberglass Braided Wire for Motors and Generators
UL3068 High Temperature Resistance 300V 150C Silicone Fiberglass Braided Wire for Motors and Generators
UL3068 High Temperature Resistance 300V 150C Silicone Fiberglass Braided Wire for Motors and Generators
UL3068 High Temperature Resistance 300V 150C Silicone Fiberglass Braided Wire for Motors and Generators
UL3068 High Temperature Resistance 300V 150C Silicone Fiberglass Braided Wire for Motors and Generators
UL3068 High Temperature Resistance 300V 150C Silicone Fiberglass Braided Wire for Motors and Generators
UL3068 High Temperature Resistance 300V 150C Silicone Fiberglass Braided Wire for Motors and Generators
UL3068 High Temperature Resistance 300V 150C Silicone Fiberglass Braided Wire for Motors and Generators
UL3068 High Temperature Resistance 300V 150C Silicone Fiberglass Braided Wire for Motors and Generators
UL3068 High Temperature Resistance 300V 150C Silicone Fiberglass Braided Wire for Motors and Generators
UL3068 High Temperature Resistance 300V 150C Silicone Fiberglass Braided Wire for Motors and Generators
UL3068 High Temperature Resistance 300V 150C Silicone Fiberglass Braided Wire for Motors and Generators
Specifications
Max Conductor Resistance :
14.6-381 Ω/KM
Rated Voltage :
300 V
Model Number :
UL3068
Insulation Type :
Silicone Rubber
Brand Name :
MYSUN
Conductor Diameter :
0.30-1.49 mm
Diameter Options :
16AWG, 18AWG, 20AWG, 22AWG, 24AWG, 26AWG, 28AWG, 30AWG
Place of Origin :
Guangdong, China
Insulation Diameter :
1.50-2.69 mm
Certification :
ROHS/CCC/VDE/CCC/UL
Price :
Rp 1.387-2.774
Insulation Material :
Rubber
Strand Construction :
7/0.10 to 7/0.49
Nominal Thickness :
0.60 mm
MOQ :
3050
Max Temperature :
150C
Conductor Material :
Copper
Conductor Construction :
Tinned Copper
Unit Length :
305 meter/roll
Wire Type :
UL3068
Conductor Type :
Stranded
Description
UL3068 High Temperature Resistance Silicone Fiberglass Braided Wire
Premium UL3068 certified motor and generator wire designed for high-temperature applications up to 150°C with 300V rating.
Product Images

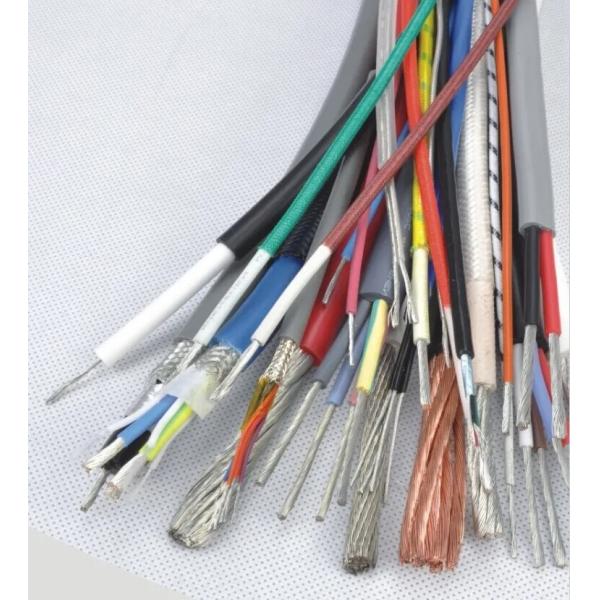

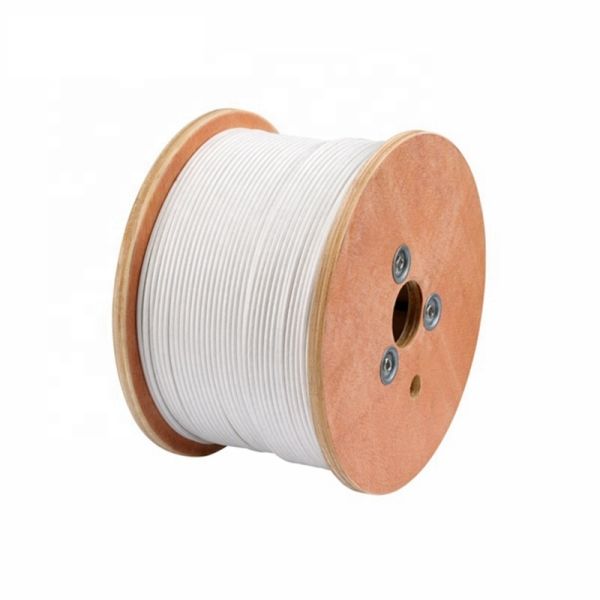

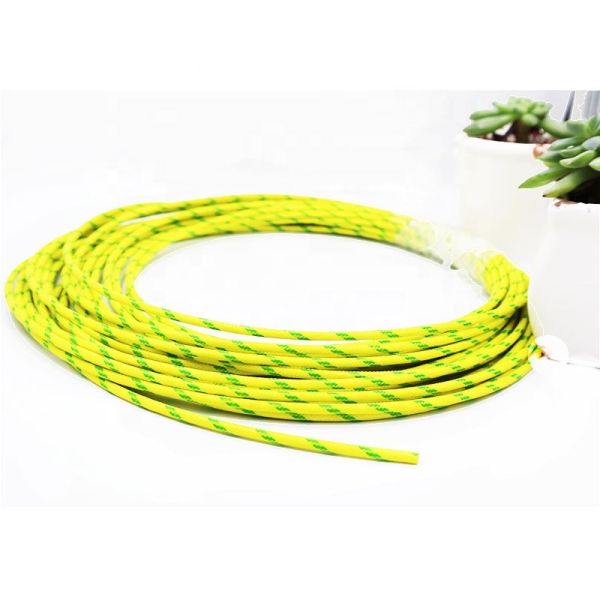

UL3068 High Temperature Resistance 300V 150C Silicone Fiberglass Braided Wire for Motors and Generators UL3068 High Temperature Resistance 300V 150C Silicone Fiberglass Braided Wire for Motors and Generators UL3068 High Temperature Resistance 300V 150C Silicone Fiberglass Braided Wire for Motors and Generators
Technical Specifications
Size (AWG) Construction (No./mm) Diameter (mm) Nominal Thickness (mm) Diameter (mm) Max. Cond. Resistance (Ω/KM) Unit Length (M)(Ft)
307/0.100.300.601.50381610/2000
287/0.1270.380.601.58239610/2000
267/0.160.480.601.68150610/2000
247/0.200.610.601.8194.2610/2000
227/0.2540.770.601.9759.4305/1000
207/0.310.940.602.1436.7305/1000
187/0.391.190.602.3923.2305/1000
167/0.491.490.602.6914.6305/1000
Click here to contact us for a competitive quote
Company Profile
UL3068 High Temperature Resistance 300V 150C Silicone Fiberglass Braided Wire for Motors and Generators UL3068 High Temperature Resistance 300V 150C Silicone Fiberglass Braided Wire for Motors and Generators
Our Products
UL3068 High Temperature Resistance 300V 150C Silicone Fiberglass Braided Wire for Motors and Generators
Applications
UL3068 High Temperature Resistance 300V 150C Silicone Fiberglass Braided Wire for Motors and Generators
Our Overseas Clients
UL3068 High Temperature Resistance 300V 150C Silicone Fiberglass Braided Wire for Motors and Generators
Exhibition
UL3068 High Temperature Resistance 300V 150C Silicone Fiberglass Braided Wire for Motors and Generators
Certifications
UL3068 High Temperature Resistance 300V 150C Silicone Fiberglass Braided Wire for Motors and Generators
Frequently Asked Questions
  • Who Are We? Professional manufacturer of high-temperature wires and cables with 26 years of experience, headquartered in Shenzhen with production bases in Dongguan and Jingzhou.
  • What Can We Provide? High-temperature wires and cables, silicone tubing, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
  • Why Choose Us? Free samples, competitive pricing, high quality standards, and customized services.
  • What Certifications Do We Have? UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC certification.
  • What Services Can We Provide? Accepted delivery terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted payment: USD, EUR, CNY via T/T, L/C, PayPal, Western Union, Cash.
