UL3122 Fiberglass Braided Wire with 300V Rated Voltage and 200C High Temperature Silicone Rubber Insulation and Tinned Copper Conductor
UL3122 Fiberglass Braided Wire with 300V Rated Voltage and 200C High Temperature Silicone Rubber Insulation and Tinned Copper Conductor
UL3122 Fiberglass Braided Wire with 300V Rated Voltage and 200C High Temperature Silicone Rubber Insulation and Tinned Copper Conductor
UL3122 Fiberglass Braided Wire with 300V Rated Voltage and 200C High Temperature Silicone Rubber Insulation and Tinned Copper Conductor
UL3122 Fiberglass Braided Wire with 300V Rated Voltage and 200C High Temperature Silicone Rubber Insulation and Tinned Copper Conductor
UL3122 Fiberglass Braided Wire with 300V Rated Voltage and 200C High Temperature Silicone Rubber Insulation and Tinned Copper Conductor
UL3122 Fiberglass Braided Wire with 300V Rated Voltage and 200C High Temperature Silicone Rubber Insulation and Tinned Copper Conductor
UL3122 Fiberglass Braided Wire with 300V Rated Voltage and 200C High Temperature Silicone Rubber Insulation and Tinned Copper Conductor
UL3122 Fiberglass Braided Wire with 300V Rated Voltage and 200C High Temperature Silicone Rubber Insulation and Tinned Copper Conductor
UL3122 Fiberglass Braided Wire with 300V Rated Voltage and 200C High Temperature Silicone Rubber Insulation and Tinned Copper Conductor
UL3122 Fiberglass Braided Wire with 300V Rated Voltage and 200C High Temperature Silicone Rubber Insulation and Tinned Copper Conductor
UL3122 Fiberglass Braided Wire with 300V Rated Voltage and 200C High Temperature Silicone Rubber Insulation and Tinned Copper Conductor
Specifications
Model Number :
UL3122
Brand Name :
MYSUN
Place of Origin :
Guangdong, China
Certification :
ROHS/CCC/VDE/CCC/UL
MOQ :
3050
Price :
$0.18-0.65
Conductor Material :
Tinned Copper
Diameter :
16 AWG, 18 AWG, 20 AWG, 22 AWG, 24 AWG, 1.25mm2, 0.5mm2, 0.75mm2, 1.5mm2
Insulation Material :
Silicone Rubber
Rated Voltage :
300V
Conductor Type :
Stranded
Temperature Rating :
200C
Unit Length :
305 meter/roll
Max Conductor Resistance :
143 Ω/KM (26 AWG), 89.3 Ω/KM (24 AWG), 56.4 Ω/KM (22 AWG), 35.2 Ω/KM (20 AWG), 22.2 Ω/KM (18 AWG), 14 Ω/KM (16 AWG)
Insulation Thickness :
0.60mm (26 AWG), 0.65mm (24 AWG)
Conductor Diameter :
0.48mm (26 AWG), 0.61mm (24 AWG), 0.77mm (22 AWG), 0.94mm (20 AWG), 1.19mm (18 AWG), 1.49mm (16 AWG)
Overall Diameter :
1.68mm (26 AWG), 1.81mm (24 AWG), 1.97mm (22 AWG), 2.14mm (20 AWG), 2.39mm (18 AWG), 2.69mm (16 AWG)
Conductor Construction :
7/0.16mm (26 AWG), 7/0.20mm (24 AWG), 7/0.254mm (22 AWG), 7/0.31mm (20 AWG), 7/0.39mm (18 AWG), 7/0.49mm (16 AWG)
Strand Count :
7 strands (26-16 AWG), 1 strand (24-16 AWG), 11 strands (24 AWG), 17 strands (22 AWG), 26 strands (20 AWG), 41 strands (18 AWG), 26 strands (16 AWG)
Cross Section Area :
0.30mm², 0.50mm², 0.75mm², 1.00mm², 1.25mm²
Strand Diameter :
0.16mm (26-18 AWG), 0.18mm (0.30-1.25mm²)
Description

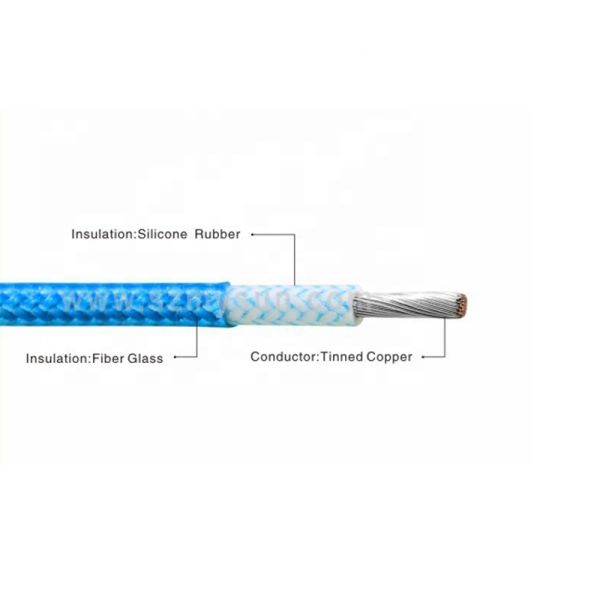

UL3122 300V 200°C Tinned Copper High Temperature Silicone Rubber Fiberglass Braided Motor Wire
Seeking Country Agents for a Win-Win Partnership
UL3122 Fiberglass Braided Wire with 300V Rated Voltage and 200C High Temperature Silicone Rubber Insulation and Tinned Copper Conductor
Product Specifications
Conductor Construction (No./mm) Diameter (mm) Nominal Thickness (mm) Diameter (mm) Max. Cond Resistance (Ω/KM) Unit Length (M)(Ft)
267/0.160.480.601.68143305/1000
247/0.200.611.8189.3
227/0.2540.771.9756.4
207/0.310.942.1435.2
187/0.391.192.3922.2
167/0.491.492.6914
241/0.500.500.651.8089.3305/1000
221/0.650.651.9556.4
201/0.810.812.1135.2
181/1.021.022.3222.2
161/1.201.202.5014
2411/0.160.610.601.8189.3305/1000
2217/0.160.761.9656.4
2026/0.160.942.1435.2
1841/0.161.182.3822.2
1626/0.2541.492.6914
0.30mm²12/0.180.710.601.9159.78305/1000
0.50mm²20/0.180.922.1240.1
0.75mm²30/0.181.132.3326.7
1.00mm²40/0.181.312.5120
1.25mm²50/0.181.462.6614.35
Click here to contact us for a competitive quote
Company Profile
UL3122 Fiberglass Braided Wire with 300V Rated Voltage and 200C High Temperature Silicone Rubber Insulation and Tinned Copper Conductor UL3122 Fiberglass Braided Wire with 300V Rated Voltage and 200C High Temperature Silicone Rubber Insulation and Tinned Copper Conductor
Our Products
UL3122 Fiberglass Braided Wire with 300V Rated Voltage and 200C High Temperature Silicone Rubber Insulation and Tinned Copper Conductor
Applications
UL3122 Fiberglass Braided Wire with 300V Rated Voltage and 200C High Temperature Silicone Rubber Insulation and Tinned Copper Conductor
Our Overseas Clients
UL3122 Fiberglass Braided Wire with 300V Rated Voltage and 200C High Temperature Silicone Rubber Insulation and Tinned Copper Conductor
Exhibition
UL3122 Fiberglass Braided Wire with 300V Rated Voltage and 200C High Temperature Silicone Rubber Insulation and Tinned Copper Conductor
Certifications
UL3122 Fiberglass Braided Wire with 300V Rated Voltage and 200C High Temperature Silicone Rubber Insulation and Tinned Copper Conductor
Frequently Asked Questions
1. Who Are We?
We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, and our two production bases are located in Dongguan, Guangdong, China and Jingzhou, Hubei, China.
2. What Can We Provide?
We can provide high-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, wiring harnesses.
3. Why Choose Us?
A. Free Sample. B. Competitive Price. C. High Quality Standard. D. Customized Service.
4. What Certifications Do We Have?
We have UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC Certification.
5. What Services Can We Provide?
Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted Payment Currency: USD, EUR, CNY. Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash.
