UL3075 10AWG Silicone Fiberglass Braided Wire with 600V Rated Voltage and 200C Temperature Rating for Industrial Heaters
UL3075 10AWG Silicone Fiberglass Braided Wire with 600V Rated Voltage and 200C Temperature Rating for Industrial Heaters
UL3075 10AWG Silicone Fiberglass Braided Wire with 600V Rated Voltage and 200C Temperature Rating for Industrial Heaters
UL3075 10AWG Silicone Fiberglass Braided Wire with 600V Rated Voltage and 200C Temperature Rating for Industrial Heaters
UL3075 10AWG Silicone Fiberglass Braided Wire with 600V Rated Voltage and 200C Temperature Rating for Industrial Heaters
UL3075 10AWG Silicone Fiberglass Braided Wire with 600V Rated Voltage and 200C Temperature Rating for Industrial Heaters
UL3075 10AWG Silicone Fiberglass Braided Wire with 600V Rated Voltage and 200C Temperature Rating for Industrial Heaters
UL3075 10AWG Silicone Fiberglass Braided Wire with 600V Rated Voltage and 200C Temperature Rating for Industrial Heaters
UL3075 10AWG Silicone Fiberglass Braided Wire with 600V Rated Voltage and 200C Temperature Rating for Industrial Heaters
UL3075 10AWG Silicone Fiberglass Braided Wire with 600V Rated Voltage and 200C Temperature Rating for Industrial Heaters
UL3075 10AWG Silicone Fiberglass Braided Wire with 600V Rated Voltage and 200C Temperature Rating for Industrial Heaters
UL3075 10AWG Silicone Fiberglass Braided Wire with 600V Rated Voltage and 200C Temperature Rating for Industrial Heaters
Specifications
Model Number :
UL3075
Brand Name :
MYSUN
Place of Origin :
Guangdong, China
Certification :
ROHS/CCC/VDE/CCC/UL
MOQ :
1000
Price :
AED 2.25-2.62
Conductor Material :
Copper
Wire Diameter :
10AWG
Insulation Material :
Rubber
Rated Voltage :
600V
Conductor Type :
Stranded
Max Temperature :
200C
Insulation Type :
Silicone Rubber
Conductor Construction :
19/0.6135/0.457/0.98
Conductor Diameter :
3.07mm
Insulation Thickness :
1.45mm
Overall Diameter :
5.97mm
Max Conductor Resistance :
3.55Ω/KM
Unit Length :
305 meter/roll
Conductor Composition :
Tinned Copper
Wire Type :
Insulated
Description

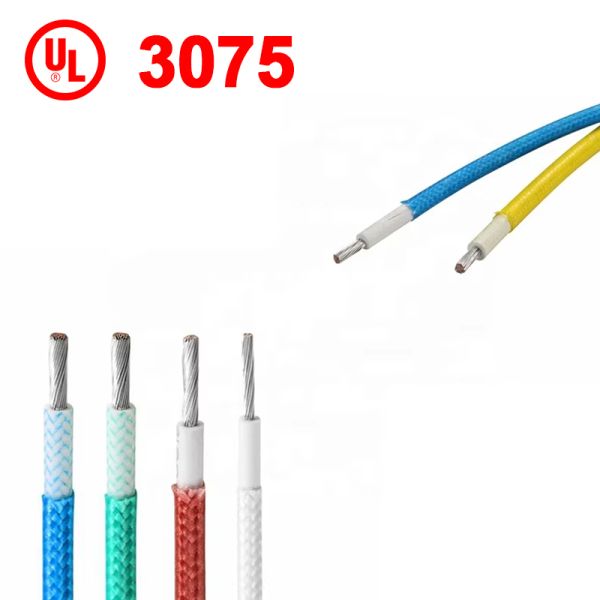

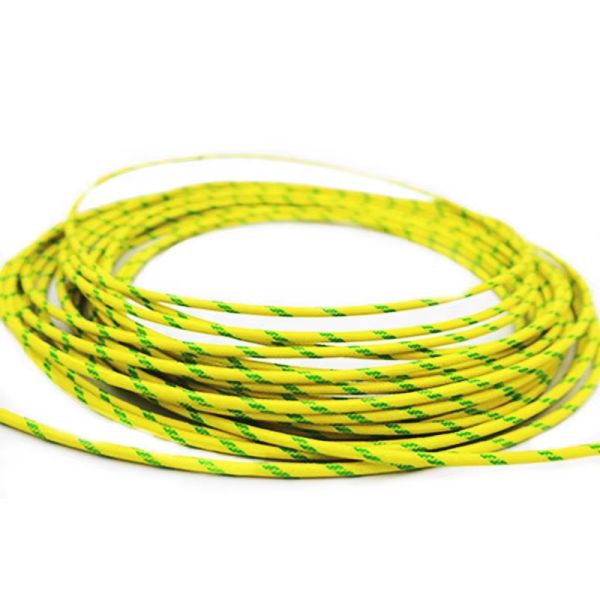

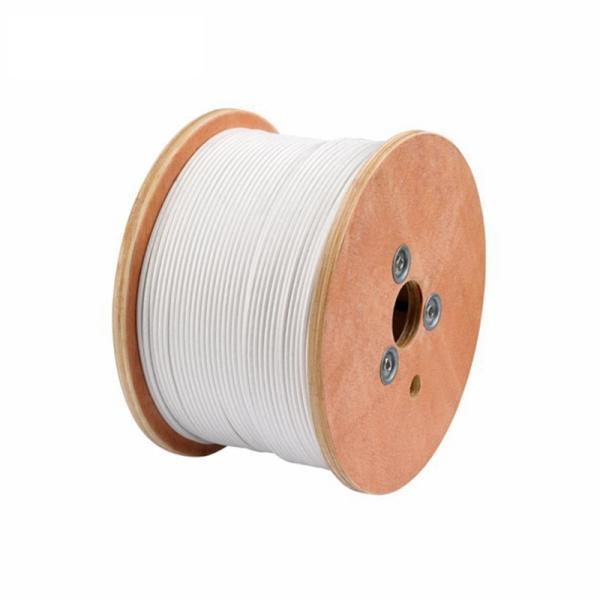

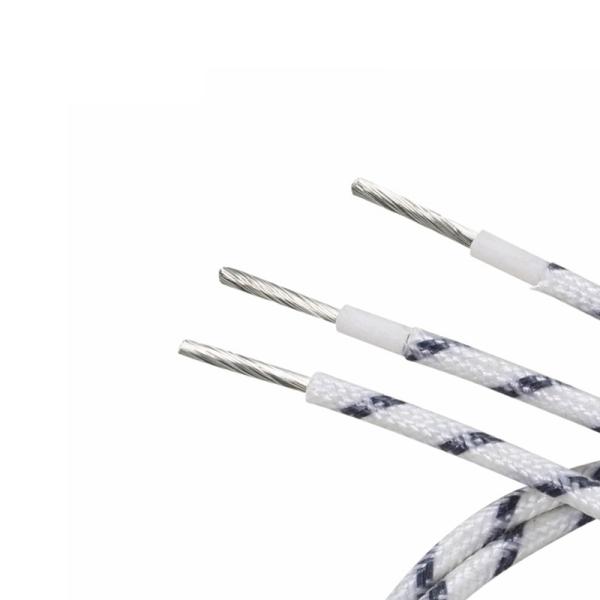

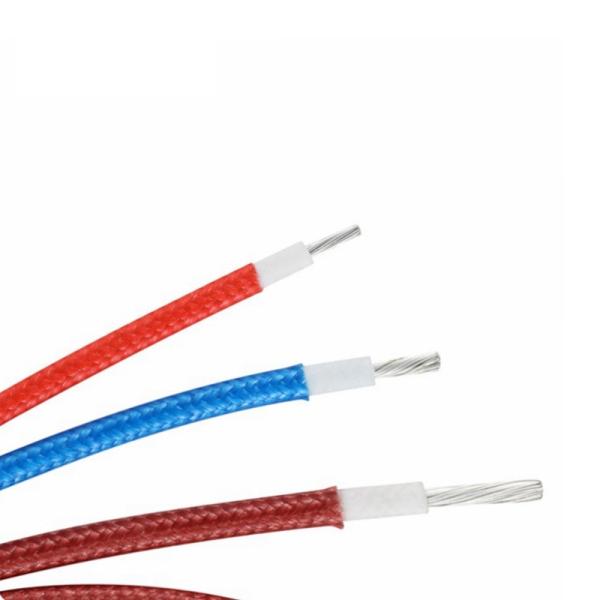

UL3075 10AWG Silicone Fiberglass Braided Wire
600V 200°C Flexible Industrial Warm Air Blower Wire
Seeking Country Agents for a Win-Win Partnership
UL3075 10AWG Silicone Fiberglass Braided Wire with 600V Rated Voltage and 200C Temperature Rating for Industrial Heaters
Product Specifications
UL3075 Specification Conductor Insulation Max Conductor Resistance (Ω/KM) Unit Length (M)(Ft)
Size (AWG) Construction (No./mm) Diameter (mm) Nominal Thickness (mm) Diameter (mm)
10 19/0.6135/0.457/0.98 3.07 1.45 5.97
3.55 | 305/1000
Click here to contact us for a competitive quote
Company Profile
UL3075 10AWG Silicone Fiberglass Braided Wire with 600V Rated Voltage and 200C Temperature Rating for Industrial Heaters UL3075 10AWG Silicone Fiberglass Braided Wire with 600V Rated Voltage and 200C Temperature Rating for Industrial Heaters
Our Products
UL3075 10AWG Silicone Fiberglass Braided Wire with 600V Rated Voltage and 200C Temperature Rating for Industrial Heaters
Applications
UL3075 10AWG Silicone Fiberglass Braided Wire with 600V Rated Voltage and 200C Temperature Rating for Industrial Heaters
Our Overseas Clients
UL3075 10AWG Silicone Fiberglass Braided Wire with 600V Rated Voltage and 200C Temperature Rating for Industrial Heaters
Exhibition
UL3075 10AWG Silicone Fiberglass Braided Wire with 600V Rated Voltage and 200C Temperature Rating for Industrial Heaters
Certifications
UL3075 10AWG Silicone Fiberglass Braided Wire with 600V Rated Voltage and 200C Temperature Rating for Industrial Heaters
Frequently Asked Questions
  • Who Are We? We are a professional manufacturer of high-temperature wires and cables with 27 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, and our two production bases are located in Dongguan, Guangdong, China and Jingzhou, Hubei, China.
  • What Can We Provide? We provide high-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
  • Why Choose Us? Free samples, competitive pricing, high quality standards, and customized services.
  • What Certifications Do We Have? UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC certification.
  • What Services Can We Provide? Accepted delivery terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted payment currency: USD, EUR, CNY. Accepted payment type: T/T, L/C, PayPal, Western Union, Cash.
