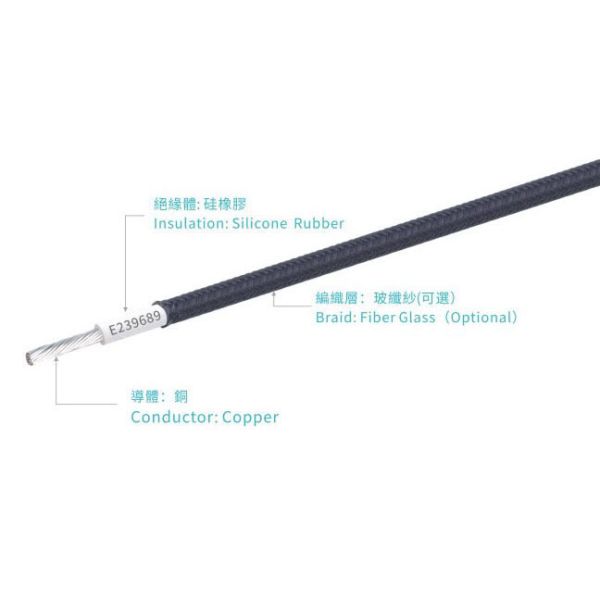

UL3071 Certified 600V 200C High Temperature Silicone Fiberglass Braided Wire for Convection Heaters
UL3071 Certified 600V 200C High Temperature Silicone Fiberglass Braided Wire for Convection Heaters
UL3071 Certified 600V 200C High Temperature Silicone Fiberglass Braided Wire for Convection Heaters
UL3071 Certified 600V 200C High Temperature Silicone Fiberglass Braided Wire for Convection Heaters
UL3071 Certified 600V 200C High Temperature Silicone Fiberglass Braided Wire for Convection Heaters
UL3071 Certified 600V 200C High Temperature Silicone Fiberglass Braided Wire for Convection Heaters
UL3071 Certified 600V 200C High Temperature Silicone Fiberglass Braided Wire for Convection Heaters
UL3071 Certified 600V 200C High Temperature Silicone Fiberglass Braided Wire for Convection Heaters
UL3071 Certified 600V 200C High Temperature Silicone Fiberglass Braided Wire for Convection Heaters
UL3071 Certified 600V 200C High Temperature Silicone Fiberglass Braided Wire for Convection Heaters
UL3071 Certified 600V 200C High Temperature Silicone Fiberglass Braided Wire for Convection Heaters
UL3071 Certified 600V 200C High Temperature Silicone Fiberglass Braided Wire for Convection Heaters
Specifications
Model Number :
UL3071
Brand Name :
MYSUN
Place of Origin :
Guangdong, China
Certification :
ROHS/CCC/VDE/CCC/UL
MOQ :
3050
Price :
$0.12-0.33
Rated voltage :
600V
Rated temperature :
200 Degree
Conductor material :
Copper
Conductor type :
Stranded
Insulation material :
Silicone Rubber
Wire gauge :
13AWG, 14AWG, 16AWG, 18AWG
Conductor diameter :
1.19mm (18AWG), 1.49mm (16AWG), 1.87mm (14AWG), 2.07mm (13AWG)
Insulation thickness :
0.93mm
Overall diameter :
3.05mm (18AWG), 3.35mm (16AWG), 3.73mm (14AWG), 3.93mm (13AWG)
Max conductor resistance :
23.2Ω/KM (18AWG), 14.6Ω/KM (16AWG), 8.96Ω/KM (14AWG), 6.97Ω/KM (13AWG)
Unit length :
305m/roll
Conductor construction :
7/0.39 (18AWG), 7/0.49 (16AWG), 41/0.254 (14AWG), 50/0.254 (13AWG)
Tinned conductor :
Yes
Color customization :
Available
Package length :
305 meter/roll
Description
Seeking Country Agents for a Win-Win Partnership
Products Description
UL3071 Certified 600V 200C High Temperature Silicone Fiberglass Braided Wire for Convection Heaters
UL3071 Certified 600V 200C High Temperature Silicone Fiberglass Braided Wire for Convection Heaters
Specification
UL3071
Conductor
Insulation
Max.Cond
Resistance
(Ω/KM)
Unit length
(M)(Ft)
Size
(AWG)
Construction
(No./mm)
Diameter
(mm)
Nominal Thickness
(mm)
Diameter
(mm)


18
7/0.39
1.19
0.93
3.05
23.2
305/1000
16
7/0.49
1.49
0.93
3.35
14.6
305/1000
14
41/0.254
1.87
0.93
3.73
8.96
305/1000
13
50/0.254
2.07
0.93
3.93
6.97
305/1000
Click here to contact us for a competitive quote
Company profile
UL3071 Certified 600V 200C High Temperature Silicone Fiberglass Braided Wire for Convection Heaters
UL3071 Certified 600V 200C High Temperature Silicone Fiberglass Braided Wire for Convection Heaters
Our Products
UL3071 Certified 600V 200C High Temperature Silicone Fiberglass Braided Wire for Convection Heaters
Application
UL3071 Certified 600V 200C High Temperature Silicone Fiberglass Braided Wire for Convection Heaters
Our Overseas Clients
UL3071 Certified 600V 200C High Temperature Silicone Fiberglass Braided Wire for Convection Heaters
Exhibition
UL3071 Certified 600V 200C High Temperature Silicone Fiberglass Braided Wire for Convection Heaters
Certifications
UL3071 Certified 600V 200C High Temperature Silicone Fiberglass Braided Wire for Convection Heaters
FAQ
1. Who Are We? We Are A Professional Manufacturer Of High-temperature Wires And Cables With 26 Years Of Electric Wire Experience. Our Headquarter Is Located In Shenzhen, Guangdong, China, And Our Two Production Bases Are Located In Dongguan, Guangdong, China And Jingzhou, Hubei, China. 2. What Can We Provide? We Can Provide High-temperature Wires And Cables, Silicone Tubing – Including Silicone Rubber Wire, XLPE, FEP/PFA/ETFE/PTFE Wire, New Energy Cable, Wiring Harnesses. 3. Why Choose Us? A.Free Sample. B.Competitive Price. C.High Quality Standard. D.Customized Service. 4. What Certifications Do We Have？ We Have UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC Certification. 5.What Services Can We Provide? Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU: Accepted Payment Currency: USD, EUR, CNY. Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash.
