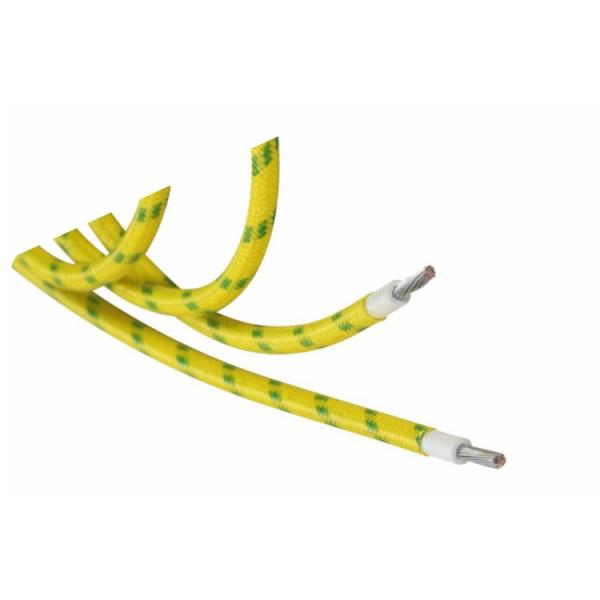

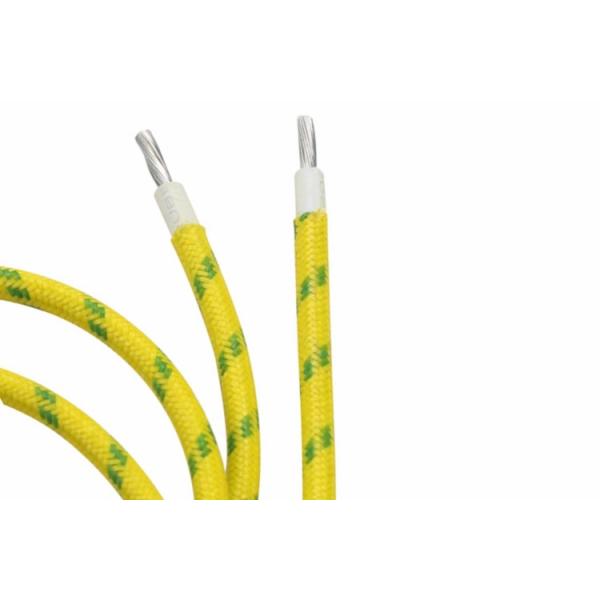

150 Celsius 300V Silicone Rubber Wire Insulated AWM3068 Construction 7/0.10mm
150 Celsius 300V Silicone Rubber Wire Insulated AWM3068 Construction 7/0.10mm
150 Celsius 300V Silicone Rubber Wire Insulated AWM3068 Construction 7/0.10mm
150 Celsius 300V Silicone Rubber Wire Insulated AWM3068 Construction 7/0.10mm
Specifications
Brand Name :
MMYSUN
Model Number :
3068
Certification :
UL ROHS CCC
Place of Origin :
SHENZHEN. GUANGDONG
MOQ :
305M
Price :
USD0.2/M
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
300,000M PER DAY
Delivery Time :
5-8 days
Packaging Details :
CARTON
Material :
Red, Black, Green, Blue, Brown, White, Yellow/green, etc
Conductor material :
Copper,copper or tinned copper
Application :
mechanical and electrical machine etc
Type :
Insulated
Insulation material :
Fiberglass,PVC,Rubber
Product name :
Copper Core PVC Insulation Wire
Description

Contact Now
Detailed Product Description
Voltage: 300V Temperature: 250C
Insulation: Fiberglass Conductor: Nickel-plated Copper Wire Or Silver-plated Copper Wire
Color: All Colors Are Available Standard: UL758
Usage: Home Application,LED Lamp, Oven,industrial Machine Size: 12-30awg

Silicone fiberglass wire UL3254 electrical wire

Specifications:

Nominal voltage: 300V

Temperature range: 250C

Standard: UL 758

Conductor: Nickel-plated copper wire or silver-plated copper wire

Insulation: Silicone Rubber

Insulation: Fiber Glass

size:12-30awg

color:all colors are available

package:305m/roll or customied

Product dimensions:

Conductor Insulation Max.cond
resistance
(Ω/km)		 Unit Length
(m)(Ft)
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Nominal Thickness
(mm)		 Diameter
(mm)
30 7/0.10 0.30 0.93 2.16 361 610/2000
28 7/0.127 0.38 2.22 227
26 7/0.16 0.48 2.34 143
24 7/0.20 0.61 2.46 89.3
22 7/0.254 0.77 2.62 56.4 305/1000
20 7/0.30 0.92 2.79 35.2
18 7/0.39 1.19 3.03 22.2
16 7/0.49 1.49 3.33 14
14 41/0.254 1.87 3.75 8.78
12 19/0.47 2.36 4.22 5.53

advantage

this wire offers the following benefits, making it ideal for demanding industrial applications:

Flexible Temperature Range:

Silicone rubber insulated wire is ideal for applications where temperature varies frequently.

Flexible Stranding:

Flexible conductor stranding makes the wire suitable for application areas with cramped spaces.

Chemical and Oil Resistance:

Good resistance to oils, gasoline, and certain chemicals enhances the performance of this wire in extreme environments.

Enhanced Safety:

The halogen free silicone rubber insulation does not release fumes or gases when ignited.

This increases the safety of employees who work with electronic equipment.

150 Celsius 300V Silicone Rubber Wire Insulated AWM3068 Construction 7/0.10mm150 Celsius 300V Silicone Rubber Wire Insulated AWM3068 Construction 7/0.10mm
