Specifications
Brand Name :
MYSUN
Model Number :
UL3123
Certification :
UL
Place of Origin :
CHINA
MOQ :
6100 meters
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
one million meters each day
Delivery Time :
7-10 working days
Packaging Details :
carton, pallet
Insulation :
silicone rubber
Conductor :
tinned copper
Size :
16awg-30awg
Color :
black, red, white, yellow, blue, green, grey, yellow-green, pink
Rated voltage :
600V
Working temp :
150C
Use in :
coffee maker, oven, rice cooker and other home appliance
SPQ :
305m/roll
Package :
reel, carton, pallet
Jacket :
fiberglass braided
Description

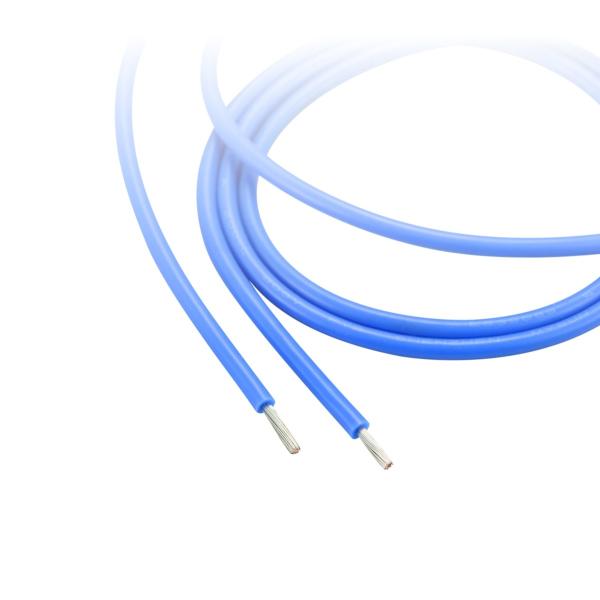

electrical flexible Wire UL312 20awg 18awg 16awg for home appliance

Specification:

Rated voltage: 300V

Rated temperature: 200C

UL standard: UL758

Applications: this wire widely sued for rice cooker, oven, headlamp and other home appliance.

Cable dimensions:

Conductor Insulation Max.Cond Resistance Unit length
Size
(AWG)
Construction
(No./mm)
Diameter
(mm)
Nominal Thickness
(mm)
Diameter
(mm)
(Ω/KM) (M)(Ft)
30 7/0.1 0.3 0.78 1.86 361 305/1000
28 7/0.12 0.36 0.78 1.92 227 305/1000
26 7/0.16 0.48 0.78 2.04 143 305/1000
24 7/0.20 0.6 0.78 2.17 89.3 305/1000
22 7/0.254 0.76 0.78 2.32 56.4 305/1000
20 7/0.31 0.93 0.78 2.49 35.2 305/1000
18 7/0.39 1.17 0.78 2.73 22.2 305/1000
16 7/0.49 1.47 0.78 3.03 14 305/1000

MYSUN Wire Features :

China supplier ul3123 600v 150c  silicone rubber tinned copper wireChina supplier ul3123 600v 150c  silicone rubber tinned copper wire

Certifications:

Since starting production in 2002, MYSUN has passed product authentication, including UL, cUL, VDE, CSA and CCC. Also got ISO9001 quality management system in 2005. In order to provide better service, MYSUN passed ISO14001 environment management system while completing its revision changing of ISO9001 in the year 2010 and successfully obtained IATF16949 certificate in 2015. The complete quality guarantee system and advanced testing equipment provide high class products.

China supplier ul3123 600v 150c  silicone rubber tinned copper wire

Test Equipment:

"Quality is guarantee for existence" is the guideline that MYSUN always uphold. Advanced manufacturing and testing equipment, selected raw materials, a sound management system, fully guarantee the reliability of the products.

China supplier ul3123 600v 150c  silicone rubber tinned copper wire

Why choose MYSUN?
1. Full experience of 20 years in manufacturing high temperature cables/wires
2. Strict quality inspection of ISO9001 quality management, ISO14001 and IATF14969 system
3. Certifications for our products including UL, cUL, CSA, VDE,CCC, ROHS, REACH etc.
4. Free samples(in stock)
5. Delivery in one week for your goods
6. Several different payment methods,such as T/T,Western Union and L/C
7. Strong R&D Team to design and test products
8. Easy one-stop purchasing
9. Quick after-sale technical advice and guidance

China supplier ul3123 600v 150c  silicone rubber tinned copper wire

China supplier ul3123 600v 150c  silicone rubber tinned copper wireChina supplier ul3123 600v 150c  silicone rubber tinned copper wire

Shipment:

1. by express

2. by sea

Payment terms:

LC, TT, Western Union, Money Gram and PayPal

Delivery:

Sample order: 1-3 working days

Big order: 5-10 working days

Customized order: 10-15 working days
