80W 100W LED Outdoor Stadium Lighting Lumileds Luxeon 5050
80W 100W LED Outdoor Stadium Lighting Lumileds Luxeon 5050
80W 100W LED Outdoor Stadium Lighting Lumileds Luxeon 5050
80W 100W LED Outdoor Stadium Lighting Lumileds Luxeon 5050
80W 100W LED Outdoor Stadium Lighting Lumileds Luxeon 5050
80W 100W LED Outdoor Stadium Lighting Lumileds Luxeon 5050
80W 100W LED Outdoor Stadium Lighting Lumileds Luxeon 5050
80W 100W LED Outdoor Stadium Lighting Lumileds Luxeon 5050
Specifications
Brand Name :
Leyond
Model Number :
LY-ST45080XX
Certification :
CE ROHS ENEC CB
Place of Origin :
China
MOQ :
2
Price :
Negociatable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10000-30000/month
Delivery Time :
5-8day
Packaging Details :
H*W*L
Product Name :
LED Stadium Light
Lamp Power :
80W,100W
LED Chip :
Lumileds Luxeon 5050
LED Driver :
Meanwell series
Whole lamp efficiency :
> 160Lm/W
Lamp body material :
Die Custing Aluminum
Working temperature(℃) :
-30 - 60
Warranty :
5 years
Description

80W 100W LED Outdoor Stadium Lighting Lumileds Luxeon 5050

LED Outdoor Stadium lighting 80W with 160Lm/W high efficiency for sports lighting fixture.

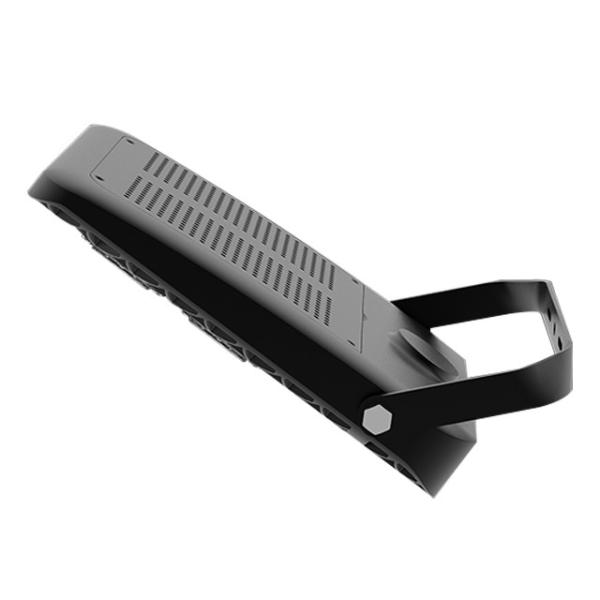

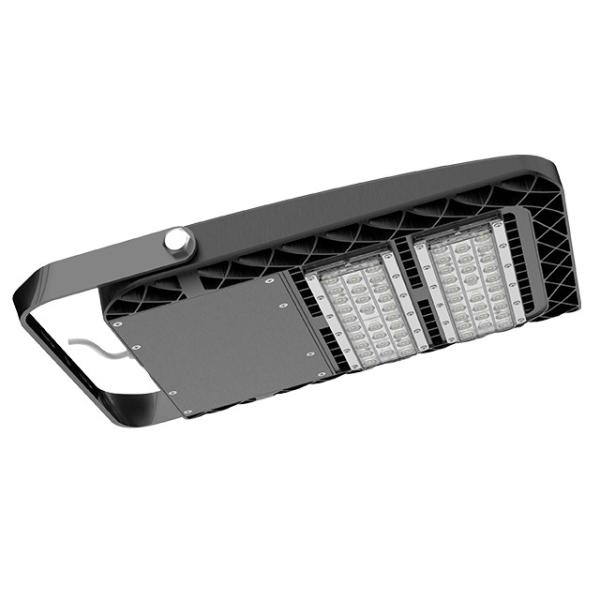

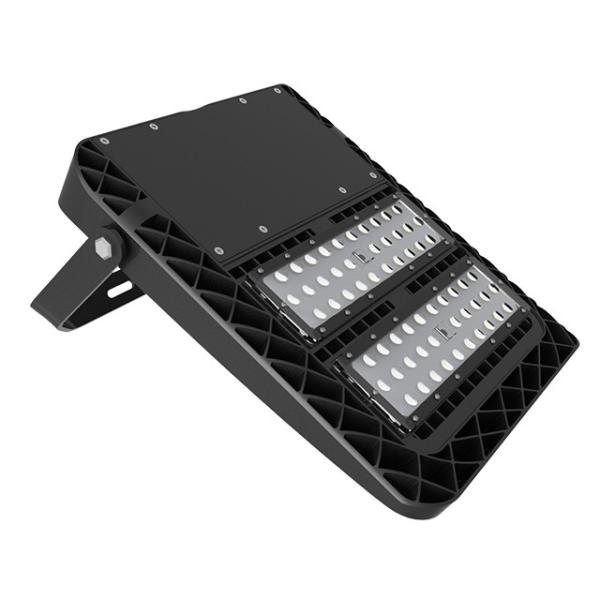

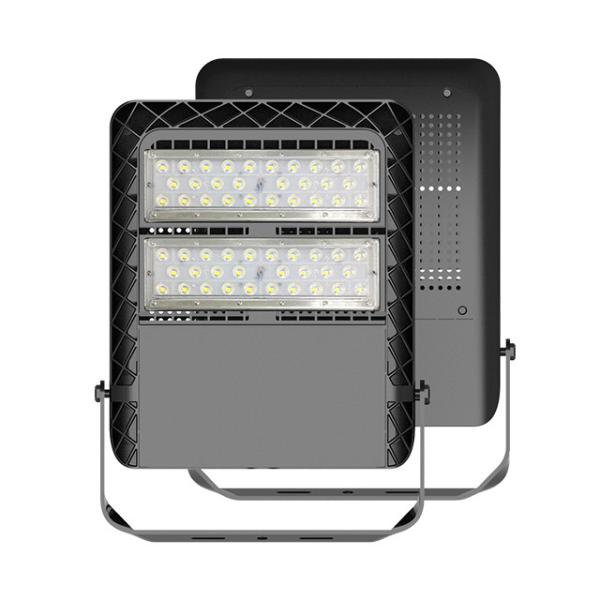

01. Apperance:

80W 100W LED Outdoor Stadium Lighting Lumileds Luxeon 5050

02. Features:

  • Adoption LEYOND exclusive Lens with light transmittance up to 98%.
  • There are 25°, 60°, 90° beam angle options for the Lens.
  • High quality power supply, input voltage 85-305V. The power efficiency is more than 90%, power factor greater than 0.98.
  • High luminous efficiency, Whole lamp output light efficiency >160LM/W.
  • Duct type thermal design, reduce the weight of the light and ensure good heat dissipation, lower luminous decay, and also extend life span of the leds.
  • Nice appearance and non-fouling properties, Protection class IP66.
  • Work without strobe, fast transient response；A wide range of working voltage.

03. Specification:

Par NO

Parameter

 LY-ST45080PW LY-ST45080WW LY-ST45080NW
Input voltage AC90V～305V 50/60HZ
System consumption(W) 80 80 80
Luminous flux(lm) 13200 12400 12800
Chip Brand LUXEON 5050 LUXEON 5050 LUXEON 5050
Beam Angle 25°,60°,90° 25°,60°,90° 25°,60°,90°
CRI ＞70
Color Temperature Warm white:2700-3200K / Neutral white:4000-4500K / Pure white:5000-6500K
LED Driver MEAN WELL ELG-100 / XLG-100
Luminous efficiency(lm/w) ＞160
Lifespan(hrs) ＞50000
IP Rating IP66
Dimmable YES＆NO YES＆NO YES＆NO

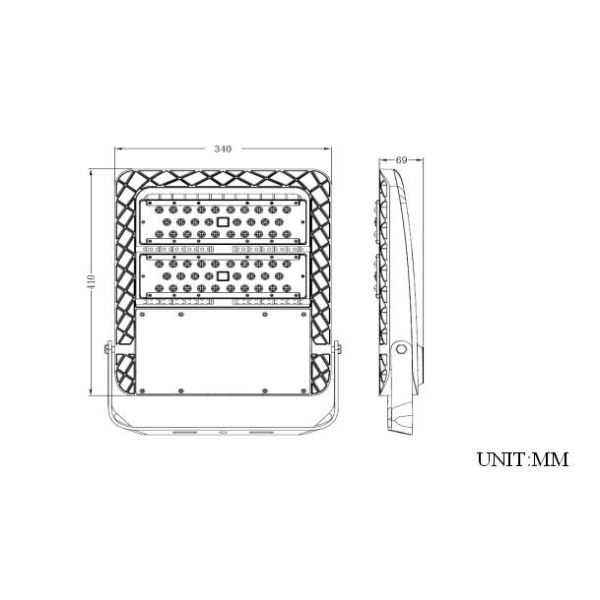

Size(mm) 540x340x69 540x340x69 540x340x69
Net Weigh(kg) 6.8 6.8 6.8
Package Size(mm) 560*370*100 560*370*100 560*370*100
Package Quantity(Pcs) 1 1 1
Gross Weigh(kg) 8.0 8.0 8.0

04. Application:

It is applicable to playground lighting ,warehouse lighting, plaza lighting, tunnel lighting ,court lighting and so on.

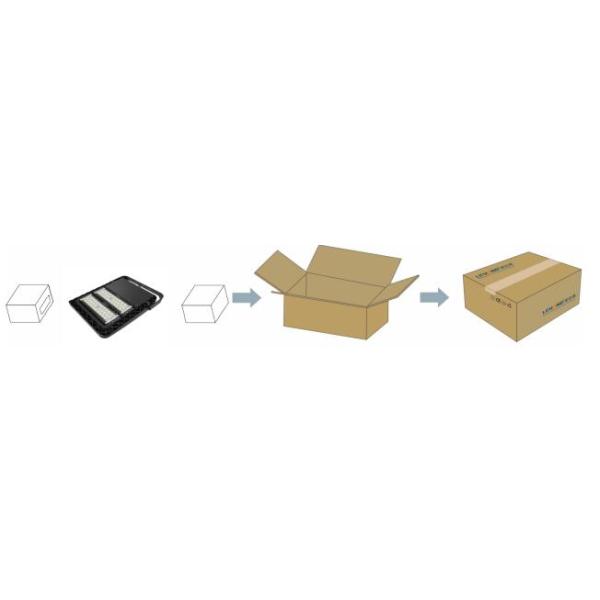

05. Package:

Inner box Size: 500mm×370mm×100mm

Outer box Size: 520mm×385mm×240mm (2 PCS LED Stadium Light)

80W 100W LED Outdoor Stadium Lighting Lumileds Luxeon 5050

06. Optional Function:

Daylight automatically controlling ON / OFF

  • Turn-On Light Level: 10 Lux or at customer’s request
  • Turn-Off Light Level: 50 Lux or at customer’s request
  • Turn-On Time Delay: 10-15s
  • Turn-Off Time Delay: 10-15s

07. Production:

80W 100W LED Outdoor Stadium Lighting Lumileds Luxeon 5050

08. Testing:

80W 100W LED Outdoor Stadium Lighting Lumileds Luxeon 5050

09. Exhibition:

80W 100W LED Outdoor Stadium Lighting Lumileds Luxeon 5050
