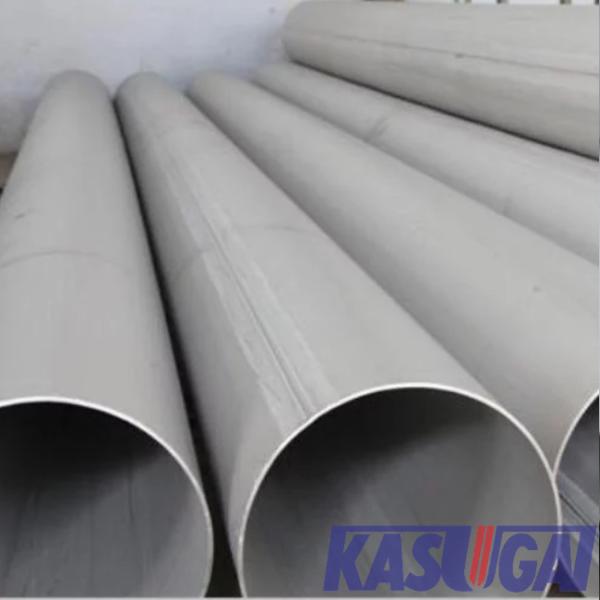

Stainless Steel Welded Tube ASTM A312 TP304L ASME B36.19M
Stainless Steel Welded Tube ASTM A312 TP304L ASME B36.19M
Specifications
Brand Name :
Kasugai
Model Number :
ASTM A312 TP304/L ASME B36.19MWLD SS Pipe
Certification :
ISO PED AD2000
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L / C , T / T
Supply Ability :
500 ton per month
Delivery Time :
30 - 60 working days
Packaging Details :
Seaworthy Packng
Product Name :
ASTM A312 TP304/L ASME B36.19M Welded Stainless Steel Pipe
Size Range :
1/8" to 30"
Standards :
ASTM A312 TP304/L
Wall Thickness :
In accordance with ASME 36.19M
Length :
6.096 m (20′), 12.19 m (40′), 6 m, and 12 m, customized
End Process :
Plain Ends, Beveled Ends, Threaded Ends
Description

ASTM A312 TP304/L ASME B36.19M Welded Stainless Steel Pipe

Specifications: ASME B36.19 is for corrosion resistant piping, designated categorically as stainless, is based on the same principles that formed the background for the development of ANSI/ASME B36.10M, Welded and Seamless Wrought Steel Pipe, and reference is made to this source of information

Product Information

Product Name ASTM A312 TP304/L ASME B36.19M Welded Stainless Steel Pipe
Size Range 1/8” to 30”
Standards ASTM A312 TP304/L
Wall Thickness In accordance with ASME B36.19M
Length 6.096 m (20′), 12.19 m (40′), 6 m, and 12 m, customized
End Process Plain Ends, Beveled Ends, Threaded Ends
Inspection & Test Visual examination, dimensional inspection, PMI chemical analysis, tensile test, flattening test, bend test, eddy-current test, etching test, radiographic examination (for welded pipes), intergranular corrosion test (upon request).

Standards & Materials: ASTM A312 TP304/L

ASTM A312 covers seamless, straight-seam welded, and heavily cold worked welded stainless steel pipe, when larger diameter welded pipes, welding two longitudinal sections is allowed

304L is low carbon 304 Austenitic stainless steel, carbon content not exceeding 0.035%, excellent corrosion resistance suited to a wide range of applications, in Europe, equivalent steel is 1.4307.

ASTM A312 TP304/L Chemical Compositions (%)

Grade C Si Mn Cr Ni Mo S P
TP304 0,08 1,0 2.00 18.0 – 20.0 8.0 – 11.0 – 0,03 0,045
TP304L 0,035 1,0 2.00 18.0 – 20.0 8.0 – 13.0 – 0,03 0,045

ASTM A312 Mechanical Properties

Grade UNS Tensile Strength
Min, Ksi [MPa]		 Yield Strength
Min, Ksi [MPa]
TP304 S30400 75 [515] 30 [205]
TP304L S30403 70 [485] 25 [170]

Dimensions of ASME/ANSI B36.19M Welded and Seamless Wrought Steel Pipe (mm)

NPS　

(inches)

Outside Dia.

(mm)

 Nominal Wall Thickness (mm)
Sch5S(1) Sch10S(1) Sch40S Sch80S
1/8 10.3 --- 1.24 1.73 2.41
1/4 13.7 --- 1.65 2.24 3.02
3/8 17.1 --- 1.65 2.31 3.20
1/2 21.3 1.65 2.11 2.77 3.73
3/4 26.7 1.65 2.11 2.87 3.91
1 33.4 1.65 2.77 3.38 4.55
1¼ 42.2 1.65 2.77 3.56 4.85
1½ 48.3 1.65 2.77 3.68 5.08
2 60.3 1.65 2.77 3.91 5.54
2½ 73 2.11 3.05 5.16 7.01
3 88.9 2.11 3.05 5.49 7.62
3½ 101.6 2.11 3.05 5.74 8.08
4 114.3 2.11 3.05 6.02 8.56
5 141.3 2.77 3.4 6.55 9.53
6 168.3 2.77 3.4 7.11 10.97
8 219.1 2.77 3.76 8.18 12.70
10 273.1 3.40 4.19 9.27 12.70(2)
12 323.9 3.96 4.57 9.53(2) 12.70(2)
14 355.6 3.96 4.78(2) … …
16 406.4 4.19 4.78(2) … …
18 457.2 4.19 4.78(2) … …
20 508 4.78 5.54(2) … …
22 558.8 4.78 5.54(2) … …
24 660.4 5.54 6.35 … …
30 762 6.35 7.92 … …

Notes:

(1)Schedule 5S and 10S wall thicknesses do not permit threading in accordance with ANSI/ASME B1.20.1

(2)These dimensions do not conform to ANSI/ASME B36.1M

ASME B36.19M Nominal Weight of Steel Pipe, Plain Ends (kg/m)

NPS　

(inches)

Outside Dia.

(mm)

 Weight of Steel Pipe, Plain Ends (kg/m)
Sch5S(1) Sch10S(1) Sch40S Sch80S
1/8 10.3 --- 0.28 0.37 0.47
1/4 13.7 --- 0.49 0.63 0.80
3/8 17.1 --- 0.63 0.84 1.10
1/2 21.3 0.80 1.00 1.27 1.62
3/4 26.7 1.03 1.28 1.69 2.20
1 33.4 1.30 2.09 2.50 3.24
1¼ 42.2 1.65 2.70 3.39 4.47
1½ 48.3 1.91 3.11 4.05 5.41
2 60.3 2.40 3.93 5.44 7.48
2½ 73 3.69 5.26 8.63 11.41
3 88.9 4.51 6.45 11.29 15.27
3½ 101.6 5.18 7.40 13.57 18.63
4 114.3 5.84 8.36 16.07 22.32
5 141.3 9.47 11.57 21.77 30.97
6 168.3 11.32 13.84 28.26 42.56
8 219.1 14.79 19.96 42.65 64.64
10 273.1 22.63 27.78 60.31 96.01
12 323.9 31.25 36.00 73.88 132.08
14 355.6 34.36 41.30 … …
16 406.4 41.56 47.29 … …
18 457.2 46.81 53.26 … …
20 508 59.25 68.61 … …
22 558.8 65.24 75.53 … …
24 660.4 82.47 94.45 … …
30 762 118.31 147.36 … …

General Note:

  • 1.4895kg/m=1 lb/ft
  • Weights are given in Kilograms per meter and are for carbon steel pipe with plain ends.
  • The different grades of stainless steel permit considerable variations in weight. The ferritic stainless steels may be about 5% less, and the austenitic stainless steels about 2% greater than the values shown in this table, which are based on weights for carbon steel.
