Stainless Steel Seamless Pipe – EN 1.4301 / EN 10216-5
Stainless Steel Seamless Pipe – EN 1.4301 / EN 10216-5
Specifications
Brand Name :
KASUGAI
Model Number :
EN 1.4301 (AISI 304 / SUS 304)
Place of Origin :
CHINA
MOQ :
1pcs
Price :
USD
Payment Terms :
T/T100%ADVANCE
Supply Ability :
1500t/month
Delivery Time :
60days depends on quantity
Packaging Details :
pallet
Description

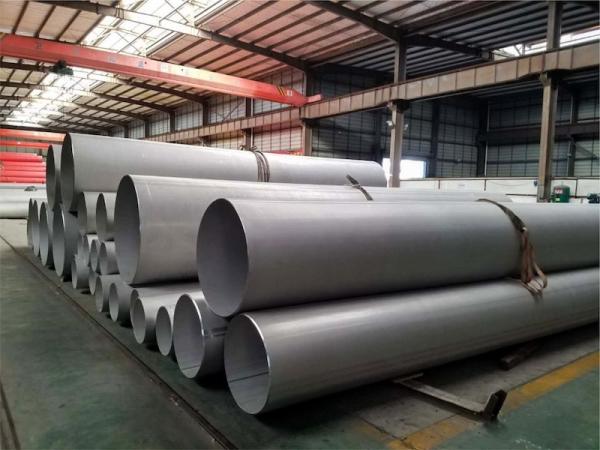

Product Name: Stainless Steel Seamless Pipe
Material Grade: EN 1.4301 (AISI 304 / SUS 304)
Standard: EN 10216-5 (Seamless Steel Tubes for Pressure Purposes – Stainless Steel)

Our stainless steel seamless pipes made from EN 1.4301 (AISI 304) are manufactured according to EN 10216-5,

ensuring excellent dimensional accuracy, high corrosion resistance, and superior mechanical performance.

These pipes are suitable for pressure applications in a wide range of industries including chemical processing,

food and beverage, medical, and architectural projects.

  • Material: Austenitic stainless steel (1.4301 / AISI 304)

  • Form: Seamless pipe

  • Standard compliance: EN 10216-5

  • Surface finish: Annealed and pickled / Polished (optional)

  • Corrosion resistance: Excellent resistance to atmospheric corrosion and many chemicals

  • Weldability: Good, suitable for most welding methods

  • Operating temperature: -196°C to +550°C (depending on pressure and medium

vailable Dimensions

Outside Diameter (OD): 6mm – 323.9mm

Wall Thickness (WT): 0.5mm – 25mm

Dimensional tolerances as per EN ISO 1127

  • Length: 6 meters (standard), custom lengths available

Chemical Composition (Typical Values)

Element Content (%)
C ≤ 0.07
Si ≤ 1.00
Mn ≤ 2.00
P ≤ 0.045
S ≤ 0.015
Cr 17.5–19.5
Ni 8.0–10.5

Applications

Heat exchangers and boilers

Food and beverage processing equipment

Pharmaceutical and biotech plants

Architectural and structural components

Water treatment and pipeline systems

Please let me know if you’d like a version with your company logo or want to include additional specs like mechanical properties or tolerance charts.
