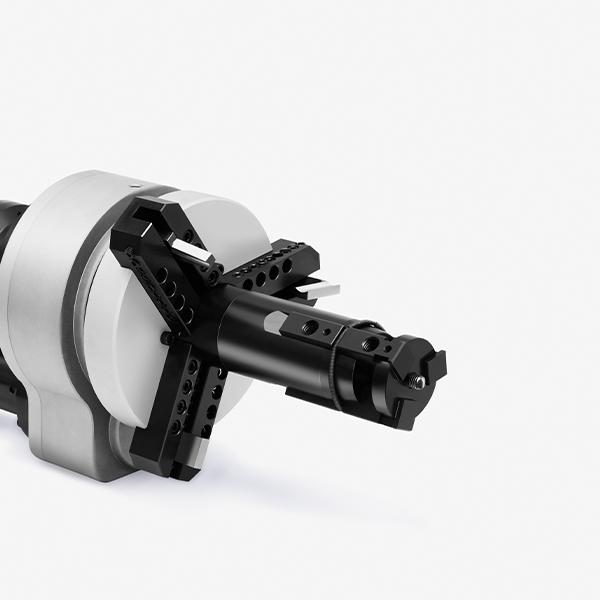

8.62 Inch ID Mounted Metal Beveling Machine Electric Pipe Beveler
8.62 Inch ID Mounted Metal Beveling Machine Electric Pipe Beveler
8.62 Inch ID Mounted Metal Beveling Machine Electric Pipe Beveler
8.62 Inch ID Mounted Metal Beveling Machine Electric Pipe Beveler
Specifications
Brand Name :
MT Portable Machine
Model Number :
ID219
Certification :
ISO9001 & CE
Place of Origin :
Wuxi, China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
5-7 days
Price :
365USD-1095USD
Power Supply :
220–240 V, 50/60 Hz / 1.3 m³/min @ 0.6 MPa
Rotation Speed :
22 rpm / 50 rpm
Motor Power :
1.6 kW (2.15 Hp) / 1.0 kW (1.34 Hp)
Drive Type :
MT Electric Motor / Pneumatic Motor
Description

Pipe Beveler ID219 Portable ID Mounted Cold Cutting Weld Prep Tool

PRODUCT DESCRIPTION

The ID219 Pipe Beveler is a robust, fast, and portable weld end preparation machine designed for pipes made of stainless steel, carbon steel, and high-chromium alloys. With a working range of 2.56" to 8.62" (Φ65 mm to 219 mm), this ID-mounted beveling tool is widely used in industries such as power generation, petrochemicals, and pipeline maintenance. Utilizing a cold cutting process, it eliminates heat-affected zones to ensure high-quality, precise weld joints.

The machine supports various machining operations including beveling, counterboring, and facing, and offers easy operation, reliable performance, and flexible power options for on-site applications.

KEY FEATURES

Cold Cutting Technology

Completely cold cutting process eliminates heat-affected zones caused by flame or thermal cutting, preserving material integrity and ensuring high-quality welds.

Suitable for Various Materials

Capable of machining carbon steel, stainless steel, alloy steel, and other hard-to-machine materials.

Powerful Multi-Function Machining

Interchangeable tooling enables a wide range of operations including V-prep, U-prep, J-prep, counterboring, facing, and chamfering.

Self-Centering Clamping System

Three-jaw ID-mounted expanding mandrel ensures fast installation, high concentricity, and stable operation.

Adjustable Bevel Angles

Multiple tool holder options available; bevel angles from 0° to 45° can be freely selected. Custom tooling is available upon request.

SPECIFICATIONS

Item IDE-219 IDP-219
Drive Type MT electric motor Pneumatic motor
Motor Power 220-240 V, 50/60 Hz 1.3 m³/min @ 0.6 Mpa
Motor Power 1.6 Kw (2.15 Hp) / 6 A 1.0 Kw (1.34 Hp)
Cutting Range (ID-OD) Φ65-219 mm (2.56"-8.62") Φ65-219 mm (2.56"-8.62")
ID Mounting Range Φ65-215 mm (2.56"-8.46") Φ65-215 mm (2.56"-8.46")
Wall Thickness ≤20 mm (0.79") ≤20 mm (0.79")
Feed Stroke 26 mm (1.02") 26 mm (1.02")
Rotation Speed 22 rpm 50 rpm
Working Weight 28.5 Kg 27 Kg
Shipping Weight 43 Kg 40 Kg
Crate Dimensions 830×310×340 mm 730×310×340 mm

DRIVE OPTIONS

The ID219 Pipe Beveler offers two power configurations to suit varying job site requirements:

IDE219 – MT Electric Motor Drive

This model features a 1.6 kW (2.15 Hp) MT electric motor, operating at 220–240 V, 50/60 Hz.

It delivers consistent torque and smooth operation, making it an excellent choice for environments with a stable and accessible power supply. Ideal for workshops, industrial plants, and power facilities where precision and continuous performance are required.

IDP219 – Pneumatic Motor Drive

Equipped with a 1.0 kW (1.34 Hp) pneumatic motor, this version requires 1.3 m³/min @ 0.6 MPa of compressed air.

The air-powered system is lightweight, spark-free, and well-suited for hazardous, flammable, or remote job sites where electrical motors may not be safe or practical. Its high-speed rotation ensures efficient beveling in demanding field applications.

STANDARD ACCESSORIES

No. Description Qt

1

Modle ID219 assembly with motor

1

2

Jaw block No.1 (Φ70-80 mm,L=5 mm)

6

3

Jaw block No.2 (Φ80-90 mm,L=10 mm)

6

4

Jaw block No.3 (Φ90-100 mm,L=15 mm)

6

5

Jaw block No.4 (Φ100-110 mm,L=20 mm)

6

6

Jaw block No.5 (Φ110-120 mm,L=25 mm)

6

7

Jaw block No.6 (Φ120-130 mm,L=30 mm)

6

8

Jaw block No.7 (Φ130-140 mm,L=35 mm)

6

9

Jaw block No.8 (Φ140-150 mm,L=40 mm)

6

10

Extension block (Φ155-215 mm)

3

11

42F-0822-0°.M42 Facing tool, 8×22 mm, 0°

1

12

42B-0822-30°,M42 Beveling tool, 8×22 mm, 30°

1

13

42B-0822-37.5°,M42 Beveling tool, 8×22 mm, 37.5°

1

14

Scoket head screw, M6×35 (used for Extension block)

6

15

Hex L-key 4 mm

1

16

Hex L-key 5 mm

1

17

Hex L-key 6 mm

1

18

Combination open end wrench, 22-24 mm

1

19

Eyebolt M10

1

20

Manual and certificates

1

MOUNTING RANGE

Jaw Blocks and Ramp Sets
Jaw block No. ID Mounting Range

None

Φ65-75mm (2.559"-2.953")

NO.01

Φ75-85mm (2.953"-3.346")

NO.02

Φ85-95mm (3.346"-3.740")

NO.03

Φ95-105mm (3.740"-4.134")

NO.04

Φ105-115 mm (4.134"-4.528")

NO.05

Φ115-125 mm (4.528"-4.921")

NO.06

Φ125-135 mm (4.921"-5.315")

NO.07

Φ135-145 mm (5.315"-5.709")

NO.08

Φ145-155 mm (5.709"-6.102")

Extension+NO.01

Φ155-165 mm (6.102"-6.496")

Extension+NO.02

Φ165-175 mm (6.496"-6.890")

Extension+NO.03

Φ175-185 mm (6.890"-7.283")

Extension+NO.04

Φ185-195 mm (7.283"-7.677")

Extension+NO.05

Φ195-205 mm (7.677"-8.071")

Extension+NO.06

Φ205-215 mm (8.071"-8.465")

TOOLBIT OPTIONS

8.62 Inch ID Mounted Metal Beveling Machine Electric Pipe Beveler

PIPE BEVELER SELECTION TABLE

Model ID Mounting Range Cutting Range (ID-OD)
ID30 Φ15-28 mm (0.59"-1.10") Φ15-36 mm (0.59"-1.42")
ID90 Φ25-79 mm (0.98"-3.11") Φ25-89 mm (0.98"-3.50")
ID120 Φ40-112 mm (1.57"-4.41") Φ40-120 mm (1.57"-4.72")
ID159 Φ60-160 mm (2.36"-6.30") Φ60-159 mm (2.36"-6.26")
ID219 Φ65-215 mm (2.56"-8.46") Φ65-219 mm (2.56"-8.62")
ID252 Φ80-260 mm (3.15"-10.24") Φ80-273 mm (3.15"-10.75")
ID352 Φ145-345 mm (5.71"-13.58") Φ145-356 mm (5.71"-14.02")
ID426 Φ250-426 mm (9.84"-16.77") Φ250-426 mm (9.84"-16.77")
ID630 Φ300-630 mm (11.81"-24.80") Φ300-630 mm (11.81"-24.80")
