Pneumatic Pipe Beveling Machine ID630 Heavy Duty Internal Mounted Cold Cutting Tool for Weld Prep

PRODUCT DESCRIPTION

The ID630 Pneumatic Pipe Beveling Machine is a robust, internally mounted cold cutting solution designed for high-precision weld end preparation on large-diameter pipes from 11.81" to 24.80" (300–630 mm). Built for demanding industrial applications, it performs beveling, facing, counterboring, and chamfering without generating heat-affected zones, ensuring structural integrity and weld quality.

Its explosion-proof pneumatic drive is engineered for hazardous and ATEX-rated environments, making it ideal for oil & gas, petrochemical, power generation, and shipbuilding sectors. The cold cutting process eliminates thermal distortion and sparks, enabling safe operation in flammable atmospheres. A three-jaw self-centering expanding mandrel ensures rapid, secure clamping inside the pipe bore, even in vertical or overhead positions.

KEY FEATURES

Cold Cutting Process

100% spark-free machining, preventing thermal distortion and metallurgical changes.

Material Versatility

Compatible with carbon steel, stainless steel, duplex, and alloy steels.

Multi-Function Capability

Supports V/U bevels, compound angles, facing, chamfering, and counterboring with quick-change tooling.

Rapid Internal Clamping

Self-centering mandrel for fast, precise setup in any pipe orientation.

Explosion-Proof Pneumatic Drive

Safe for ATEX operations and offshore environments.

SPECIFICATIONS

DRIVE OPTIONS

The ID630 Pipe Beveling Machine is available in two power configurations—electric and pneumatic—to match diverse industrial environments and operational requirements.

IDE630 – MT Electric Motor Drive

Powered by a 2.95 HP (2.2 kW) MT electric motor, the IDE630 delivers stable torque and precise rotational speed control, ensuring consistent, high-quality cuts. This configuration is ideal for workshops, fabrication yards, and controlled indoor facilities with reliable electrical supply. Its quiet operation, minimal maintenance needs, and precision performance make it suitable for extended-duration machining where repeatability is critical.

IDP630 – Pneumatic Motor Drive

The IDP630 features a 3.75 HP (2.76 kW) pneumatic motor, engineered for maximum safety in hazardous or ATEX-rated zones. Designed for remote field work, offshore installations, and explosion-prone environments, this drive option is maintenance-friendly and eliminates the risk of electrical sparks. It offers excellent portability, rapid startup, and strong cutting power—perfect for environments where electricity is unavailable or restricted.

INDUSTRIES AND APPLICATIONS

Power Generation

The ID630 Pneumatic Pipe Beveling Machine is a trusted solution for weld preparation in thermal, nuclear, and combined-cycle power plants. It delivers precise, repeatable bevels on large-diameter steam lines, high-pressure piping, and turbine feed systems—ensuring long-term weld integrity in safety-critical operations.

Oil & Gas Pipelines and Refineries

Engineered for demanding field work, the ID630 performs flawlessly in oil fields, offshore platforms, and transmission pipeline construction. Its cold cutting process produces clean, burr-free bevels on risers, manifolds, and trunk lines, making it ideal for ATEX-classified or hazardous work zones where spark-free machining is essential.

Petrochemical and Chemical Processing

In facilities handling aggressive media and corrosive chemicals, the ID630’s high-torque pneumatic drive and multi-material cutting capability excel with duplex, Inconel, and stainless steel piping. It is widely used during maintenance turnarounds, capacity upgrades, and critical shutdown repairs.

Shipbuilding and Offshore Engineering

The machine’s compact, internally-mounted design enables operation in restricted-access areas such as ship engine rooms, ballast systems, and offshore module pipe racks. Its pneumatic drive ensures safe, efficient beveling in confined, elevated, or explosion-prone spaces where downtime and space constraints are critical factors.

MOUNTING RANGE

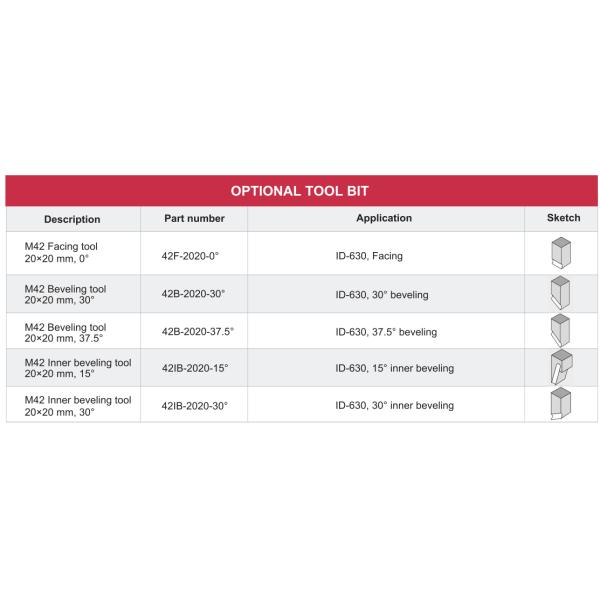

TOOLBIT OPTIONS

FREQUENTLY ASKED QUESTIONS

Q1: What is the machining range of the ID630 Pneumatic Pipe Beveling Machine?

A: The ID630 offers a large machining capacity from 11.81" to 24.80" (300–630 mm), making it ideal for heavy-duty weld preparation on a wide range of large-diameter industrial pipelines.

Q2: Which pipe materials can the ID630 process?

A: Built for multi-material performance, the ID630 can bevel, face, counterbore, and chamfer carbon steel, stainless steel, duplex alloys, chrome-moly, and Inconel—ensuring adaptability across diverse sectors such as oil & gas, power generation, and shipbuilding.

Q3: What are the advantages of the ID630’s cold cutting technology?

A: The cold cutting system eliminates heat-affected zones (HAZ), preventing thermal distortion and preserving base metal properties. This results in cleaner, safer bevels—ideal for ATEX-classified environments and precision welding tasks.

Q4: What drive options are available for the ID630?

A: The ID630 is available in two drive configurations:

IDE630 Electric Drive (2.95 HP / 2.2 kW) – Designed for stable, high-precision workshop use.

IDP630 Pneumatic Drive (3.75 HP / 2.76 kW) – Explosion-proof, lightweight, and ideal for hazardous or offshore environments where electric power is not feasible.

Q5: Can the ID630 operate in confined or elevated workspaces?

A: Yes. The machine’s compact, internally mounted design allows efficient use in tight-access locations such as ship engine rooms, offshore modules, or under-deck pipe runs—delivering reliable weld preparation without compromising safety or accuracy.

PIPE BEVELER SELECTION TABLE
