Specifications
Brand Name :
YUYANG
Model Number :
YY-70AB
Certification :
CE,CO
Place of Origin :
China
MOQ :
Single item
Price :
3592$
Payment Terms :
T/T
Supply Ability :
1 - 20pieces(15days)
Model :
YY-70AB (Three phase)
work power :
340V-430V
input current :
70A
Fluctuating output power :
70KVA
fluctuating frequency :
30-80KHZ
output current :
400-3200A
the flow rate of cooling water :
0.08-0.16Mpa 9L/Min
water temperature protection point :
40C
product size :
main :780x370x620 mm transformer : 510x260x410 mm
net weight :
main : 54 kg transformer : 32.5 kg
Description

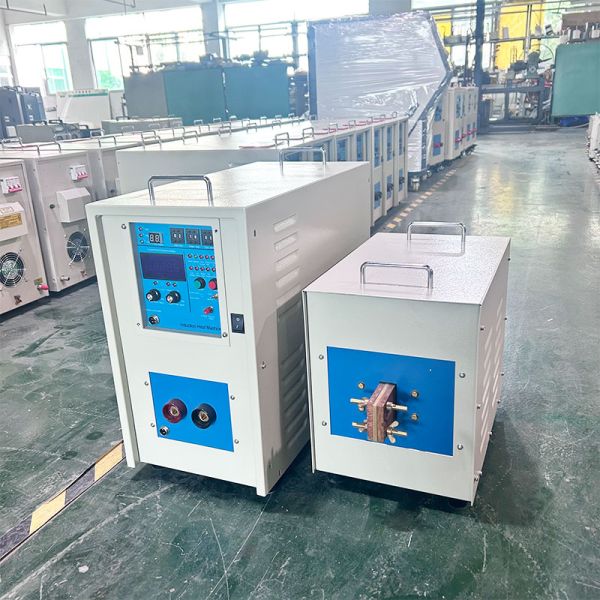

Ultrahigh Frequency Induction Heating Machine (MOSFET Control)
Portable High-Frequency Induction Heating Machine Series
Utrahigh Frequency Induction Heating Machine (MOSFET Control)
Our portable induction heating machines feature precision-engineered models including YY15AB (15KW), YY25AB (25KW), and YY70AB (70KW), designed for exceptional versatility and performance.
Key Features
  • IGBT inverter circuit with parallel connection for superior load adaptability
  • High power output with rapid heating speed and operational efficiency
  • Significantly improves economic benefits and workpiece quality while saving energy and materials
  • Compact design saves production space by up to 10 times compared to conventional equipment
  • Safe operation without high-voltage equipment requirements
  • Full load design supports 24-hour continuous operation
Industrial Applications
Hot Forging
Heats workpieces to specific temperatures for shaping via forging press, punch press, or forging machines. Applications include watch cases, handles, mold accessories, kitchenware, art ware, standard parts, fasteners, mechanical components, bronze locks, rivets, and pins.
Hot Fitting
Connects different metals or metals with nonmetals using thermal expansion principles. Used for computer radiator copper cores with aluminum sheets, speaker webs, steel-plastic tube composites, aluminum foil sealing, motor rotors, and tubular electric heating elements.
Smelting
Melts metals into liquid form using high temperatures. Suitable for iron, steel, copper, aluminum, zinc, and various precious metals.
Quality Standards
Manufactured under strict quality controls with certified reliability. Craftsmanship emphasizes internal precision and external durability for long-term performance.
Core Advantages
High Efficiency
30-80kHz frequency enables uniform heating in minutes
Portable Design
Compact build with customizable coaxial cable length for any workspace
Exceptional Durability
Imported components ensure zero power loss and extended service life
Maximum Versatility
Adapts to various metals and applications from automotive manufacturing to machinery repair
This induction heating series redefines on-site heating solutions, combining innovative technology with practical functionality for industrial professionals worldwide.
