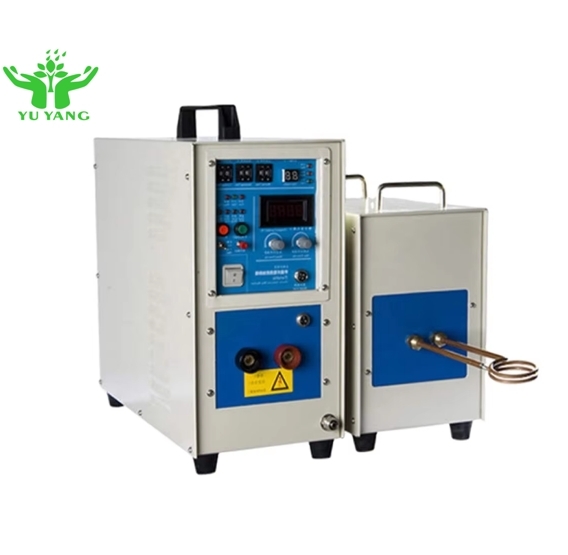

High Frequency Welding Machine Quenching Equipment Induction Heating Equipment Customized 70KW CN;GUA Yuyang
High Frequency Welding Machine Quenching Equipment Induction Heating Equipment Customized 70KW CN;GUA Yuyang
High Frequency Welding Machine Quenching Equipment Induction Heating Equipment Customized 70KW CN;GUA Yuyang
High Frequency Welding Machine Quenching Equipment Induction Heating Equipment Customized 70KW CN;GUA Yuyang
High Frequency Welding Machine Quenching Equipment Induction Heating Equipment Customized 70KW CN;GUA Yuyang
High Frequency Welding Machine Quenching Equipment Induction Heating Equipment Customized 70KW CN;GUA Yuyang
Specifications
Brand Name :
YUYANG
Model Number :
YYS-25AB
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
$2000
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
200 sets per month
Delivery Time :
5-10 work days
Packaging Details :
Plywood Box
Max Fluctuating Power :
25KW
work power :
340v-430v
Maximum input current :
42A
Output power :
25kw
Fluctuating frequency :
10-50khz
Output current :
200-1800A
The flow rate of cooling water :
0.08-0.16Mpa 9L/Min
Water temperature protection point :
50C
Product size :
640x280x550 mm
Net weight  :
37.5 kg
Description
High Frequency Welding Machine Quenching Equipment
Customized 70KW Induction Heating Equipment by CN;GUA Yuyang
Key Characteristics
  • Advanced IGBT inverting device with automatic frequency tracking
  • High frequency operation provides rapid heating with only 20-30% power consumption compared to electronic tube induction heating
  • Secure voltage operation ensures safe and reliable performance
  • Manual and automatic regulation with comprehensive protection against over voltage, over current, water shortage, phase failure, and overheating
  • No open flame, noise, or pollution - environmentally friendly and fire-safe operation
  • Recommended for brazing, welding, forging, hot cooperation, melting, quenching, and annealing applications
Technical Features
Utilizes advanced electric components and unique high-new techniques for rapid, localized metal heating. Capable of penetrating non-metal materials to heat metals until fusion without direct contact, providing safe, economical, and pollution-free technical solutions.
Equipment Advantages
  • Portable design: Integrated construction saves over 80% space and 75% weight compared to traditional transformers
  • Monolithic shell design with resistance to weak acids and alkalis
  • Complex metallic heating capability using amorphous magnetic core materials
  • Wide frequency range suitable for irregular shaped workpieces
  • Efficient heating with 8-second warm-up time
  • Ideal for air conditioning, refrigerator industry copper pipe welding, and complex transformer welding applications
  • Stable magnetic field output ensures consistent long-term heating performance
Technical Parameters
Model YYS-25AB (Three phase)
Work Power 340v-430v
Maximum Input Current 42A
Output Power 25kw
Fluctuating Frequency 10-50khz
Output Current 200-1800A
Cooling Water Flow Rate & Pressure 0.08-0.16Mpa 9L/Min
Water Temperature Protection Point 50°C
Product Dimensions Main: 640x280x550 mm
Transformer: 510x260x410 mm
Net Weight Main: 37.5 kg
Transformer: 32.5 kg
Application Areas
  • Brazing materials: copper and brass, tungsten steel and stainless steel, iron and copper, aluminum and copper, and other metal brazing
  • Glasses welding, fishing tool welding, hardware appliances welding
  • Carbide saw and saw-tooth welding, carbide blade welding
  • Jewelry and watches welding
  • Electronic industry: motor rotor hot-cooperation, electrode silver soldering and tin soldering
  • Metal implants, bulbs fight electrode
  • Band accessory soldering, golf head, pipe welding
  • Communication equipment soldering, copper coaxial cable connector soldering
High Frequency Welding Machine Quenching Equipment Induction Heating Equipment Customized 70KW CN;GUA Yuyang High Frequency Welding Machine Quenching Equipment Induction Heating Equipment Customized 70KW CN;GUA Yuyang
Frequently Asked Questions
Company Information
Based in Guangdong, China, established in 2018. Serving global markets including South Asia (20%), Eastern Asia (20%), Domestic Market (15%), Southeast Asia (15%), Eastern Europe (10%), North America (10%), Oceania (5%), and Western Europe (5%). Team of 11-50 professionals.
Quality Assurance
Pre-production samples provided before mass production. Final inspection conducted before shipment to ensure product quality.
Product Range
Fire Testing Equipment, Environmental Test Chambers, Textile Testing Equipment, Toys Testing Equipment, Wire and Cable Test Machines.
Competitive Advantage
High-tech enterprise specializing in developing and manufacturing comprehensive testing equipment including Fire Testing Equipment, Building Material Fire Testers, Wire and Cable Fire Testers, Environmental Test Chambers, Textile Testing Equipment, and Toys Testing Equipment.
Service Details
Delivery Terms: FOB, CFR, CIF, EXW
Payment Currency: USD, EUR, JPY, AUD, HKD, GBP, CNY
Payment Methods: T/T, L/C, D/P D/A, Credit Card, Western Union, Cash
Languages: English, Chinese
