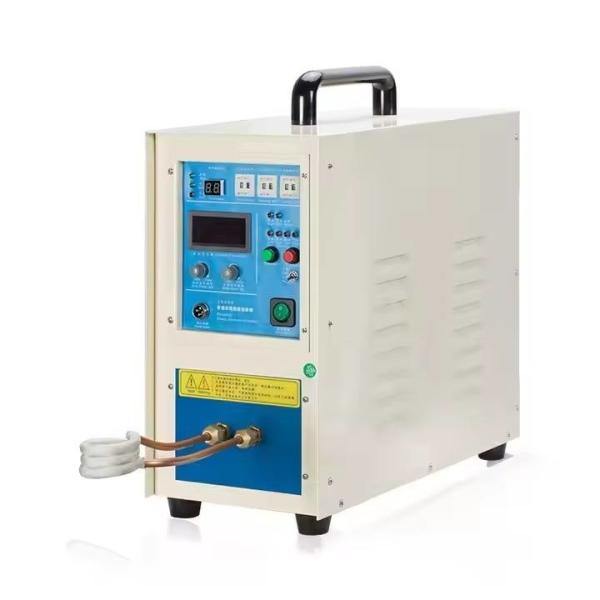

High Frequency Induction Heating Machine 15KW with 200-600A Metal Forging Machine Cooling for Electrical Test Set
High Frequency Induction Heating Machine 15KW with 200-600A Metal Forging Machine Cooling for Electrical Test Set
Specifications
Brand Name :
YUYANG
Model Number :
YY-15AB
Certification :
CE/CO
Place of Origin :
China
MOQ :
1 Set
Price :
500~900
Payment Terms :
,T/T
Supply Ability :
200 sets per month
Delivery Time :
6-10 work days
Packaging Details :
Plywood Box
Model :
YY-15AB(Three phase)
Work power :
180-250v
Input current :
35A
Fluctuating output power :
30-100khz
Output current :
200-600A
The flow rate of cooling water :
0.06-0.12Mpa 7.5L/Min
Water temperature protection point :
40C
Product size :
main : 530x225x450mm；transformer : 370x210x370mm
Net weight :
main: 18 kg ; transformer: 15 kg
Description
High Frequency Induction Heating Machine 15KW
This 15KW high-frequency induction heating machine with 200-600A output and 0.06-0.12Mpa cooling system integrates precise heating and electrical performance testing functions. Specifically designed for metal workpieces, it serves manufacturing, research and development, and quality inspection applications.
Technical Specifications
Parameter Value
Max Fluctuating Power 15KW
Fluctuating Frequency 30-100KHZ
Heating Current 200-600A
Input Voltage Single Phase, 380V
Flow Rate of Cooling Water 0.06-0.12Mpa, 7.5L/Min
Water Temperature Protecting Point 40°C
Key Features
  • IGBT inverter circuit in parallel connection for high load adaptability
  • High power output with fast heating speed and high efficiency
  • Compact design saves production space by 10 times
  • Safe operation without high-voltage equipment requirements
  • Comprehensive full load design for 24-hour continuous operation
  • Product line includes medium-frequency (15KVA-3000KVA) and high-frequency/ultra-high-frequency (3.2KVA-320KVA) equipment
  • Over 60 models available for various metal heating processes
Working Principle
Utilizing fully solid-state IGBT inverter module technology imported from Germany, the equipment generates a strong alternating magnetic field through the induction coil. This creates eddy currents on the workpiece surface, enabling rapid heating and instant temperature rise.
Applications
Heat Treatment
Surface quenching, annealing, tempering, and modulation of metal components
Welding & Joining
Braze welding, silver soldering, and brazing of dissimilar metals
Manufacturing Processes
Hot forging, hot fitting, smelting, and thermal assembly of micro-components
Testing & Quality Control
High-temperature testing of electrical terminals, motor windings, and thermal conductivity analysis
Economic Benefits
Compared to other heating methods, this induction heating system significantly improves economic benefits by enhancing workpiece quality, saving energy and materials, reducing labor intensity, and creating a better production environment.
