Specifications
Brand Name :
YUYANG
Model Number :
YY-25AB
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
$2000
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
200 sets per month
Delivery Time :
5-10 work days
Packaging Details :
Plywood Box
Max Fluctuating Power :
25KW
work power :
340V-430V
input current :
25A
Fluctuating output power :
25KW
fluctuating frequency :
30-80KHZ
output current :
200-1200A
the flow rate of cooling water :
0.06-0.12Mpa 7.5L/Min
water temperature protection point :
40C
product size :
550x225x480mm
net weight :
21.5 kg
Description

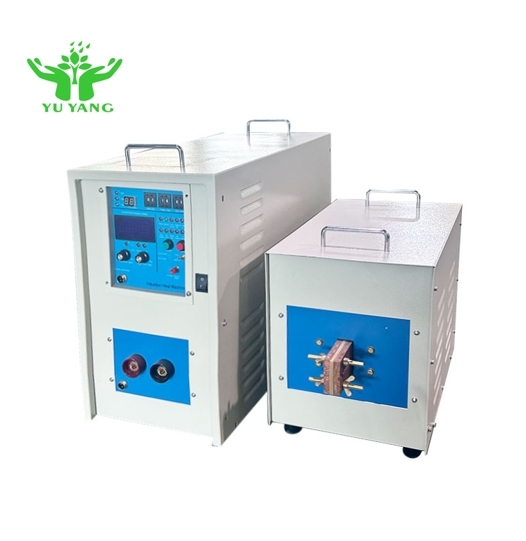

High Frequency Induction Heating Machine
Advanced industrial heating equipment for gear quenching, melting, welding, and heat treatment applications with high efficiency and environmental compliance.
Key Characteristics
  • IGBT inverting device with automatic frequency tracking
  • High-frequency operation with 70-80% energy savings compared to electronic tube induction heating
  • Secure voltage operation with comprehensive safety features
  • Manual and automatic regulation with over-voltage, over-current, water deficiency, phase failure, and overheating protection
  • No open flame, noise, or pollution - environmentally compliant and fire-safe
  • Recommended for brazing, welding, forging, hot cooperation, melting, quenching, and annealing
Technical Features
Utilizes advanced electrical components and innovative techniques for rapid, localized metal heating. Capable of penetrating non-metal materials to heat metals to fusion point without direct contact, providing safe, economical, and pollution-free technical solutions.
Operational Advantages
  • Portable design: 80% space savings and 75% weight reduction compared to traditional transformers
  • Monolithic shell design with resistance to weak acids and alkalis
  • Amorphous magnetic core material for wider frequency range and superior heating of complex, irregular workpieces
  • Efficient heating with 8-second warm-up, ideal for air conditioning and refrigerator industry copper pipe welding
  • Stable magnetic field output ensures consistent long-term heating performance
Technical Specifications
ModelYY-25AB (Three phase)
Work Power340V-430V
Input Current25A
Output Power25KW
Frequency Range30-80KHZ
Output Current200-1200A
Cooling Water Flow0.06-0.12Mpa 7.5L/Min
Water Temperature Protection40°C
Main Unit Dimensions550×225×480mm
Transformer Dimensions350×215×380mm
Main Unit Weight21.5 kg
Transformer Weight17 kg
Industrial Applications
  • Brazing: copper-brass, tungsten steel-stainless steel, iron-copper, aluminum-copper, and other metal combinations
  • Glasses welding, fishing tool welding, hardware appliances welding
  • Carbide saw and saw-tooth welding, carbide blade welding
  • Jewelry and watch manufacturing welding
  • Electronic industry: motor rotor hot-cooperation, electrode silver and tin soldering
  • Metal implants, bulb electrode manufacturing
  • Band accessory soldering, golf head production, pipe welding
  • Communication equipment soldering, copper coaxial cable connector soldering
