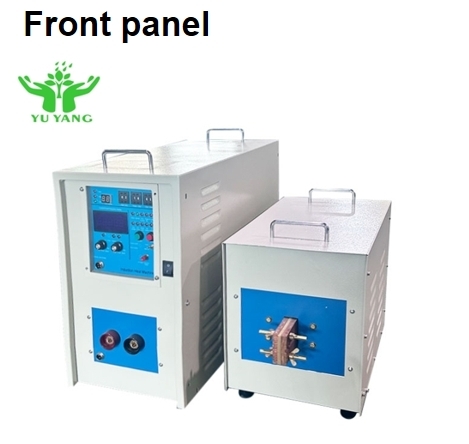

Hot Sales High Frequency 1kg Gold Induction Melting Machine(yy-15kw)
Hot Sales High Frequency 1kg Gold Induction Melting Machine(yy-15kw)
Hot Sales High Frequency 1kg Gold Induction Melting Machine(yy-15kw)
Hot Sales High Frequency 1kg Gold Induction Melting Machine(yy-15kw)
Hot Sales High Frequency 1kg Gold Induction Melting Machine(yy-15kw)
Hot Sales High Frequency 1kg Gold Induction Melting Machine(yy-15kw)
Specifications
Brand Name :
YUYANG
Model Number :
YY-60AB
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
$2000
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
200 sets per month
Delivery Time :
5-10 work days
Packaging Details :
Plywood Box
Max Fluctuating Power :
60KW
work power :
380V
Max input current :
60A
Fluctuating output power :
60KW
fluctuating frequency :
30-80KHZ
output current :
400-2400A
the flow rate of cooling water :
0.08-0.16Mpa 7.6L/Min
water temperature protection point :
40C
product size :
640x280x550 mm
net weight :
37.5 kg
Description
High Frequency 1kg Gold Induction Melting Machine (YY-15KW)
Professional induction heating equipment designed for efficient metal melting and processing applications.
Key Characteristics
  • Advanced IGBT inverting device with automatic frequency tracking
  • High-frequency operation for rapid heating with 20-30% lower power consumption than traditional electronic tube machines
  • Secure voltage operation with comprehensive safety features
  • Manual and automatic regulation with protection against over voltage, over current, water shortage, phase failure, and overheating
  • Environmentally friendly operation with no open flame, noise, or pollution
  • Recommended for brazing, welding, forging, hot cooperation, melting, quenching, and annealing applications
Advanced Features
Utilizes state-of-the-art electrical components and innovative techniques for rapid, localized metal heating. Capable of penetrating non-metal materials to heat metals until fusion without direct contact, providing safe, economical, and pollution-free technical solutions.
Equipment Advantages
  • Portable design: 80% space savings and 75% weight reduction compared to traditional transformers
  • Monolithic shell design with resistance to weak acids and alkalis
  • Advanced amorphous magnetic core material for complex metallic heating applications
  • Wide frequency range suitable for irregular shaped workpieces
  • Efficient heating with 8-second warm-up time
  • Stable magnetic field output for consistent long-term performance
  • Ideal for air conditioning, refrigeration, and complex welding applications
Technical Specifications
Model YY-60AB (Three Phase)
Work Power Three Phase 380V
Max Input Current 60A
Output Power 60KW
Frequency Range 30-80KHZ
Output Current 400-2400A
Cooling Water Flow Rate 0.08-0.16Mpa 7.6L/Min
Water Temperature Protection 40°C
Main Unit Dimensions 640×280×550 mm
Transformer Dimensions 510×260×410 mm
Main Unit Net Weight 37.5 kg
Transformer Net Weight 32.5 kg
Application Areas
  • Brazing: Copper, brass, tungsten steel, stainless steel, iron, aluminum, and other metal combinations
  • Glasses welding, fishing tool welding, hardware appliances welding
  • Carbide saw and saw-tooth welding, carbide blade welding
  • Jewelry and watch manufacturing welding
  • Electronic industry: Motor rotor hot-cooperation, electrode silver and tin soldering
  • Metal implants, bulb electrode manufacturing
  • Band accessory soldering, golf head manufacturing, pipe welding
  • Communication equipment soldering, copper coaxial cable connector soldering
Hot Sales High Frequency 1kg Gold Induction Melting Machine(yy-15kw) Hot Sales High Frequency 1kg Gold Induction Melting Machine(yy-15kw)
