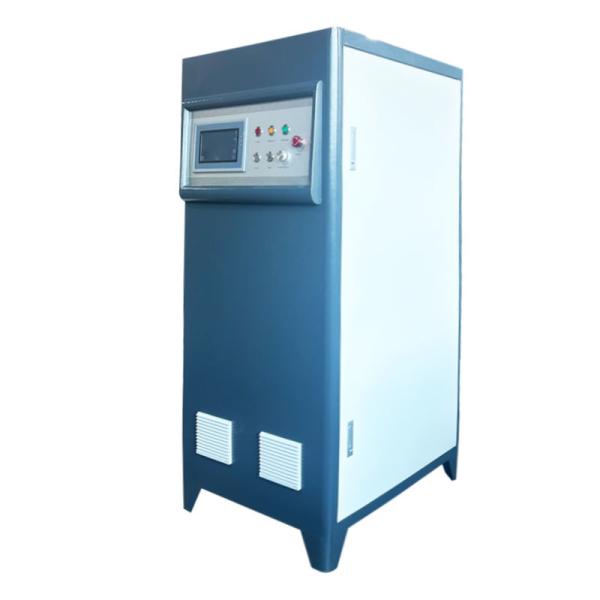

Induction Heating Machine Steel Billet Rod Heater
Induction Heating Machine Steel Billet Rod Heater
Induction Heating Machine Steel Billet Rod Heater
Induction Heating Machine Steel Billet Rod Heater
Induction Heating Machine Steel Billet Rod Heater
Induction Heating Machine Steel Billet Rod Heater
Specifications
Brand Name :
YUYANG
Model Number :
YYSQ-TC-60AB (Three phase)
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
$2000
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
200 sets per month
Delivery Time :
5-10 work days
Packaging Details :
Plywood Box
work power :
340V-430V
Maximum input current :
90A
Output power :
60KW
Fluctuating frequency :
5-20khz
The flow rate of cooling water :
0.08-0.16Mpa 12L/Min
Water temperature protection point :
50C
Product size :
main : 808*530*1260MM Multiple Connect transformer : 620*520*630MM
Net weight  :
main : 102kg Multiple Connect transformer : 91kg
Output current :
400-4500A
Description
Induction Heating Machine Steel Billet Rod Heater
This high-frequency induction heating machine is designed for efficient metal heating applications, featuring advanced IGBT inverting technology and automatic frequency tracking for optimal performance.
Key Characteristics
  • Advanced IGBT inverting device with automatic frequency tracking
  • High-frequency operation for rapid heating with 20-30% lower power consumption compared to electronic tube induction heaters
  • Secure voltage operation with comprehensive safety features
  • Manual and automatic regulation with protection against over voltage, over current, water shortage, phase failure, and overheating
  • Environmentally friendly operation with no open flame, noise, or pollution
  • Ideal for brazing, welding, forging, hot cooperation, melting, quenching, and annealing applications
Advanced Features
Utilizing premium electrical components and innovative techniques, this induction heating machine provides rapid, localized metal heating. It can penetrate non-metal materials to heat metals to fusion temperatures without direct contact, offering safe, economical, and pollution-free technical solutions.
Product Advantages
  • Portable design: Integrated construction saves over 80% space and 75% weight compared to traditional transformers
  • Versatile metal heating: Hand-held machine head with amorphous magnetic core material accommodates complex, irregular-shaped workpieces
  • Efficient operation: Rapid heating within 8 seconds with stable magnetic field output for consistent performance
  • Intelligent operation with air conditioning compatibility for reliable welding in HVAC and refrigeration applications
Technical Specifications
Parameter Specification
Model YYSQ-TC-60AB (Three phase)
Work Power 340V-430V
Maximum Input Current 90A
Output Power 60KW
Fluctuating Frequency 5-20KHZ
Output Current 400-4500A
Cooling Water Flow Rate 0.08-0.16Mpa 12L/Min
Water Temperature Protection 50°C
Main Unit Dimensions 808×530×1260mm
Transformer Dimensions 620×520×630mm
Main Unit Net Weight 102kg
Transformer Net Weight 91kg
Application Areas
  • Brazing materials: Copper and brass, tungsten steel and stainless steel, iron and copper, aluminum and copper brazing
  • Glasses welding, fishing tool welding, hardware appliances welding
  • Carbide saw and saw-tooth welding, carbide blade welding
  • Jewelry and watches welding
  • Electronic industry: Motor rotor hot-cooperation, electrode silver and tin soldering
  • Metal implants, bulbs fight electrode applications
  • Band accessory soldering, golf head manufacturing, pipe welding
  • Communication equipment soldering, copper coaxial cable connector soldering
