Steam Resistance Fluoroelastomer AFLAS FEPM O Ring
Steam Resistance Fluoroelastomer AFLAS FEPM O Ring
Steam Resistance Fluoroelastomer AFLAS FEPM O Ring
Steam Resistance Fluoroelastomer AFLAS FEPM O Ring
Specifications
Brand Name :
ESON
Model Number :
ES3032
Certification :
SGS
Place of Origin :
China
MOQ :
100pcs
Price :
negotiable
Payment Terms :
T/T，Ali pay
Supply Ability :
20 tons per month
Delivery Time :
5-15 working days
Packaging Details :
Packed in plastic bag and carton
Product name :
rubber O ring
Material :
AFLAS
Color :
Black, red, brown,etc
Hardness :
can be customized based on requirements
Processing method :
Compression set.
Size :
Accept customize
Feature :
Steam Resistance
Application :
Mechanical seal, auto seal，etc
Description

Steam Resistance Fluoroelastomer Custom Rubber Molding AFLAS FEPM Rubber O Ring

Description:

Aflas is a peroxy vulcanized fluoroelastomer FEPM made by

alternating copolymerization of tetrafluoroethylene and propylene.

The long-term use temperature reaches 230 degrees Celsius.

It also has excellent oil resistance, acid resistance, high temperature steam resistance,

and acid gas resistance. It is mostly used for durable sealing materials, gaskets and O-rings.

Especially the alkali resistance and amine resistance are outstanding,

and it has the best insulation performance in fluoro rubber.

Usage:

Aflas are widely used in food processing, nuclear power, electricity, oil extraction, chemical plant,

automobile, machinery and many other industries.

Application:

1. Tetrapropylene fluorine rubber has excellent heat resistance and chemical resistance,

and is used in equipment seals such as O-rings in chemical plants, petroleum extraction, food processing and other industries.
2. Not only for engine oil, but also for cooling water with excellent durability.
3. Aflas' copolymer has excellent electrical insulation and is suitable for wire sheathing.
4. Aflas has excellent durability to additives such as dispersant and antioxidant added in engine oil.
5. Aflas has various grades with excellent extrusion processability and can be used for film processing.

It is used in products such as large area film and cutting processing.
6. Aflas can be processed into sponge products. AFLAS,

which takes into account durability and flexibility, makes fluoroelastomers more versatile.

End product:O-ring, gasket, packer, rubber hose, etc

Hardness:60-90 shore A

Processing method: Moulding, extrusion, injection, etc

Color: Black, red, brown,etc

Comparison of water resistance, steam resistance and chemical resistance data

between fluoroelastomers and ordinary fluoroelastomers

Water and steam and chemical resistance compare sheet of Alfas and FKM copolymer
Chemical and temperature Time Typical property Aflas FKM copolymer
Hot water 180 ℃ 168h Breaking strength Retention rate, % 88 53
Elongation retention rate, % 104 124
Hardness change, Shore A -4 -16
Volume change, % 14 24
720h Breaking strength Retention rate, % 85 17
Elongation retention rate, % 100 58
Hardness change, Shore A -5 -28
Volume change, % 16 103
Steam 180 ℃ 168h Breaking strength Retention rate, % 90 66
Elongation retention rate, % 107 146
Hardness change, Shore A -3 -11
Volume change, % 8 15
720h Breaking strength Retention rate, % 92 51
Elongation retention rate, % 88 147
Hardness change, Shore A -3 -15
Volume change, % 10 20
50% Sodium hydroxide 70 ℃ 168h Breaking strength Retention rate, % 102 36
Elongation retention rate, % 100 84
Hardness change, Shore A +1 -12
Volume change, % 0 -34
720h Breaking strength Retention rate, % 100 Broken
Elongation retention rate, % 100
Hardness change, Shore A 0
Volume change, % -1
28% Ammonium hydroxide 168h Breaking strength Retention rate, % 96 Broken
Elongation retention rate, % 98
Hardness change, Shore A -1
Volume change, % 1
720h Breaking strength Retention rate, % 99 Broken
Elongation retention rate, % 94
Hardness change, Shore A -1
Volume change, % 1

Material data sheet:

Chengdu Eson New Material Co.,Ltd.
Aflas Molding Compound COA
Product description
Material: Aflas FA-80B
Press cure condition 170℃@20min
Post cure condition 230℃@4h
Requirements Result Method
Typical Properties
Hadness, Shore A 80+-5 80 D2240
Tenslile Strength. Mpa >14 18.2 D412
Elongation at break, % >200 221 D412
Volume change in chemicals
ASTM 3# oil / +2 D417
Stauffer belnd 7700 / +5 D417
/ -6 D417
Volum change, % / -6 D417
101# Oil resistance 70h@200℃
Handness change, %, -20 -15 D573
Tensile strength change,% -50 -32 D573
Elongation change, % -30 -11 D573
Volum change, % +50 +30 D573
Compression Set
70h@200 ℃, 25% < 35 32 D395 B

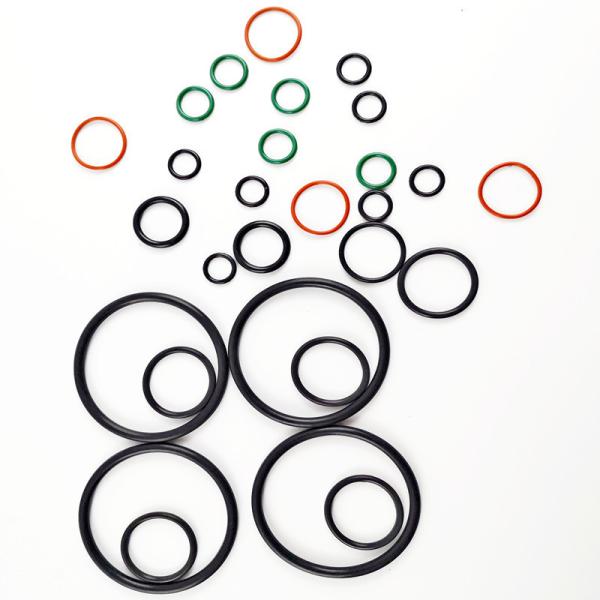

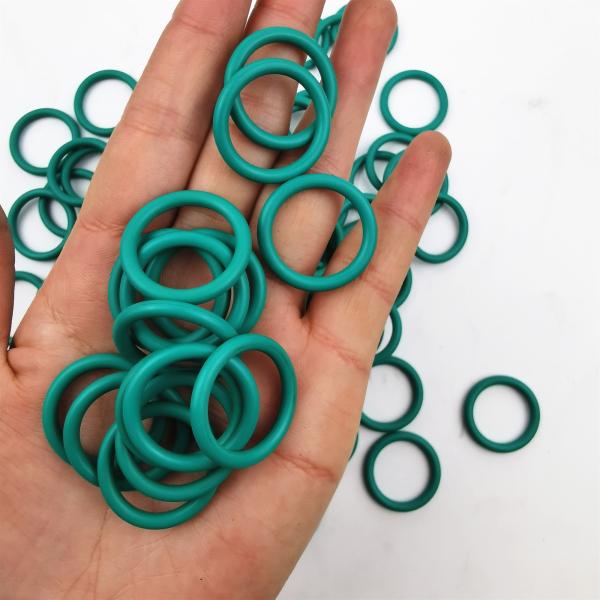

Picture shows:

Steam Resistance Fluoroelastomer AFLAS FEPM O RingSteam Resistance Fluoroelastomer AFLAS FEPM O Ring
