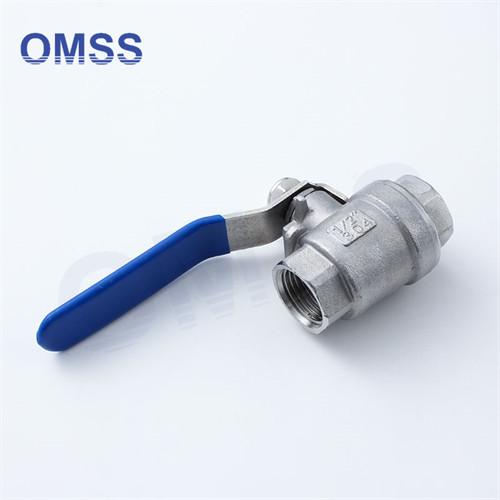

1/2-12 Ball Sanitary Valve Clamped Stainless Steel Ball Npt Valve For Beverage
1/2-12 Ball Sanitary Valve Clamped Stainless Steel Ball Npt Valve For Beverage
Specifications
Brand Name :
ONEMO
Model Number :
1"
Certification :
3A、ISO
Place of Origin :
WenZhou,ZheJiang,China
MOQ :
5 Pieces
Price :
/
Payment Terms :
T/T、L/C
Supply Ability :
5000 Piece/Pieces per Month
Packaging Details :
Export Package - Carton Box / Plywood Case / Wooden Case
Type: :
Ball Valves
Customized support: :
OEM,ODM
Port Size :
1/2"-12"
Valve body material: :
SS304/SS316L
End Connection: :
weld,clamp,thread,weld thread,flange
Gasket: :
EPDM,Silicone or PTFE
Working Temperature Range :
-20℃—+135℃
Max Working Pressure: :
1000Kpa/10Bar
Application scope: :
Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc
Operating Principles: :
Sensor, Pneuamtic actuator(single acting, double acting), electric actuato, C-TOP, C-top controller(AS-I)
Description

1/2"-12" Ball Sanitary Valve Clamped Stainless Steel Ball NPT Valve for Beverage

This describes a type of valve used in sanitary applications, specifically in the beverage industry. Here are the details:

  • 1/2"-12": Indicates the size range of the valve, from 1/2 inch to 12 inches.
  • Ball Sanitary Valve: Refers to a ball valve designed for sanitary applications, ensuring easy cleaning and preventing contamination.
  • Clamped: Indicates that the valve uses a clamped connection, making it easy to install and remove, ideal for sanitary environments.
  • Stainless Steel: Specifies that the valve is made of stainless steel, providing excellent corrosion resistance and durability.
  • Ball NPT Valve: Indicates that the valve has a ball mechanism for opening and closing, and uses National Pipe Thread (NPT) standards for its threaded connections.
  • For Beverage: Specifies that this valve is suitable for use in the beverage industry, where hygiene and cleanliness are critical.

Stainless Steel Sanitary Ball Valve Clamped Ball Valve stainless steel ball valve

Product Name:

2inch Stainless Steel Sanitary Ball Valve Clamped Ball Valve stainless steel ball valvestainless steel 316

Application :

Widely used in food,wine,beverages,dairy products,fine chemicals,pharmaceuticals and health

Materials engineering and many other industries

Operating principles

Driven by the actuator stem 90° rotation,drive the precise manufacturing ball body which with through cavity,turn on or off,so that can control the medium flow

Technical Standards

Request non-retention

Designed and manufactured according to GB/T12237-2007 standard requirements

Length of the structure according to GB/T12221-2005 standard requirements

Connection clamp,welding by DIN,ISO

Temperature and pressure level according to GB.T 12224-2005 standard requirements

Inspection and test according to GB/T 26480 standard requirements

Application scope:

Widely used in food,wine,beverages,dairy products,fine chemicals,pharmaceuticals and health

Materials engineering and many other industries

Technical Data

Maximum product pressure:1600kpa(16bar)

Minimum product pressure:full vacuum

Recommended maximum pressure during braking:600kpa(6bar)

Operating modes:manual,pneumatic,electric

Maximum sterilization temperature,short time:+200℃

Valve Dimensions

Widely used in food,wine,beverages,dairy products,fine chemicals,pharmaceuticals and health

Materials engineering and many other industries
