Tri Clamp Ball Valve 3A 1 Sanitary 3PC Non Retention Manual Motorized With High Platform
Tri Clamp Ball Valve 3A 1 Sanitary 3PC Non Retention Manual Motorized With High Platform
Tri Clamp Ball Valve 3A 1 Sanitary 3PC Non Retention Manual Motorized With High Platform
Tri Clamp Ball Valve 3A 1 Sanitary 3PC Non Retention Manual Motorized With High Platform
Tri Clamp Ball Valve 3A 1 Sanitary 3PC Non Retention Manual Motorized With High Platform
Tri Clamp Ball Valve 3A 1 Sanitary 3PC Non Retention Manual Motorized With High Platform
Tri Clamp Ball Valve 3A 1 Sanitary 3PC Non Retention Manual Motorized With High Platform
Tri Clamp Ball Valve 3A 1 Sanitary 3PC Non Retention Manual Motorized With High Platform
Tri Clamp Ball Valve 3A 1 Sanitary 3PC Non Retention Manual Motorized With High Platform
Tri Clamp Ball Valve 3A 1 Sanitary 3PC Non Retention Manual Motorized With High Platform
Tri Clamp Ball Valve 3A 1 Sanitary 3PC Non Retention Manual Motorized With High Platform
Tri Clamp Ball Valve 3A 1 Sanitary 3PC Non Retention Manual Motorized With High Platform
Tri Clamp Ball Valve 3A 1 Sanitary 3PC Non Retention Manual Motorized With High Platform
Tri Clamp Ball Valve 3A 1 Sanitary 3PC Non Retention Manual Motorized With High Platform
Tri Clamp Ball Valve 3A 1 Sanitary 3PC Non Retention Manual Motorized With High Platform
Tri Clamp Ball Valve 3A 1 Sanitary 3PC Non Retention Manual Motorized With High Platform
Tri Clamp Ball Valve 3A 1 Sanitary 3PC Non Retention Manual Motorized With High Platform
Tri Clamp Ball Valve 3A 1 Sanitary 3PC Non Retention Manual Motorized With High Platform
Specifications
Brand Name :
ONEMO
Model Number :
1"
Certification :
3A、ISO
Place of Origin :
WenZhou,ZheJiang,China
MOQ :
5 Pieces
Price :
/
Payment Terms :
T/T、L/C
Supply Ability :
5000 Piece/Pieces per Month
Packaging Details :
Export Package - Carton Box / Plywood Case / Wooden Case
Type: :
Ball Valves
Customized support: :
OEM,ODM
Port Size :
1/2"-12"
Valve body material: :
SS304/SS316L
End Connection: :
weld,clamp,thread,weld thread,flange
Gasket: :
EPDM,Silicone or PTFE
Working Temperature Range :
-20℃—+135℃
Max Working Pressure: :
1000Kpa/10Bar
Application scope: :
Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc
Operating Principles: :
Sensor, Pneuamtic actuator(single acting, double acting), electric actuato, C-TOP, C-top controller(AS-I)
Description

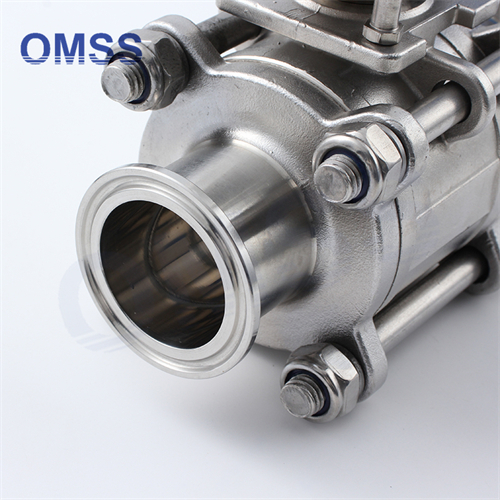

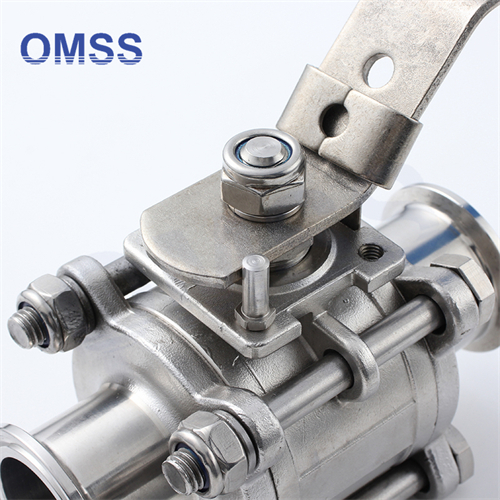

3A 1"Stainless Steel Sanitary 3PC Non Retention Clamp Manual motorized Ball Valve With High Platform

Product Name:

3A 1" Stainless Steel Sanitary 3PC Non Retention Clamp Manual motorized Ball Valve With High Platform

Application :

Widely used in food,wine,beverages,dairy products,fine chemicals,pharmaceuticals and health

Materials engineering and many other industries

Operating principles

Driven by the actuator stem 90° rotation,drive the precise manufacturing ball body which with through cavity,turn on or off,so that can control the medium flow

Technical Standards

Request non-retention

Designed and manufactured according to GB/T12237-2007 standard requirements

Length of the structure according to GB/T12221-2005 standard requirements

Connection clamp,welding by DIN,ISO

Temperature and pressure level according to GB.T 12224-2005 standard requirements

Inspection and test according to GB/T 26480 standard requirements

Application scope:

Widely used in food,wine,beverages,dairy products,fine chemicals,pharmaceuticals and health

Materials engineering and many other industries

Technical Data

Maximum product pressure:1600kpa(16bar)

Minimum product pressure:full vacuum

Recommended maximum pressure during braking:600kpa(6bar)

Operating modes:manual,pneumatic,electric

Maximum sterilization temperature,short time:+200℃

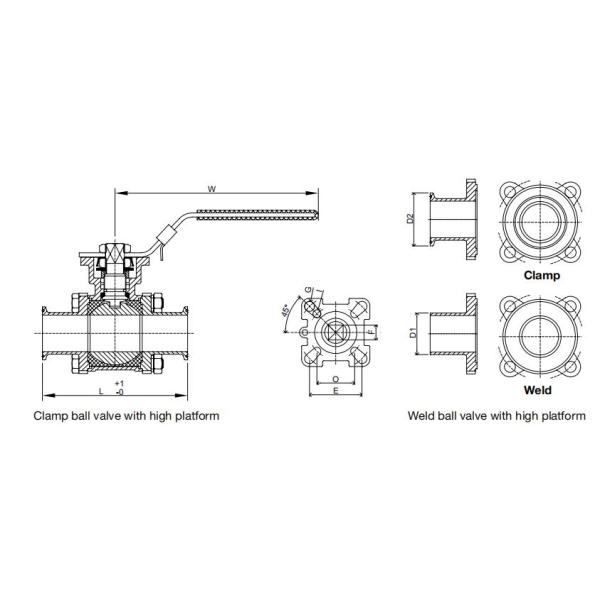

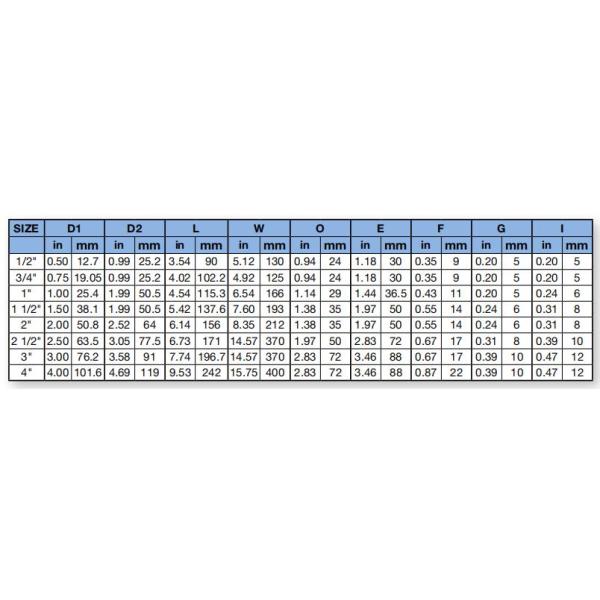

Valve Dimensions
Tri Clamp Ball Valve 3A 1Tri Clamp Ball Valve 3A 1

Tri Clamp Ball Valve 3A 1

Tri Clamp Ball Valve 3A 1

Widely used in food,wine,beverages,dairy products,fine chemicals,pharmaceuticals and health

Materials engineering and many other industries
