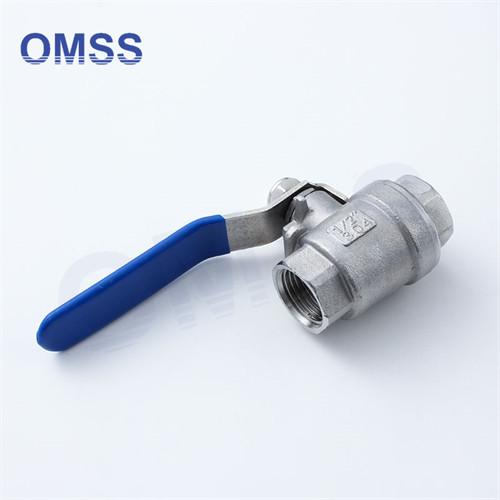

1/4 Inch Sanitary Ball Valve Male Female Stainless Steel Ball Mini Valve
1/4 Inch Sanitary Ball Valve Male Female Stainless Steel Ball Mini Valve
Specifications
Brand Name :
ONEMO
Model Number :
1/4"
Certification :
3A、ISO
Place of Origin :
WenZhou,ZheJiang,China
MOQ :
5 Pieces
Price :
/
Payment Terms :
T/T、L/C
Supply Ability :
5000 Piece/Pieces per Month
Packaging Details :
Export Package - Carton Box / Plywood Case / Wooden Case
Type: :
Ball Valves
Customized support: :
OEM,ODM
Port Size :
1/8"-1"
Valve body material: :
SS304/SS316L
End Connection: :
Threaded
Gasket: :
EPDM,Silicone or PTFE
Working Temperature Range :
120 degree C
Max Working Pressure: :
1000Kpa/10Bar
Application scope: :
Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc
Operating Principles: :
Sensor, Pneuamtic actuator(single acting, double acting), electric actuato, C-TOP, C-top controller(AS-I)
Description

  • Sanitary 1/4 Inch Mini Male Female Ball Valve stainless steel ball valve

  • Sanitary: This indicates the valve is designed for clean applications with smooth surfaces to minimize areas where bacteria or contaminants can accumulate.
  • 1/4 Inch: This refers to the pipe size (diameter) that the valve is compatible with. In this case, it's a very small diameter, likely used for precise control of flow in low-volume lines.
  • Mini: This term likely refers to the compact size of the valve, suitable for applications where space is limited.
  • Male Female Ball Valve: This describes the connection types on each end of the valve:
    • Male: One end has external threads for screwing into a female threaded port.
    • Female: The other end has an internal thread to receive a male threaded component.
  • Stainless Steel Ball Valve: This signifies the valve body and internal ball (shutoff mechanism) are constructed from stainless steel. Stainless steel is a popular choice for sanitary applications due to its corrosion resistance and ability to withstand cleaning procedures.

Here are some of the advantages of this type of valve:

  • Sanitary Design: Promotes cleanliness and minimizes bacterial harborage points.
  • Compact Size: Ideal for applications with limited space.
  • Versatility: Male and female connections allow for easy integration into piping systems.
  • Durable Material: Stainless steel construction offers corrosion resistance and a long service life.
  • Positive Shutoff: Ball valve design ensures a complete on/off flow control.

Typical Applications:

These valves are suitable for various sanitary applications with small-diameter pipes, including:

  • Food and Beverage Processing: Dosing lines for syrups, flavors, or other additives.
  • Biopharmaceutical Industry: Piping systems for handling sterile fluids, buffers, or process solutions.
  • Chemical Processing: Controlling flow of chemicals that require clean and hygienic environments.
  • Laboratory Equipment: Dosing lines for analytical instruments or pilot plants.

Additional Considerations:

  • Pressure Rating: Make sure the valve's pressure rating is compatible with your system's operating pressure.
  • Flow Rate: Consider the valve's flow capacity to ensure it can handle the desired flow rate in your application.
  • Actuation Type: While not explicitly mentioned, these mini ball valves are typically actuated manually with a lever handle. However, some might be designed for automation with a pneumatic or electric actuator.

Product Name:

Sanitary 1/4 Inch Mini Male Female Ball Valve

Application :

Widely used in food,wine,beverages,dairy products,fine chemicals,pharmaceuticals and health

Materials engineering and many other industries

Operating principles

Driven by the actuator stem 90° rotation,drive the precise manufacturing ball body which with through cavity,turn on or off,so that can control the medium flow

Technical Standards

Request non-retention

Designed and manufactured according to GB/T12237-2007 standard requirements

Length of the structure according to GB/T12221-2005 standard requirements

Connection clamp,welding by DIN,ISO

Temperature and pressure level according to GB.T 12224-2005 standard requirements

Inspection and test according to GB/T 26480 standard requirements

Application scope:

Widely used in food,wine,beverages,dairy products,fine chemicals,pharmaceuticals and health

Materials engineering and many other industries

Technical Data

Maximum product pressure:1000kpa(10bar)

Minimum product pressure:full vacuum

Recommended maximum pressure during braking:600kpa(6bar)

Operating modes:manual,pneumatic,electric

Maximum sterilization temperature,short time:+120℃

Valve Dimensions

Widely used in food,wine,beverages,dairy products,fine chemicals,pharmaceuticals and health

Materials engineering and many other industries
