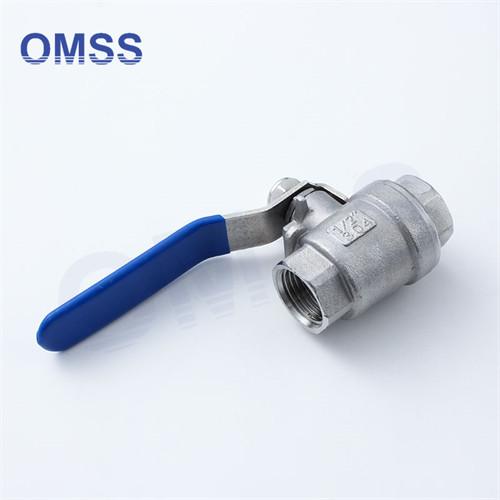

2inch Stainless Steel Sanitary Ball Valve 2PC Ball Valve Stainless Steel 316
2inch Stainless Steel Sanitary Ball Valve 2PC Ball Valve Stainless Steel 316
Specifications
Brand Name :
ONEMO
Model Number :
1"
Certification :
3A、ISO
Place of Origin :
WenZhou,ZheJiang,China
MOQ :
5 Pieces
Price :
/
Payment Terms :
T/T、L/C
Supply Ability :
5000 Piece/Pieces per Month
Packaging Details :
Export Package - Carton Box / Plywood Case / Wooden Case
Type: :
Ball Valves
Customized support: :
OEM,ODM
Port Size :
1/2"-12"
Valve body material: :
SS304/SS316L
End Connection: :
weld,clamp,thread,weld thread,flange
Gasket: :
EPDM,Silicone or PTFE
Working Temperature Range :
-20℃—+135℃
Max Working Pressure: :
1000Kpa/10Bar
Application scope: :
Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc
Operating Principles: :
Sensor, Pneuamtic actuator(single acting, double acting), electric actuato, C-TOP, C-top controller(AS-I)
Description


2inch Stainless Steel Sanitary Ball Valve 2PC Ball Valve stainless steel 316

Key Features

  • Full Port Design: The internal diameter of the valve matches the internal diameter of the pipe, minimizing pressure drop and allowing for unrestricted flow.
  • High Pressure and Temperature Resistance: Due to the stainless steel 316 construction, the valve can withstand high pressures and temperatures.
  • Easy Operation: Ball valves offer quick and easy operation, typically with a quarter-turn (90 degrees) to open or close.
  • Durability: Stainless steel 316 provides excellent durability and longevity, even in corrosive environments.
  • Sanitary Standards: The valve is designed to be cleaned easily and thoroughly, ensuring it meets the hygiene standards required in sensitive applications.

Applications

  • Food and Beverage Processing: Ensures that no contaminants enter the product stream and allows for easy cleaning.
  • Pharmaceutical and Biotech: Maintains sterile conditions necessary for the production of drugs and biological products.
  • Chemical Processing: Handles aggressive chemicals without corroding.
  • Water Treatment: Manages the flow of water and wastewater efficiently.

Installation and Maintenance

  • Installation: Ensure the valve is installed correctly, following the manufacturer's instructions, to prevent leaks and ensure optimal performance.
  • Maintenance: Regular maintenance includes checking for leaks, inspecting seals and the ball for wear and tear, and ensuring that the valve operates smoothly. Because it's a two-piece design, disassembly for maintenance is relatively straightforward.

Conclusion

A 2-inch, 2PC stainless steel sanitary ball valve made from stainless steel 316 is a versatile, durable, and reliable valve suitable for a variety of demanding applications. Its design ensures easy operation, maintenance, and adherence to sanitary standards, making it a valuable component in industries requiring high levels of cleanliness and corrosion resistance.

Product Name:

2inch Stainless Steel Sanitary Ball Valve 2PC Ball Valve stainless steel 316

Application :

Widely used in food,wine,beverages,dairy products,fine chemicals,pharmaceuticals and health
Materials engineering and many other industries

Operating principles

Driven by the actuator stem 90° rotation,drive the precise manufacturing ball body which with through cavity,turn on or off,so that can control the medium flow

Technical Standards

Request non-retention

Designed and manufactured according to GB/T12237-2007 standard requirements

Length of the structure according to GB/T12221-2005 standard requirements

Connection clamp,welding by DIN,ISO

Temperature and pressure level according to GB.T 12224-2005 standard requirements

Inspection and test according to GB/T 26480 standard requirements

Application scope:

Widely used in food,wine,beverages,dairy products,fine chemicals,pharmaceuticals and health

Materials engineering and many other industries

Technical Data

Maximum product pressure:1600kpa(16bar)

Minimum product pressure:full vacuum

Recommended maximum pressure during braking:600kpa(6bar)

Operating modes:manual,pneumatic,electric

Maximum sterilization temperature,short time:+200℃


Valve Dimensions
2inch Stainless Steel Sanitary Ball Valve 2PC Ball Valve Stainless Steel 316
2inch Stainless Steel Sanitary Ball Valve 2PC Ball Valve Stainless Steel 316
2inch Stainless Steel Sanitary Ball Valve 2PC Ball Valve Stainless Steel 316


Widely used in food,wine,beverages,dairy products,fine chemicals,pharmaceuticals and health
Materials engineering and many other industries
