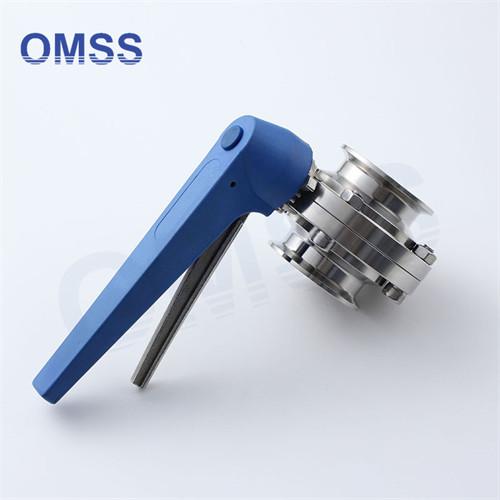

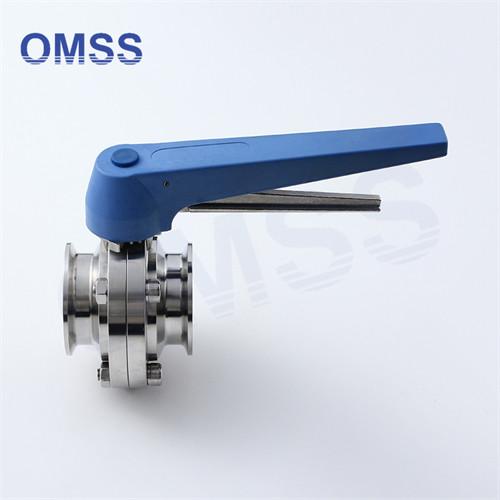

Stainless Steel Flanged Butterfly Valve 0.5-12 3A SMS DIN Food Grade Tri Clover With Pull Trigger
Stainless Steel Flanged Butterfly Valve 0.5-12 3A SMS DIN Food Grade Tri Clover With Pull Trigger
Stainless Steel Flanged Butterfly Valve 0.5-12 3A SMS DIN Food Grade Tri Clover With Pull Trigger
Stainless Steel Flanged Butterfly Valve 0.5-12 3A SMS DIN Food Grade Tri Clover With Pull Trigger
Stainless Steel Flanged Butterfly Valve 0.5-12 3A SMS DIN Food Grade Tri Clover With Pull Trigger
Stainless Steel Flanged Butterfly Valve 0.5-12 3A SMS DIN Food Grade Tri Clover With Pull Trigger
Stainless Steel Flanged Butterfly Valve 0.5-12 3A SMS DIN Food Grade Tri Clover With Pull Trigger
Stainless Steel Flanged Butterfly Valve 0.5-12 3A SMS DIN Food Grade Tri Clover With Pull Trigger
Stainless Steel Flanged Butterfly Valve 0.5-12 3A SMS DIN Food Grade Tri Clover With Pull Trigger
Stainless Steel Flanged Butterfly Valve 0.5-12 3A SMS DIN Food Grade Tri Clover With Pull Trigger
Specifications
Brand Name :
ONEMO
Model Number :
1 1/2"
Certification :
3A、ISO
Place of Origin :
WenZhou,ZheJiang,China
MOQ :
5 Pieces
Payment Terms :
T/T、L/C
Supply Ability :
5000 Piece/Pieces per Month
Packaging Details :
Export Package - Carton Box / Plywood Case / Wooden Case
Type :
Stainless Steel Valves
Customized support :
OEM,ODM
Port Size :
1/2"-12",DN10-DN200,
Valve body material :
SS304/SS316L
Gasket :
EPDM,Silicone or PTFE
End Connection :
Welding,Clamp end,Threaded,flange.etc
Handle type :
Pulling handle/Multi-positon handle
Working Temperature Range :
-20℃—+135℃
Max Working Pressure :
10Bar
Operation Type: :
Manual, Pneumatic, Electric
Application scope: :
Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc
Description

3A SMS DIN Food Grade SS304/316L Tri Clover Compatible Pull Trigger Butterfly Valve

Working Principle:

This kind of valve can be handled by manual an electric actuator,and also can be handled by a pneumatic actuator.

Electric actuator or pneumatic actuator covert the axial movement of piston to be 90° rotation of valve shaft.So that the valve can be open or close to achieve the requirement of control and open/close for the pipeline system.They have three type of actuator:normally open(NO),normally closed(NC),air/air(A/A). or close four position,also achieves control of medium flow purpose.

Muti-position handle regulates the valve by 15° in its open or close 12 seats achiening control of medium flow purpose;

Pulling handle regulates the valve through four multi-function positioning.in its open or close 4 seats achiening control of medium flow purpose;

Application:

The series of this valve are sanitary pneumatic or manual butterfly valves,which are widely used in stainless steel pipeline system to control and regulate mediumflow

Specifications:

Metal Materla Contact with the product components 304/316L(1.4301/1.4404)Forging Can provide material inspection report
Materal No contact with the product components 304/202(1.4301/202)
Sealing material Standard VMQ Adopt import sealing materials,which all meet The FDA 117.2600
Option EPDM/FRM
Pressure Pressure of work 0~10 bar
Control air pressure 5-8 bar
Temperature Working temperature VMQ:(-50~+180℃)EPDM:(-20~+135℃)FPM:(-30~230℃)
Sterilization temperature 150℃(MAX 20min)
Surface treatment Inside surface treatment Ra ≥ 0.4 - 0.8 μm
Surface treatment Ra ≥ 0.8 - 1.6 μm
Connection The diameter welding Welding connection:DIN 11850-2 with 11850-1 / SMS / 3A / ISO Series etc
Connection mode welding,clamp,male and female,flange,etc
Optional driven Brainpower
Pneumatic control , Pneumatic head and fixed bracket


Modular Connection type system

Stainless Steel Flanged Butterfly Valve 0.5

Stainless Steel Flanged Butterfly Valve 0.5

Stainless Steel Flanged Butterfly Valve 0.5


Valve Dimensions
Stainless Steel Flanged Butterfly Valve 0.5

Stainless Steel Flanged Butterfly Valve 0.5
