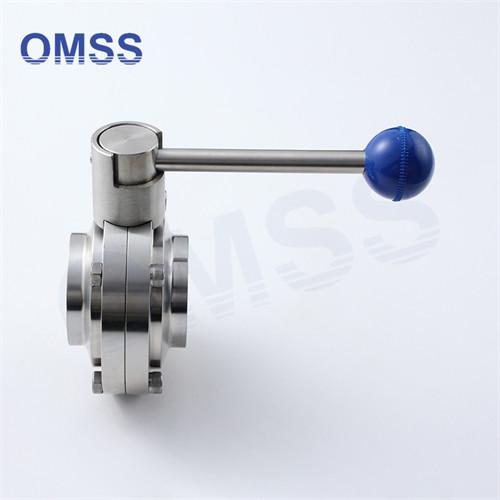

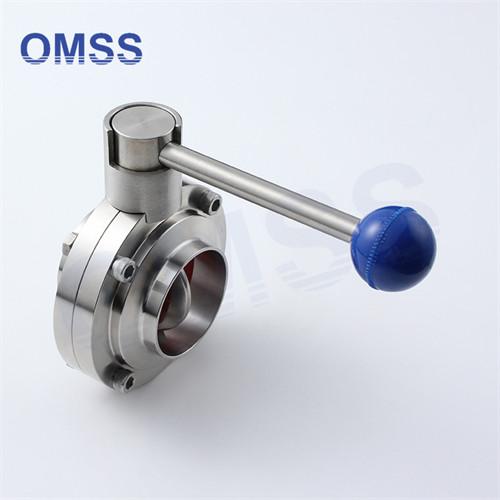

Sanitary Butterfly Valve 3A SMS DIN Food Grade SS304/316L Weld Manual With Pull Handle
Sanitary Butterfly Valve 3A SMS DIN Food Grade SS304/316L Weld Manual With Pull Handle
Sanitary Butterfly Valve 3A SMS DIN Food Grade SS304/316L Weld Manual With Pull Handle
Sanitary Butterfly Valve 3A SMS DIN Food Grade SS304/316L Weld Manual With Pull Handle
Sanitary Butterfly Valve 3A SMS DIN Food Grade SS304/316L Weld Manual With Pull Handle
Sanitary Butterfly Valve 3A SMS DIN Food Grade SS304/316L Weld Manual With Pull Handle
Sanitary Butterfly Valve 3A SMS DIN Food Grade SS304/316L Weld Manual With Pull Handle
Sanitary Butterfly Valve 3A SMS DIN Food Grade SS304/316L Weld Manual With Pull Handle
Sanitary Butterfly Valve 3A SMS DIN Food Grade SS304/316L Weld Manual With Pull Handle
Sanitary Butterfly Valve 3A SMS DIN Food Grade SS304/316L Weld Manual With Pull Handle
Specifications
Brand Name :
ONEMO
Model Number :
1 1/2"
Certification :
3A、ISO
Place of Origin :
WenZhou,ZheJiang,China
MOQ :
5 Pieces
Payment Terms :
T/T、L/C
Supply Ability :
5000 Piece/Pieces per Month
Packaging Details :
Export Package - Carton Box / Plywood Case / Wooden Case
Type :
Stainless Steel Valves
Customized support :
OEM,ODM
Port Size :
1/2"-12",DN10-DN200,
Valve body material :
SS304/SS316L
Gasket :
EPDM,Silicone or PTFE
End Connection :
Welding,Clamp end,Threaded,flange.etc
Handle type :
Pulling handle/Multi-positon handle
Working Temperature Range :
-20℃—+135℃
Max Working Pressure :
10Bar
Operation Type: :
Manual, Pneumatic, Electric
Application scope: :
Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc
Description

3A SMS DIN Food Grade SS304/316L Weld Manual Sanitary Stainless Steel Butterfly Valve with pull handle

Working Principle:

This kind of valve can be handled by manual an electric actuator,and also can be handled by a pneumatic actuator.

Electric actuator or pneumatic actuator covert the axial movement of piston to be 90° rotation of valve shaft.So that the valve can be open or close to achieve the requirement of control and open/close for the pipeline system.They have three type of actuator:normally open(NO),normally closed(NC),air/air(A/A). or close four position,also achieves control of medium flow purpose.

Muti-position handle regulates the valve by 15° in its open or close 12 seats achiening control of medium flow purpose;

Pulling handle regulates the valve through four multi-function positioning.in its open or close 4 seats achiening control of medium flow purpose;

Application:

The series of this valve are sanitary pneumatic or manual butterfly valves,which are widely used in stainless steel pipeline system to control and regulate mediumflow

Specifications:

Metal Materla Contact with the product components 304/316L(1.4301/1.4404)Forging Can provide material inspection report
Materal No contact with the product components 304/202(1.4301/202)
Sealing material Standard VMQ Adopt import sealing materials,which all meet The FDA 117.2600
Option EPDM/FRM
Pressure Pressure of work 0~10 bar
Control air pressure 5-8 bar
Temperature Working temperature VMQ:(-50~+180℃)EPDM:(-20~+135℃)FPM:(-30~230℃)
Sterilization temperature 150℃(MAX 20min)
Surface treatment Inside surface treatment Ra ≥ 0.4 - 0.8 μm
Surface treatment Ra ≥ 0.8 - 1.6 μm
Connection The diameter welding Welding connection:DIN 11850-2 with 11850-1 / SMS / 3A / ISO Series etc
Connection mode welding,clamp,male and female,flange,etc
Optional driven Brainpower
Pneumatic control , Pneumatic head and fixed bracket


Modular Connection type system

Sanitary Butterfly Valve 3A SMS DIN Food Grade SS304/316L Weld Manual With Pull Handle

Sanitary Butterfly Valve 3A SMS DIN Food Grade SS304/316L Weld Manual With Pull Handle

Sanitary Butterfly Valve 3A SMS DIN Food Grade SS304/316L Weld Manual With Pull Handle


Valve Dimensions
Sanitary Butterfly Valve 3A SMS DIN Food Grade SS304/316L Weld Manual With Pull Handle

Sanitary Butterfly Valve 3A SMS DIN Food Grade SS304/316L Weld Manual With Pull Handle
