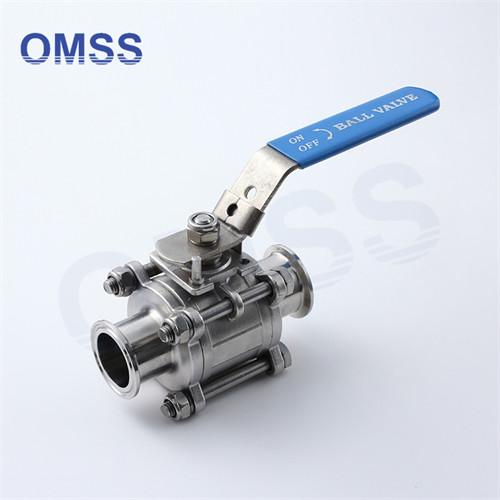

SS304 Ball Sanitary Valve Clamped Stainless Steel Ball Npt Valve For Beverage
SS304 Ball Sanitary Valve Clamped Stainless Steel Ball Npt Valve For Beverage
Specifications
Brand Name :
ONEMO
Model Number :
1"
Certification :
3A、ISO
Place of Origin :
WenZhou,ZheJiang,China
MOQ :
5 Pieces
Price :
/
Payment Terms :
T/T、L/C
Supply Ability :
5000 Piece/Pieces per Month
Packaging Details :
Export Package - Carton Box / Plywood Case / Wooden Case
Type: :
Ball Valves
Customized support: :
OEM,ODM
Port Size :
1/2"-12"
Valve body material: :
SS304/SS316L
End Connection: :
weld,clamp,thread,weld thread,flange
Gasket: :
EPDM,Silicone or PTFE
Working Temperature Range :
-20℃—+135℃
Max Working Pressure: :
1000Kpa/10Bar
Application scope: :
Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc
Operating Principles: :
Sensor, Pneuamtic actuator(single acting, double acting), electric actuato, C-TOP, C-top controller(AS-I)
Description

SS304 Sanitary Valve: Clamped Stainless Steel Ball NPT Valve for Beverage

Welcome to our premium collection of sanitary valves, featuring the SS304 Sanitary Valve with clamped stainless steel construction and NPT threading, specifically designed for beverage applications.

High-Quality Material:

Crafted from high-grade SS304 stainless steel, our sanitary valve ensures durability and reliability in beverage processing environments. The stainless steel construction offers superior corrosion resistance, ensuring long-term performance and product integrity.

Precision Engineering:

Each sanitary valve undergoes meticulous engineering to meet stringent industry standards. With NPT threading, our valves provide a secure and leak-free connection, ensuring efficient beverage flow and minimal product wastage.

Versatile Application:

Available in various sizes, our SS304 Sanitary Valve caters to a wide range of beverage processing needs. Whether you're managing a brewery, winery, or beverage production facility, our valves offer versatile solutions for every application.

Optimized for Beverage Processing:

Designed specifically for beverage applications, our sanitary valve meets the highest hygiene standards. The smooth surface finish and sanitary design prevent bacterial growth, ensuring product purity and integrity throughout the processing cycle.

Durable and Reliable:

Built to withstand the demands of beverage processing, our valves are tested for durability and reliability. With their robust construction and precise engineering, they offer long-term performance with minimal maintenance requirements.

Product Name:

2inch Stainless Steel Sanitary Ball Valve Clamped Ball Valve stainless steel ball valvestainless steel 316

Application :

Widely used in food,wine,beverages,dairy products,fine chemicals,pharmaceuticals and health

Materials engineering and many other industries

Operating principles

Driven by the actuator stem 90° rotation,drive the precise manufacturing ball body which with through cavity,turn on or off,so that can control the medium flow

Technical Standards

Request non-retention

Designed and manufactured according to GB/T12237-2007 standard requirements

Length of the structure according to GB/T12221-2005 standard requirements

Connection clamp,welding by DIN,ISO

Temperature and pressure level according to GB.T 12224-2005 standard requirements

Inspection and test according to GB/T 26480 standard requirements

Application scope:

Widely used in food,wine,beverages,dairy products,fine chemicals,pharmaceuticals and health

Materials engineering and many other industries

Technical Data

Maximum product pressure:1600kpa(16bar)

Minimum product pressure:full vacuum

Recommended maximum pressure during braking:600kpa(6bar)

Operating modes:manual,pneumatic,electric

Maximum sterilization temperature,short time:+200℃

Product tags

1 2 stainless steel ball valve

,

3 piece stainless ball valve

,

stainless 3 way ball valve
