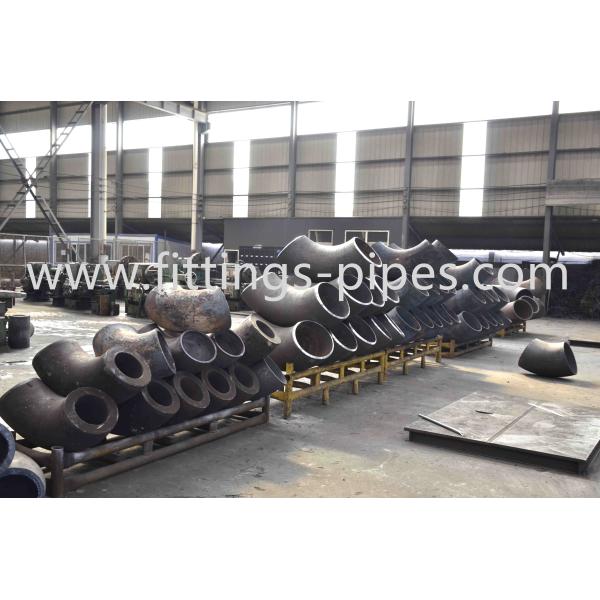

Astm Elbow Astm A234 45 Degree 90 Degree Lr Dn500 Sch160
Astm Elbow Astm A234 45 Degree 90 Degree Lr Dn500 Sch160
Astm Elbow Astm A234 45 Degree 90 Degree Lr Dn500 Sch160
Astm Elbow Astm A234 45 Degree 90 Degree Lr Dn500 Sch160
Astm Elbow Astm A234 45 Degree 90 Degree Lr Dn500 Sch160
Astm Elbow Astm A234 45 Degree 90 Degree Lr Dn500 Sch160
Specifications
Brand Name :
hongcheng
Model Number :
1/2" TO 44 "
Certification :
Pcoc, Reach, Iecee, Scoc, Epa, Gs
Place of Origin :
China
MOQ :
1PC
Price :
consult
Payment Terms :
L/C, D/P, T/T
Supply Ability :
2 Million Ton/Year
Delivery Time :
7-15 work days
Packaging Details :
Plywood Cases or Pallets
Size : :
Customized Size,1/2"~44"
Certification: :
ASME DNV BV API CE ABS CE
Material: :
A234 WPB,A234 WP1,A234 WP5,A234,WP9, A234 WPB11,A234 WPB12,A234 WPB22,WP91,
Model Number: :
90 degree elbow
Thickness: :
SCH20 SCH40 STD SCH60 SCHXS SCH80 SCH160 SCHXXS
DEGREE: :
15° 30° 45° 60° 90° 180°
Standard: :
Astm a234 / Ansi B16.9
Application: :
supply water/oil system
Description

Steel Pipe Elbow ASTM 45 Degree 90 Degree LR DN500 SCH160 Butt WeldingAlloy Steel A234 WPB,A234 WP5 WP11 WP9 Elbow

Application

1)Used in industrial, chemical equipment,

2)Used in life stainless steel items

3)Building materials, architectural decoration

4)For fluid & gas transport

b)Structure & machining,etc

Astm Elbow Astm A234 45 Degree 90 Degree Lr Dn500 Sch160

Material NO. Chemical component content Mechanical properties
C Mn Si S P Cr Mo Ni Tensile Strength Yield strength elongation
carbon steel A234WPB ≤0.3 0.29-1.06 ≥0.1 ≤0.058 ≤0.05 415-585 ≥240 ≥30
A420 WPL6 ≤0.3 0.6-1.35 0.15-0.3 ≤0.04 ≤0.035 415-585 ≥240 ≥30
alloy steel A234 WP5 ≤0.15 ≤0.6 ≤0.5 ≤0.04 ≤0.03 4-6 0.44-0.65 415-585 ≥205 ≥20
A234 WP11 0.05-0.2 0.3-0.8 0.5-1 ≤0.030 ≤0.030 1-1.5 0.44-0.65 415-585 ≥205 ≥20
A234 WP22 0.05-0.15 0.3-0.6 ≤0.5 ≤0.04 ≤0.04 2-2.5 0.87-1.13 415-585 ≥205 ≥20
A234 WP91 0.08-0.12 0.3-0.6 0.2-0.5 ≤0.02 ≤0.015 8-9.5 0.85-1.05 ≥590 ≥415 ≥20
pipeline steel A860 WPHY42 ≤0.20 1-1.45 0.15-0.4 ≤0.015 ≤0.030 ≥415 ≥290 /
A860 WPHY52 ≤0.20 1-1.45 0.15-0.4 ≤0.015 ≤0.030 ≥455 ≥360 /
A860 WPHY60 ≤0.20 1-1.45 0.15-0.4 ≤0.015 ≤0.030 ≥515 ≥415 /
A860 WPHY65 ≤0.20 1-1.45 0.15-0.4 ≤0.015 ≤0.030 ≥530 ≥450 /
A860 WPHY70 ≤0.20 1-1.45 0.15-0.4 ≤0.015 ≤0.030 ≥550 ≥485 /
stainless steel A403 WP 304 ≤0.08 ≤2 ≤1 ≤0.04 ≤0.03 18-20 8-11 ≥515 ≥205 ≥30
A403 WP 304L ≤0.03 ≤2 ≤1 ≤0.04 ≤0.03 18-20 8-13 ≥485 ≥170 ≥30
A403 WP 316 ≤0.08 ≤2 ≤1 ≤0.045 ≤0.03 16-18 2-3 10-14 ≥515 ≥205 ≥30
A403 WP 316L ≤0.03 ≤2 ≤1 ≤0.045 ≤0.03 16-18 2-3 10-15 ≥485 ≥170 ≥30
A403 WP 321 ≤0.08 ≤2 ≤1 ≤0.045 ≤0.03 17-19 9-12 ≥515

products description:

Porduct Name 800 / 800H inconloy elbow
Size 1/2"-24" seamless, 26"-60" welded
Standard ANSI B16.9, EN10253-4, DIN 2605, GOST 17375-2001, JIS B2313, MSS SP 75, etc.
Wall thickness SCH5S, SCH10S, SCH10, SCH40S, STD, XS, SCH80S, XXS, SCH20, SCH30, SCH40,
SCH60, SCH80, SCH160, XXS and etc.
Elbow 30° 45° 60° 90° 180°,etc
Radius LR/long radius/R=1.5D,SR/Shrot radius/R=1D, various radius: 3D,4D,5D,6D,7D,
10D,20D etc.
End Bevel end/BE/buttweld
Surface Pickled,sand blasting, rolling blast,brighten,matt polished,mirror polished,vanished,
shinning
Material Stainless steel: A403 WP304/304L, A403 WP316/316L, A403 WP321, A403 WP310S,
A403 WP347H, A403 WP316Ti, A403 WP317, 904L, 1.4301,1.4307,1.4401,1.4571,
1.4541, 254Mo and etc.
Duplex stainless steel: UNS31803, SAF2205, UNS32205, UNS31500, UNS32750 ,
UNS32760, 1.4462,1.4410,1.4501 and etc.
Nickel alloy: inconel600, inconel625, inconel690, incoloy800, incoloy 825, incoloy 800H,
C22, C-276,Monel400, Alloy20 etc.

Astm Elbow Astm A234 45 Degree 90 Degree Lr Dn500 Sch160

Sfenry ANSI B16.9 LR BW ASTM A234 GR.WPB SCH40 Butt Weld 90 Degree Pipe Elbow

We Sfenry has been engaged producing and supplying all kinds of flanges & pipe fittings over 16 years.

Size

SMLS ---1/2"-24"

WELDED--24"-48"

Degree

22.5deg, 30deg, 45deg, 60deg, 90deg, 180deg

Thickness

sch5, sch5s, sch10s, sch10, sch20, sch30, sch40, sch40s, sch80s,STD, SCH60, XS, sch80, sch100, sch120, sch140, sch160, XXS, or as per your requirement

Standard

ASME B16.9, ASME B16.28, ASME B16.25, MSS SP 75, DIN 2605, JISB2311 JISB2312 JISB2313, BS, GB, etc

Mterial

  1. carbon steel: A106 GR.B, A234 WPB, A234 WPC, A420 WPL6, 20#, 10#, Q235 etc.

  2. Stainless steel: ASTM A403 WP304, 304L, 316, 316L, 321, 1Cr18Ni9Ti, 00Cr19Ni10 etc.

  3. Alloy steel: ASTM A234 WP12,WP11,WP22,WP5,WP9,WP91,12 Cr1MoV, 10CrMo910,15CrMo, 12Cr2Mo1, ect

Surface

usually paint black, galv., for carbon steel and alloy steel, and for stainless steel bends we usually dont do anything on the surface

Certification

ISO 9001:2015

Packing

plywood cases, pallets, or as per your request.

Application

Petroleum, chemical, machinery, electric power, shipbuilding, papermaking, construction etc

Port of delivery

Shanghai port, Xingang port, Xiamen port, Ningbo port etc.

Astm Elbow Astm A234 45 Degree 90 Degree Lr Dn500 Sch160

Astm Elbow Astm A234 45 Degree 90 Degree Lr Dn500 Sch160

Astm Elbow Astm A234 45 Degree 90 Degree Lr Dn500 Sch160

Astm Elbow Astm A234 45 Degree 90 Degree Lr Dn500 Sch160

Astm Elbow Astm A234 45 Degree 90 Degree Lr Dn500 Sch160

Best service for our clients is our aim with our high quality products and the best protection for our products, to make sure the cargo in perfect condition once arriving our customs' hand.

At the same time, our price is competitive among our competitors!

Astm Elbow Astm A234 45 Degree 90 Degree Lr Dn500 Sch160

Astm Elbow Astm A234 45 Degree 90 Degree Lr Dn500 Sch160
