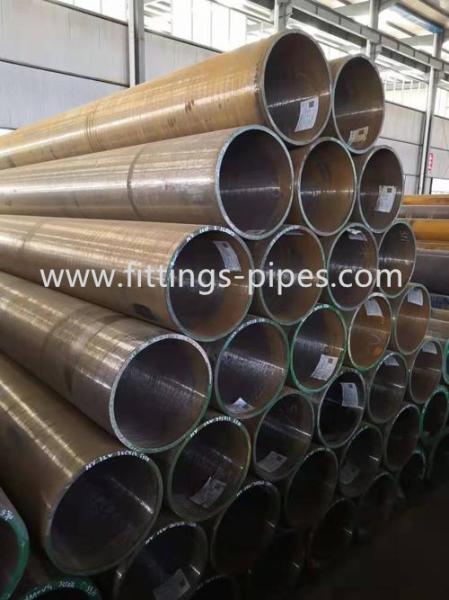

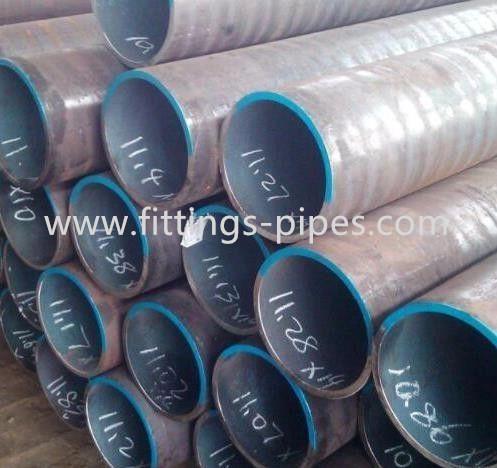

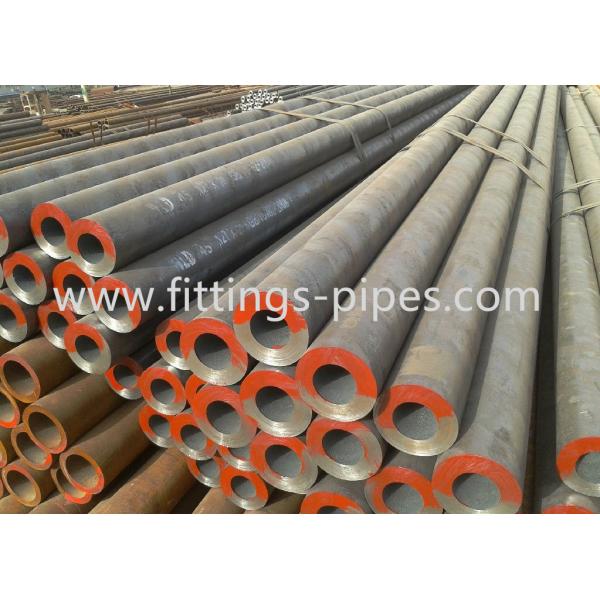

2-50mm Thickness Seamless Carbon Steel Boiler Pipe Tubes ASTM A192
2-50mm Thickness Seamless Carbon Steel Boiler Pipe Tubes ASTM A192
2-50mm Thickness Seamless Carbon Steel Boiler Pipe Tubes ASTM A192
2-50mm Thickness Seamless Carbon Steel Boiler Pipe Tubes ASTM A192
Specifications
Brand Name :
HongCheng
Model Number :
1"TO36 "
Certification :
PED、ABS、BV、DNV、GL、LR、SGS、IEI
Place of Origin :
China
MOQ :
0.5Ton
Price :
0.5 Ton US $2843/ Ton；>3 Tons US $2510/ Ton
Payment Terms :
L/C, D/P, T/T
Supply Ability :
2 Million Ton/Year
Delivery Time :
7-15 work days
Packaging Details :
Standard package or as requirements.
Product name: :
High Pressure Boiler Steel Pipe
Standard: :
ASTM
Payment terms: :
30%TT Advance + 70% Balance
Surface Treatment: :
Cold Rolled
Section Shape: :
Round
Length: :
12M, 6m, 6.4M, 6M, 12M/Customed
Thickness: :
2-50 mm
Usage： :
Pipeline Transport, Boiler Pipe, Machinery Industry, Chemical Industry
Surface: :
Black paint, Varnished,Galvanized,Customed
Description

Seamless Carbon Steel Boiler Pipes Tubes ASTM A192, ASTM A192

High-pressure boiler tubes are a type of boiler tubes and belong to the category of seamless steel tubes. The manufacturing method is the same as that of the seamless pipe, but there are strict requirements on the steel type used in the manufacture of the steel pipe.

High-pressure boiler tubes are often under high temperature and high pressure conditions when used, and the tubes will be oxidized and corroded under the action of high-temperature flue gas and water vapor. Steel pipes are required to have high durable strength, high resistance to oxidation and corrosion, and good structural stability.

High-pressure boiler tubes are mainly used to manufacture superheater tubes, reheater tubes, gas guide tubes, main steam tubes, etc. of high-pressure and ultra-high pressure boilers.

Production process

Hot rolling (extruded seamless steel pipe): pipe billet → heating → perforation → three-roll oblique rolling, continuous rolling or extrusion → pipe → diameter (or diameter reduction) cooling pipe straightening → hydraulic test (or flaw detection) marking → storage.

cold drawn (rolled) seamless steel tube billet → heating → perforation → head → annealing → pickling → oiling (copper plating), multi-pass cold drawing (cold rolling)→ billet tube → heat treatment, straightening → water pressure test (flaw detection), marking → storage

Product Description

Standard

GB/T5310,GB/T3087ASTM A355,ASTM A106, ASTM A53, API 5L Gr.B, DIN17175,DIN1629

Material

20G,15Cr1MoVG,12Cr1MoVGASTM A106B, ASTM A53B, API 5L Gr.B,ST52,

ST37,ST44,SAE1010/1020/1045,S45C/CK45,SCM435,AISI4130/4140

Outer diameter

10.3mm-609.6mm

Wall thickness

1.5mm-30mm

Length

3m-12m, random or fixed, as the clients' requests

Technology

Hot Rolled

Tolerance

Control with in the standard, OD:+/-0.2mm, WT:+/-0.2mm

Advantages

1.Short delivery time

2.Quality assurance

3.Competitive price

4.Free Sample

2-50mm Thickness Seamless Carbon Steel Boiler Pipe Tubes ASTM A192

2-50mm Thickness Seamless Carbon Steel Boiler Pipe Tubes ASTM A192

2-50mm Thickness Seamless Carbon Steel Boiler Pipe Tubes ASTM A192

2-50mm Thickness Seamless Carbon Steel Boiler Pipe Tubes ASTM A192

2-50mm Thickness Seamless Carbon Steel Boiler Pipe Tubes ASTM A192

2-50mm Thickness Seamless Carbon Steel Boiler Pipe Tubes ASTM A192

2-50mm Thickness Seamless Carbon Steel Boiler Pipe Tubes ASTM A192
