UL9540A Lithium Battery Thermal Runaway Test Chamber 220V 6kW
UL9540A Lithium Battery Thermal Runaway Test Chamber 220V 6kW
UL9540A Lithium Battery Thermal Runaway Test Chamber 220V 6kW
UL9540A Lithium Battery Thermal Runaway Test Chamber 220V 6kW
UL9540A Lithium Battery Thermal Runaway Test Chamber 220V 6kW
UL9540A Lithium Battery Thermal Runaway Test Chamber 220V 6kW
UL9540A Lithium Battery Thermal Runaway Test Chamber 220V 6kW
UL9540A Lithium Battery Thermal Runaway Test Chamber 220V 6kW
UL9540A Lithium Battery Thermal Runaway Test Chamber 220V 6kW
UL9540A Lithium Battery Thermal Runaway Test Chamber 220V 6kW
UL9540A Lithium Battery Thermal Runaway Test Chamber 220V 6kW
UL9540A Lithium Battery Thermal Runaway Test Chamber 220V 6kW
Specifications
Brand Name :
Gold
Model Number :
GD-UL9540A
Certification :
iso
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C,D/A,D/P,T/T,,MoneyGram
Supply Ability :
1 Set per 30 days
Delivery Time :
45 days
Packaging Details :
Standard Wooden Case
Name :
A Thermal Runaway Lithium Battery Explosion Test Chamber
Standard :
Ul9540a
power supply :
220V, 6kw
The total amount of equipment: :
1300kg
The cabin occupies the size :
width 1.5 meters X length 2.5 meters X height 2 meters
Material :
SUS304 stainless steel.
Description
UL9540A Thermal Runaway Lithium Battery Explosion Test Chamber
Attribute Value
Name Thermal Runaway Lithium Battery Explosion Test Chamber
Standard UL9540A
Power Supply 220V, 6kW
Total Weight 1300kg
Dimensions 1.5m (W) × 2.5m (L) × 2m (H)
Material SUS304 Stainless Steel
Product Introduction

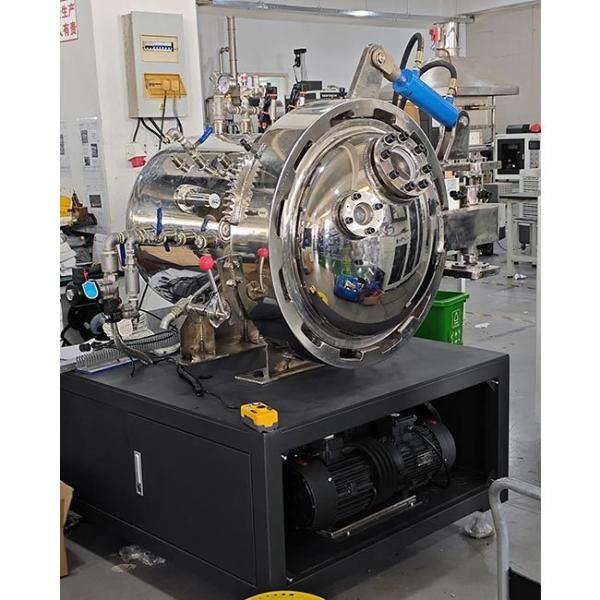

The Lithium Battery Explosion Chamber is designed for thermal runaway combustion and explosion testing of lithium batteries. The system provides a sealed, pressurized environment to safely contain the rapid energy release and toxic gases produced during battery failure.

Key Components
  • Explosion chamber with pressure-resistant design
  • Heating system with precise temperature control
  • Pressure and temperature detection systems
  • Air purging and nitrogen filling systems
  • Vacuum and gas sampling systems
  • Comprehensive data acquisition system
  • Computer-controlled operation with video monitoring
UL9540A Lithium Battery Thermal Runaway Test Chamber 220V 6kW
Standard Compliance

UL 9540A - Test Method for Evaluating Thermal Runaway Fire Propagation in Battery Energy Storage Systems

Applications
Lithium-ion Battery (Li-ion Battery)
Lithium-polymer Battery (Li-Polymer Battery)
Lithium Iron Phosphate Battery (LiFePO4 Battery)
Nickel-Cobalt-Manganese Battery (NCM Battery)
Nickel-Cobalt-Aluminum Battery (NCA Battery)
Lithium-Sulfur Battery (Li-S Battery)
Solid-State Lithium Battery
Lithium Titanate Battery (LTO Battery)
Lithium Metal Battery
Technical Specifications

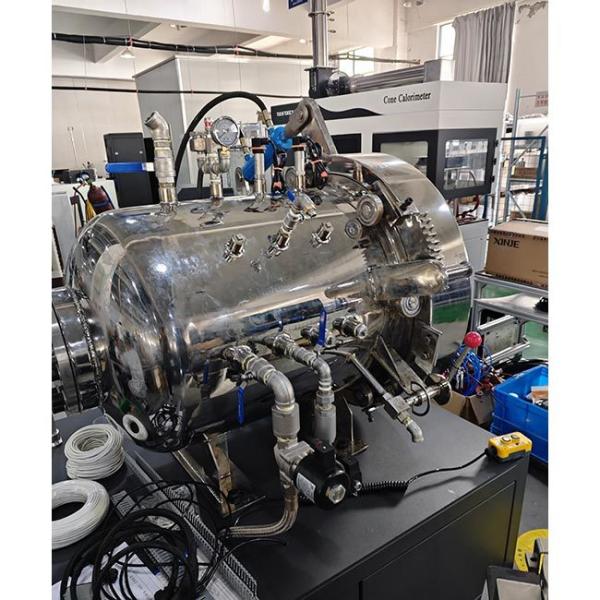

Tank Structure: Cylindrical design with SUS304 stainless steel construction
Pressure Capacity: Maximum 3MPa, constant 2.5MPa
Safety Features: Dual pressure relief channels with imported valves

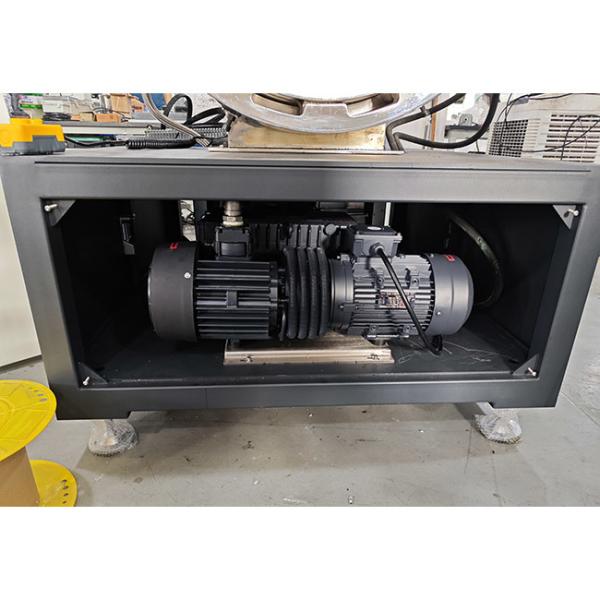

Vacuum System: ≤1.0kPa vacuum with ≥10L/s pumping rate

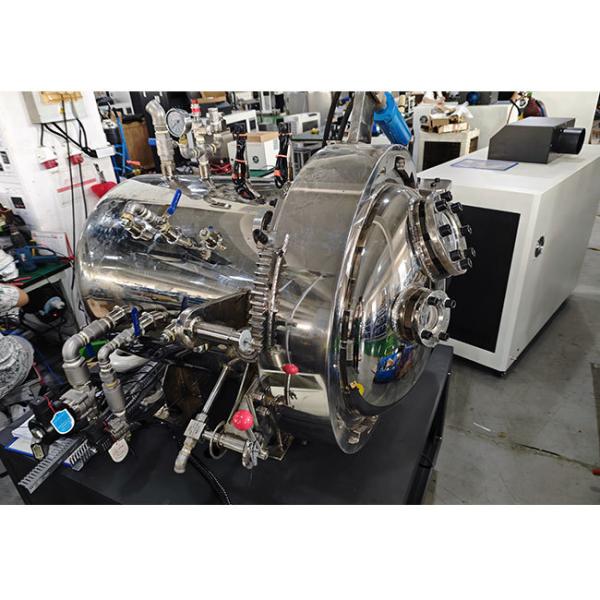

Observation: High-pressure glass windows (125mm diameter, ≥3MPa resistance)

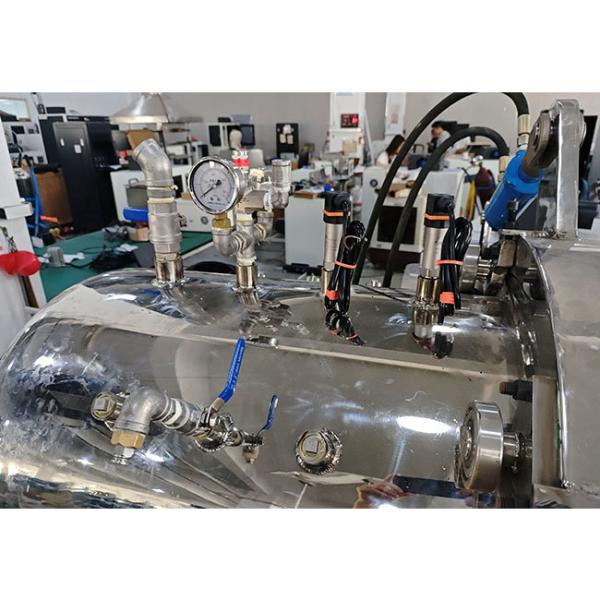

Measurement Systems
  • Pressure: 0-3MPa range with ±0.5% FS accuracy
  • Temperature: 0-1300°C range with ±1°C accuracy (16 channels)
  • Data Acquisition: 10Hz temperature, 100Hz pressure sampling
  • Control System: Computer + Labview with automatic gas replacement
Electrical Interfaces
  • 2 sample heating channels
  • 4 voltage acquisition channels
  • 16 temperature acquisition channels
  • 2 pressure signal channels (vacuum + high pressure)
  • 2 reserved charging interfaces (300A each)
Physical Specifications
Dimensions: 1.5m (W) × 2.5m (L) × 2m (H)
Weight: 1300kg
Power Supply: 220V, 6kW
