EN 15967 Gas and Vapor Maximum Explosion Pressure Chamber With UL9540A
EN 15967 Gas and Vapor Maximum Explosion Pressure Chamber With UL9540A
EN 15967 Gas and Vapor Maximum Explosion Pressure Chamber With UL9540A
EN 15967 Gas and Vapor Maximum Explosion Pressure Chamber With UL9540A
EN 15967 Gas and Vapor Maximum Explosion Pressure Chamber With UL9540A
EN 15967 Gas and Vapor Maximum Explosion Pressure Chamber With UL9540A
EN 15967 Gas and Vapor Maximum Explosion Pressure Chamber With UL9540A
EN 15967 Gas and Vapor Maximum Explosion Pressure Chamber With UL9540A
Specifications
Model Number :
GD-BS EN 13823
Delivery Time :
30days
Place of Origin :
China
Standard :
EN 15967,UL9540A
Type :
Finished Batteries Tester
Explosion Pressure Sensor :
2.0MPa, Linearity ± 1.0% Fs
Test Object :
Gas or Gasification of Solids, Liquids
Computer Control System :
Automatic
Name :
Gas and Vapor Maximum Explosion Pressure Chamber
Payment Terms :
L/C,D/A,D/P,T/T,,MoneyGram
Brand Name :
GOLD
Supply Ability :
1set/Month
Application :
Lithium-Ion Battery
Price :
USD8000-9500/set
Certification :
ISO
MOQ :
1set
Working Environment :
(-5 ~ 45) ℃, <95% Rh
Packaging Details :
Standard Wooden Case
Description
EN 15967 Gas and Vapor Maximum Explosion Pressure Chamber With UL9540A

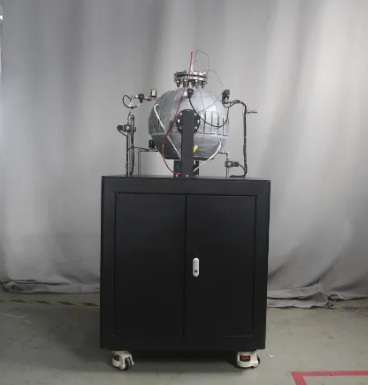

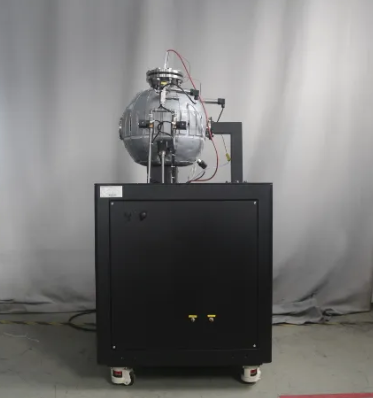

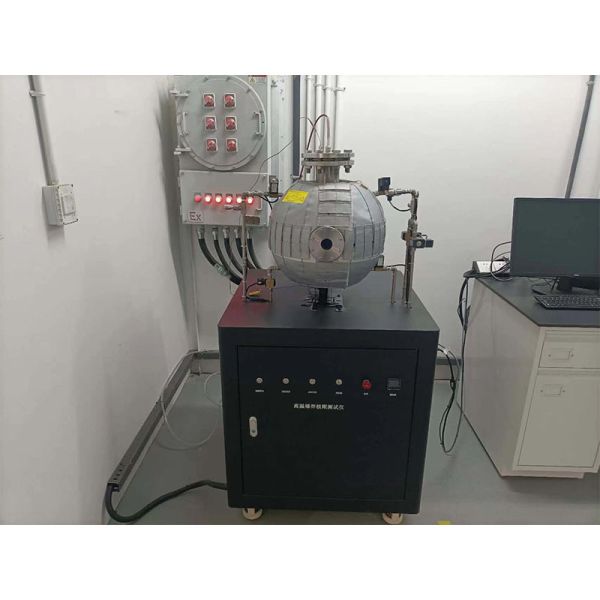

The Max Explosion Pressure Chamber is used to determine the maximum explosion pressure of cell vent gas by filling the same composition of synthetically replicated gas into the explosion chamber and testing. The 20L volume explosion chamber is designed in accordance with EN 15967 and UL 9540A standards, featuring low chamber volume to reduce test costs while improving test repeatability.
Test Capabilities
Test Object: Single or mixed flammable gases
Test Parameters: Measurement of maximum explosion pressure, explosion index, rate of pressure rise, and explosive limit oxygen concentration
Compliance Standards
• EN 15967: Determination of maximum explosion pressure and the maximum rate of pressure rise of gases and vapours
• UL 9540A
Technical Specifications
Container Pressure Resistance Design pressure of 3.0 MPa at 25°C
Sphere Material 316L stainless steel
Explosion Pressure Sensor Measurement range of 0-30 bar
Explosion Pressure Detection Channels 2 channels
Stirrer 20-800 rpm
Temperature Control 25°C ± 0.2°C
Power Supply 220V, 50Hz, 500W
Gas Requirement Compressed air from an air compressor (oil-free and dry)
EN 15967 Gas and Vapor Maximum Explosion Pressure Chamber With UL9540A
Key Features

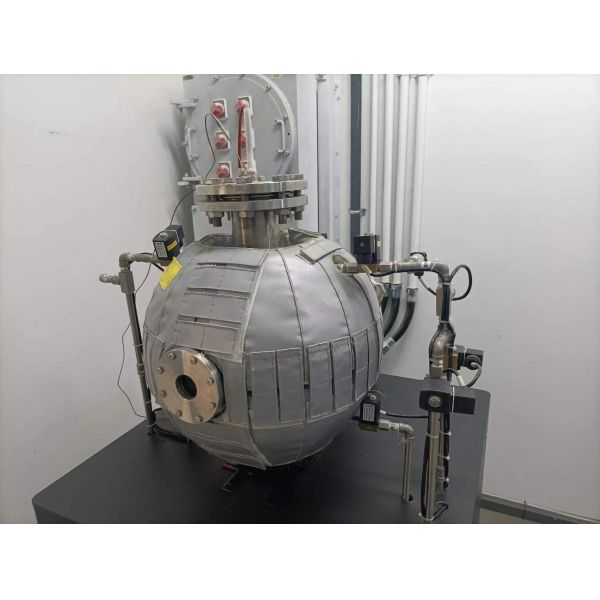

  • 20L stainless steel explosion chamber construction
  • Heater provides rapid control and stable regulation of explosion field temperature with stable warming rate of 5m
  • Equipped with imported high-precision pressure sensors and Dalton partial pressure method for precise gas mixture control
  • Fully automated control system including automatic vacuum, gas distribution, and stirring
  • Stainless steel container pressure: 2.0Mpa, burst valve pressure: 2.0Mpa
  • Explosion pressure sensor: 2.0Mpa, linearity ± 1.0% FS
  • Automatic computer control system outputs temperature and pressure curves while calculating gas combustion limits, maximum burst pressure, and combustion explosion index parameters
  • Operating environment: (-5 ~ 45)°C, <95% RH
  • Test compatibility: gas or gasification of solids and liquids
EN 15967 Gas and Vapor Maximum Explosion Pressure Chamber With UL9540A EN 15967 Gas and Vapor Maximum Explosion Pressure Chamber With UL9540A
