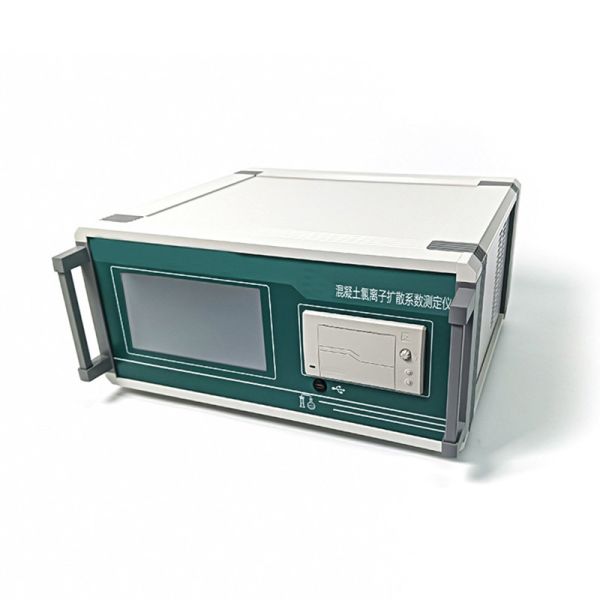

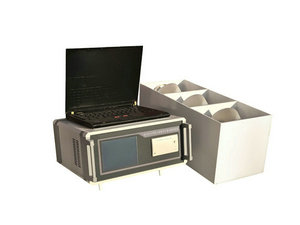

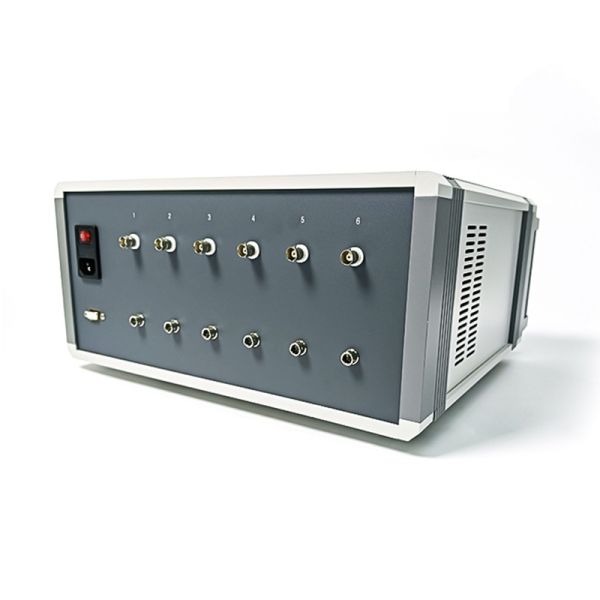

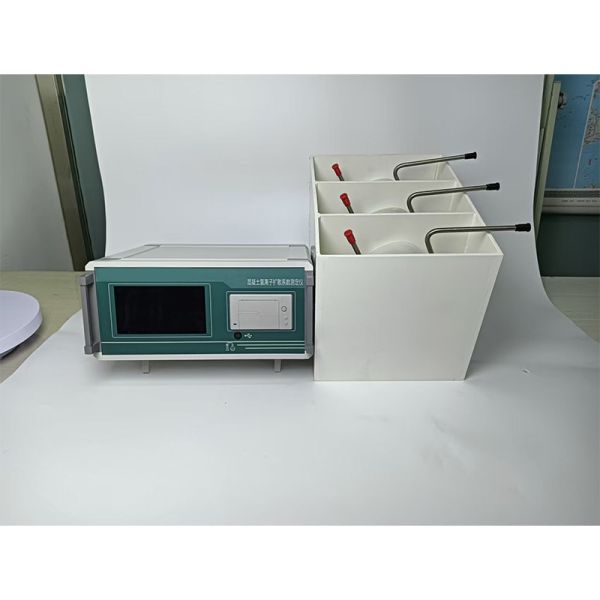

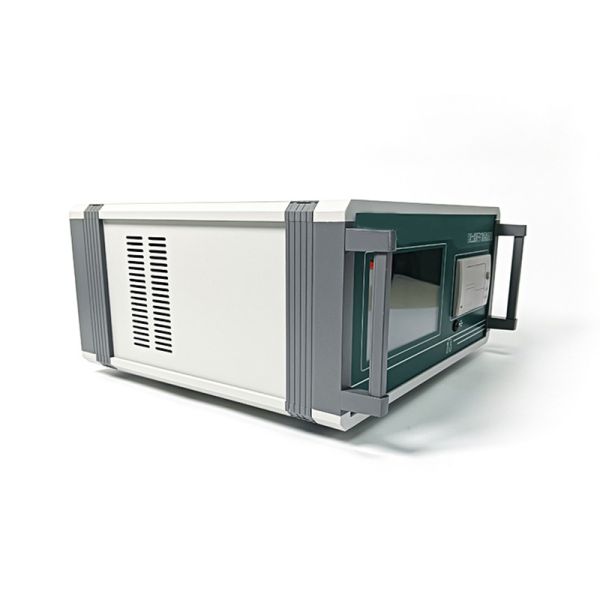

NT BUILD 492 Concrete Chloride Ion Diffusion Coefficient Tester
NT BUILD 492 Concrete Chloride Ion Diffusion Coefficient Tester
NT BUILD 492 Concrete Chloride Ion Diffusion Coefficient Tester
NT BUILD 492 Concrete Chloride Ion Diffusion Coefficient Tester
NT BUILD 492 Concrete Chloride Ion Diffusion Coefficient Tester
NT BUILD 492 Concrete Chloride Ion Diffusion Coefficient Tester
NT BUILD 492 Concrete Chloride Ion Diffusion Coefficient Tester
NT BUILD 492 Concrete Chloride Ion Diffusion Coefficient Tester
NT BUILD 492 Concrete Chloride Ion Diffusion Coefficient Tester
NT BUILD 492 Concrete Chloride Ion Diffusion Coefficient Tester
Specifications
Brand Name :
GOLD
Model Number :
GD-NT BUILD 492
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1set
Price :
USD 1500-2000/set
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
5 Set per 30 days
Delivery Time :
30days
Packaging Details :
Standard Wooden Case
Name :
Concrete Chloride Ion Diffusion Coefficient Tester
Standard :
NT BUILD 492
Test channels :
6 channels, 9 channels, 12 channels, optional
Output current range :
0~400 mA
Output current accuracy :
+/-1mA
Temperature accuracy :
+/-1centigrade
Output voltage :
0~60V (+/-0.1V) DC (adjustable)
Output Power Voltage :
220V+/-10 /50Hz AC
Description
NT BUILD 492 Concrete Chloride Ion Diffusion Coefficient Tester

The NT BUILD 492 Concrete Chloride Ion Diffusion Coefficient Tester quantitatively evaluates concrete's resistance capacity to chloride ion diffusion. Based on DuraCrete unsteady electromigration test theory, this equipment provides essential parameters for designing and assessing the durability of concrete structures in chloride ion erosion environments.

This tester is suitable for concrete specimens with maximum aggregate size not exceeding 25mm (typically not more than 20mm), whether laboratory-produced or core samples. The resulting data serves as a foundation for concrete durability mix design in chloride environments and for quality inspection and assessment.

Compliance Standards
  • NT BUILD 492 Chloride Migration Coefficient from Non-Steady-State Migration Experiments
  • EU Project CHLORTEST G6RD-CT-2002-00855
  • CEN TC 51 (CEN TC 104)/WG12/TG5
  • Guide to Durability Design and Construction of Concrete Structures
  • CCES-01-2004 Standard for test methods of long-term performance and durability of concrete
NT BUILD 492 Concrete Chloride Ion Diffusion Coefficient Tester
Technical Specifications
Test Channels 6, 9, or 12 channels selectable
Temperature Data ±0.2℃
Output Voltage DC 0-60V adjustable (±0.1V), 12-bit adaptive voltage regulation technology
Input Power Supply Voltage AC220V±10/50Hz
Core 32-bit embedded ARM core

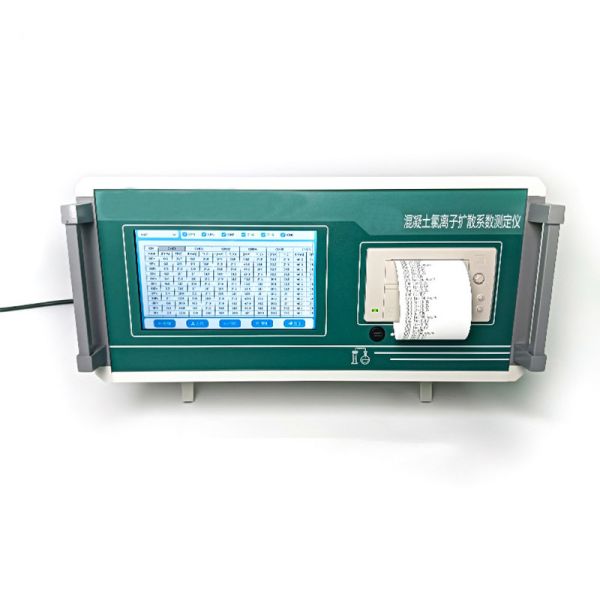

LCD Display 7-inch industrial touch screen
Voltage Regulation Mode Adaptive voltage regulation mode
NT BUILD 492 Concrete Chloride Ion Diffusion Coefficient Tester
Key Features
  • 0-60V adjustable voltage with short circuit auto-protection and automatic control of the entire electric migration process
  • Embedded computer control with power outage data storage, advanced technology, and reliable high-accuracy performance
  • LCD display with real-time display/print and analysis functions; can operate independently from PC
  • Standard RS232 serial communications with fully automatic PC connection software for data monitoring
  • Built-in analysis and calculation functions; automatically computes test results after parameter input
  • Automatic short circuit protection to prevent equipment damage
  • High-precision imported material fixtures for easy and smart operation
  • Simultaneous testing capability for multiple concrete blocks (6, 9, or 12 at once)
  • Includes latest smart-in-one vacuum saturation machine
NT BUILD 492 Concrete Chloride Ion Diffusion Coefficient Tester
Experimental Procedure
  1. Cut concrete sample into cylindrical test blocks (100mm diameter, 50±2mm thickness)
  2. Clean test blocks using ultrasonic cleaning
  3. Install cleaned sample on specimen fixture, inject test solution, and connect to test host
  4. Activate SY-RCM chloride migration coefficient tester for electromigration experiments
  5. After electromigration, split sample axially and spray silver nitrate on the split surface
  6. Input data into host for automatic calculation of channel migration coefficient
